Product Advantage:

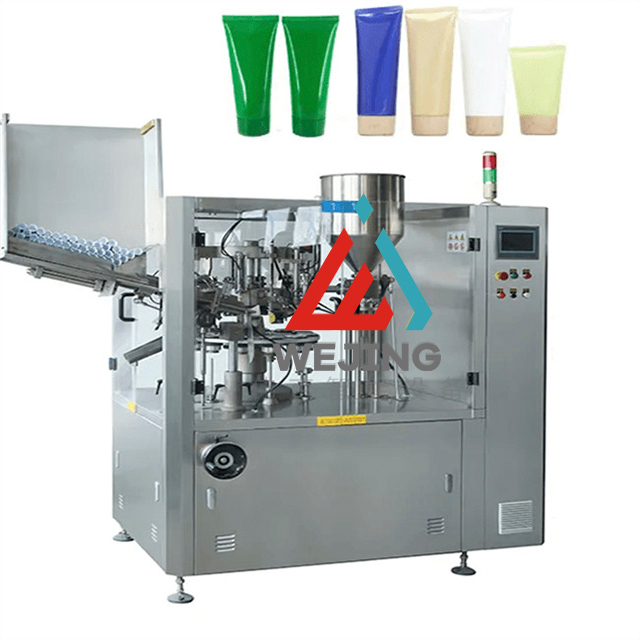

1. Precision Tube Orientation: The tube filling and sealing machine ensures accurate tube alignment during the filling and sealing process, minimizing misalignment and ensuring consistent and professional packaging.
2. Customized Tube Shapes: The machine offers the capability to fill and seal tubes with unique shapes, such as oval or square, providing innovative packaging options for products and enhancing visual appeal on store shelves.
3. Integrated Coding and Serialization: With advanced coding capabilities, the machine enables the printing of unique identifiers, serial numbers, or QR codes on tubes, facilitating traceability and anti-counterfeiting measures.
4. Advanced Capping Mechanism: The machine incorporates a sophisticated capping system that ensures secure closure of tubes, preventing leakage and maintaining product freshness and quality.
5. Multi-Functionality: In addition to filling and sealing, the machine can be equipped with additional modules for labeling, batch coding, or product inspection, offering a comprehensive packaging solution in a single system.
Technical Parameters:
Model | WJ—400L | WJ—400F |
Material of hose | Metal tube, aluminum tube | Plastic pipe, composite pipe |
Hose diameter | φ10—φ50 | φ15—φ60 |
Hose length | 60—250（customizable） | 60—250（customizable） |
Filling volume | 5—400ml/piece（adjustable） | 5—400ml/piece（adjustable） |
Accuracy | ≤±1% | ≤±1% |
Production capacity (pcs/minute) | 30—50（adjustable） | 30—50（adjustable） |
Working pressure | 0.55—0.65mpa | 0.55—0.65mpa |
Motor Power | 2kw(380V/220V 50Hz) | 2kw(380V/220V 50Hz) |
Heat sealing power | 3kw | 3kw |
External dimensions | 2620*1020*1980mm | 2620*1020*1980mm |
Weight | 1100kg | 1100kg |
Product Uses:

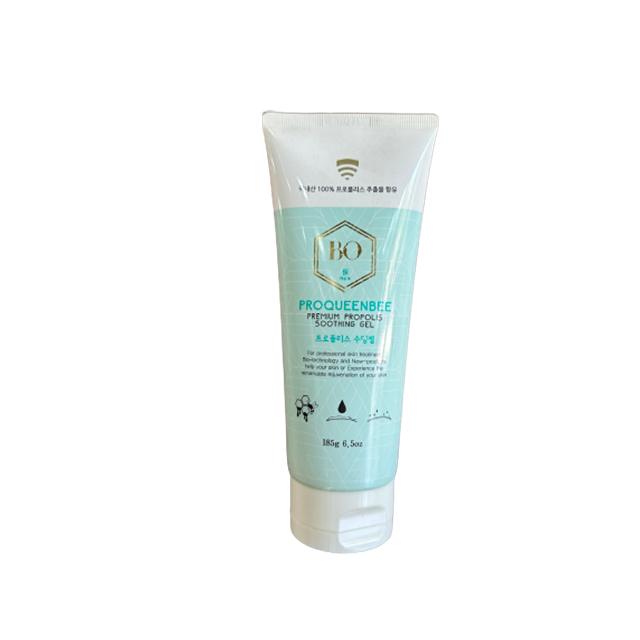

1. Beauty and Skincare Samples: The tube filling and sealing machine is utilized for packaging sample-sized tubes of beauty and skincare products, allowing brands to provide customers with trial-sized products for testing and promotional purposes.
2. Pharmaceutical Creams and Gels: It finds application in packaging pharmaceutical creams, gels, and topical medications, ensuring accurate dosing and providing convenient and hygienic packaging for medical use.
3. Art and Craft Supplies: The machine is used for packaging art and craft supplies such as paints, adhesives, glues, and pigments in tubes, offering precise dispensing and ensuring product longevity.
4. Automotive Care Products: It is employed for packaging automotive care items like car polishes, waxes, sealants, and adhesives, providing convenient and accurate dosing for vehicle maintenance and detailing.
5. Pet Care Products: The machine is utilized for packaging pet care items such as pet shampoos, conditioners, grooming creams, and paw balms, ensuring easy and mess-free application for pet owners.
Product Operate Guide:
1. Cleaning and Sanitization: Prior to operating the tube filling and sealing machine, thoroughly clean and sanitize all contact surfaces and components to ensure hygienic packaging and prevent cross-contamination.
2. Material Preparation: Prepare the filling material, ensuring it is properly mixed, filtered, or heated, depending on the product requirements, to maintain consistency and facilitate smooth filling.
3. Tube Inspection: Before loading tubes, visually inspect them for any defects, such as dents, cracks, or misshapen ends, and remove any damaged tubes to prevent issues during filling and sealing.
4. Machine Calibration: Periodically calibrate the machine's filling and sealing parameters, such as fill volume, seal temperature, and pressure, to ensure accuracy and consistency throughout the production process.
5. Operator Training: Provide comprehensive training to operators on the proper operation of the machine, including safety procedures, troubleshooting techniques, and routine maintenance tasks, to optimize performance and minimize errors.
FAQ:
1. Can the machine handle tubes with different sealing methods?
Yes, tube filling and sealing machines can utilize various sealing methods, including hot air sealing, ultrasonic sealing, or crimping, depending on the machine's capabilities and the specific requirements of the product being packaged.
2. Does the machine require compressed air or other utilities to operate?
Some machines may require a compressed air supply or other utilities, such as electricity or water, for certain functions like tube feeding, sealing, or cleaning. Consultthe machine's specifications or user manual for specific utility requirements.
3. Can the machine be customized to meet specific production needs?
Yes, tube filling and sealing machines can often be customized to meet specific production requirements, such as integrating additional features, adjusting filling volumes, or accommodating unique tube sizes or materials.
4. What is the typical lifespan of a tube filling and sealing machine?
The lifespan of the machine depends on various factors, including usage, maintenance, and the quality of components. With proper care and maintenance, a well-built machine can last for many years.
5. Can the machine be used for contract packaging or third-party manufacturing?
Yes, tube filling and sealing machines are commonly used for contract packaging or third-party manufacturing services, allowing companies to outsource their product packaging needs to specialized facilities equipped with these machines.
