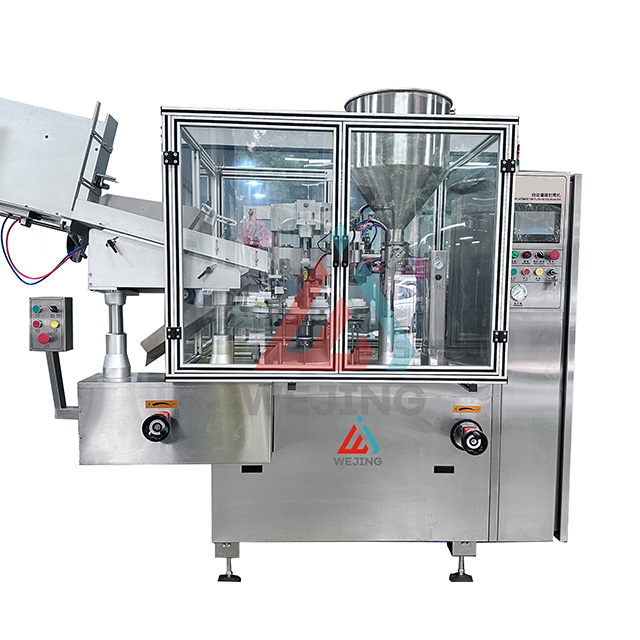

Product characteristics:
High-grade night crystal display programming controller and button combined operation video screen, a comprehensive grasp of the equipment stepless speed regulation, parameter setting, output statistics, air pressure indication, fault display and other operating conditions, so that the operation is simple and humanized.
Automatic complete pipe supply, marking, inert gas filling (optional), filling, sealing, coding, finished product export process.
The high-precision calibration system reduces the range of color difference between the tube body and the color label.
The adjustment part is external and the position is digital display, and the adjustment is fast and accurate (used in multi-specification and multi-variety production).
Machine, light, electricity, gas integration, to achieve no tube does not fill, supply pipe is not in place, low pressure, automatic display (alarm); When opening the protective door, it can automatically stop and other automatic functions.
Technical Parameters:
Model | WJ—400F |
Material of hose | Plastic pipe, composite pipe |
Hose diameter | φ15—φ60 |
Hose length | 60—250（customizable） |
Filling volume | 5—400ml/piece（adjustable） |
Accuracy | ≤±1% |
Production capacity (pcs/minute) | 30—50（adjustable） |
Working pressure | 0.55—0.65mpa |
Motor Power | 2kw(380V/220V 50Hz) |
Heat sealing power | 3kw |
External dimensions | 2620*1020*1980mm |
Weight | 1100kg |
Product Uses：
Automatic filling and sealing machine can be applied to many industries! Such as food, beverage, medicine, cosmetics, daily chemical supplies and so on. It can fill a variety of liquids, colloids, pastes and other products, but also according to different needs for different specifications and shapes of filling and sealing
Product Operate Guide：
First, make sure the power to the device is connected and all the components are installed.
Then, according to the product you want to fill, adjust the filling amount and filling speed.
Next, put the product into the filling tank, press the start button, and the equipment will automatically complete the filling and sealing work.
During the filling process, you can monitor the filling of the product at any time through the observation window.
After filling, turn off the power of the equipment, clean the filling tank and seal the tail, and prepare for the next use
FAQ：
Q1: Is it easy to operate?
A1: Of course, this device uses a fully automatic control system, just need to press the start button, it will automatically complete the filling and sealing work, very simple to understand.
Q2: What is the filling accuracy of the automatic filling and sealing machine?
A2:The automatic filling and sealing machine uses a high-precision filling system to achieve high-precision filling, and the error range is usually within plus or minus 1%.
Q3: What are the sealing methods of automatic filling and sealing machine?
A3: The sealing methods of the automatic filling and sealing machine mainly include heat sealing, embossing sealing, folding sealing, twisting sealing and other ways, which can be selected according to the different needs of the product.
Q4: Is the automatic filling and sealing machine easy to maintain?
A4The structure of the automatic filling and sealing machine is reasonable, easy to maintain, and only needs to clean, lubricate and check the equipment regularly.
