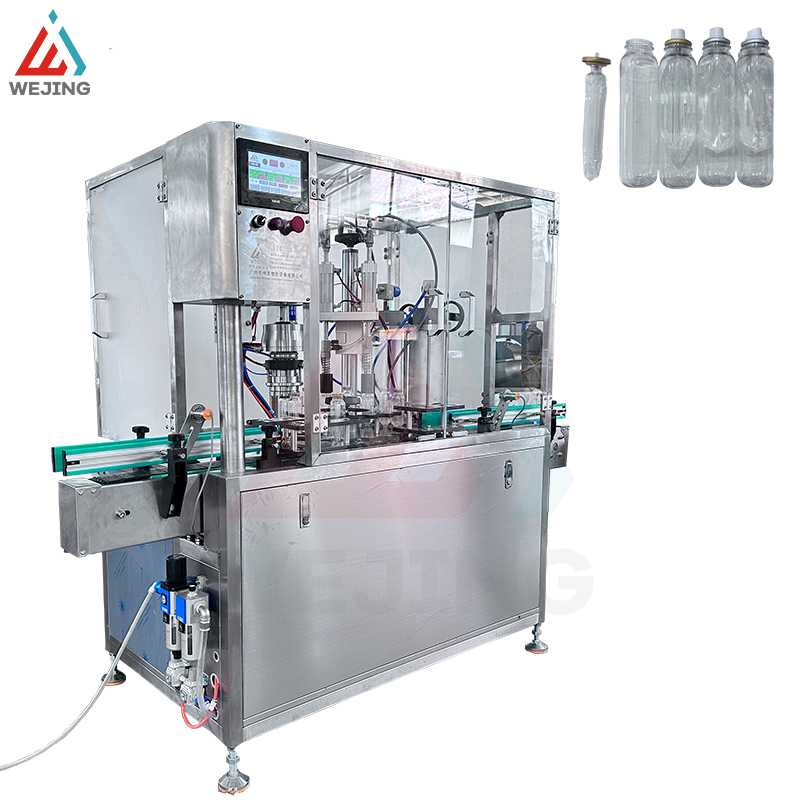

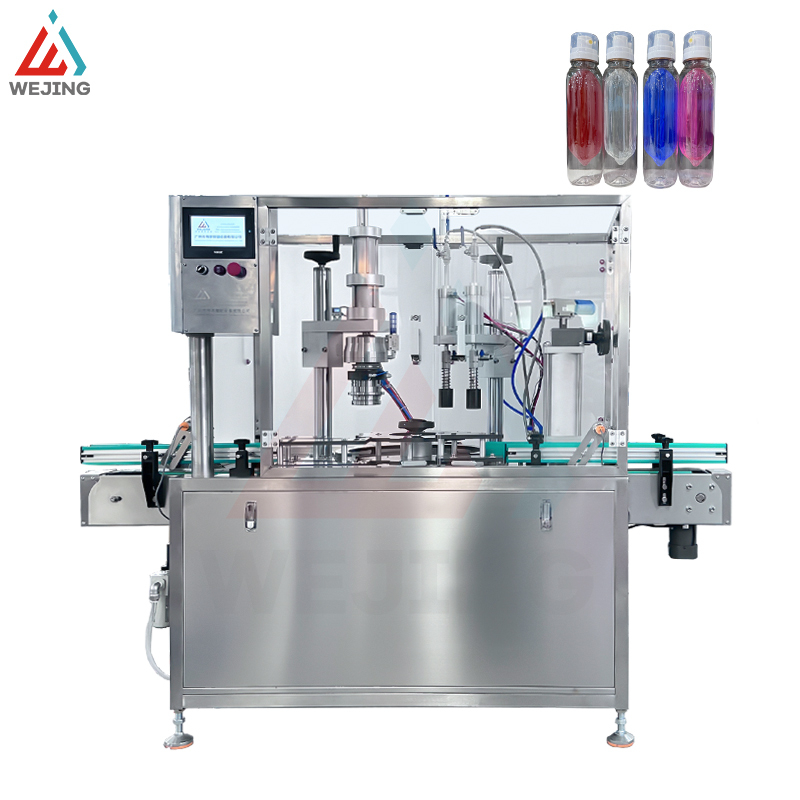

2025 New machine WJEZ-30 automatic aerosol bottle filling Outer-crimping machine

Share to:

WJEZ-30 Automatic BOV Aerosol Filling Machine has 1 gas filling&outer-crimping head and 2 liquid filling heads, filling capacity 10-500ml,which can be used for filling water-based products. The machine can be equipped with can feeder, nozzle presser and cap presser to form an automatic line.

Availability:

Quantity:



Inquire Add to Basket

Model:
WJEZ-30
Brand:
Wejing

Product Description

|

Parameters

1	Filling capacity (cans/min)	20-30cans/min
2	Liquid filling volume (ml)	10-500ml/head
3	Gas filling accuracy	≤±1%
4	Liquid filling accuracy	≤±1%
5	Applicable cans diameter (mm)	35-70 ( can be customized)
6	Applicable cans height (mm)	70-300 ( can be customized)
7	Applicable valve (mm)	25.4 (1 inch)
8	Propellant	N2, compressed air
9	Max gas consumption (m3/min)	6m3/min
10	Power (KW)	AC 380V/50HZ
11	Air source	0.6-0.7Mpa

|Machine details

Automatic BOV Aerosol filling Machine (2)

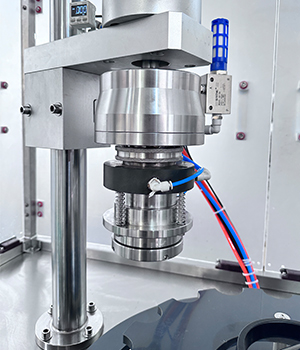

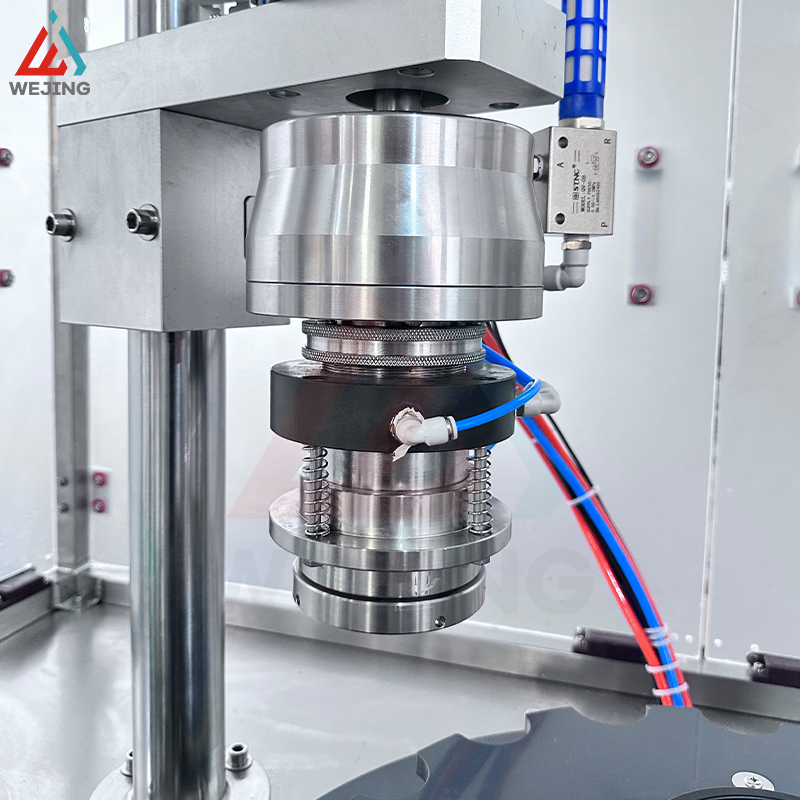

Gas filling& outer-crimping

Equipped with photoelectric positioning to ensure the precise alignment of aerosol valve and bottle mouth.

Be suitable for φ35~70mm bottle neck, cylinder drive to realize the press-fit.

Automatic BOV Aerosol filling Machine (3)

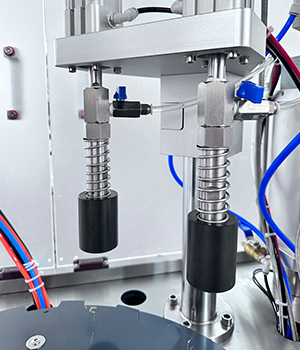

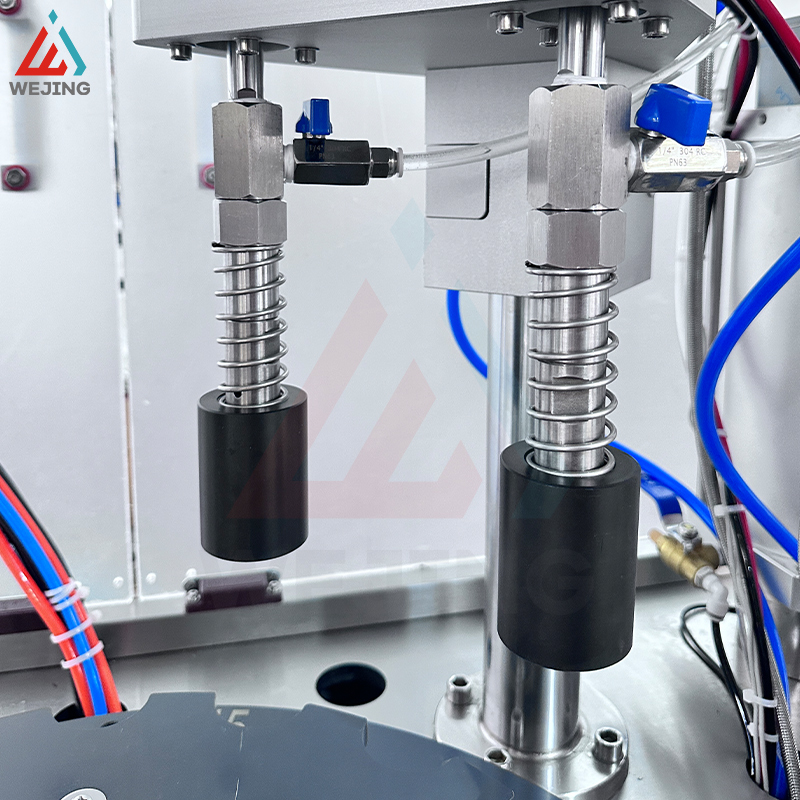

Liquid Filling

Filling error≤±1%

BOV packaging of the product, the liquid is injected into the bag under high pressure and isolated from the external projectile gas, ensuring hygiene and safety.

Automatic BOV Aerosol filling Machine (4)

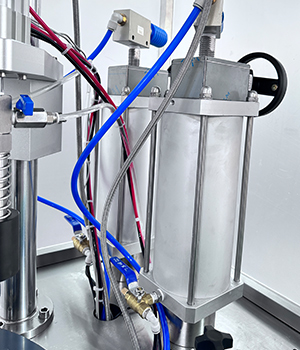

Cylinder

Material contact parts are 304 stainless steel

Automatic BOV Aerosol filling Machine (5)

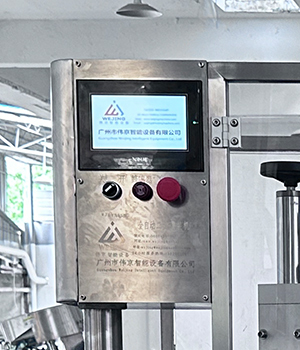

PLC control

PLC control, realizing the safety logic of “no filling without can, no sealing without pressure”.

Touch screen operation interface, programmable parameters.

Automatic BOV Aerosol filling Machine (6)

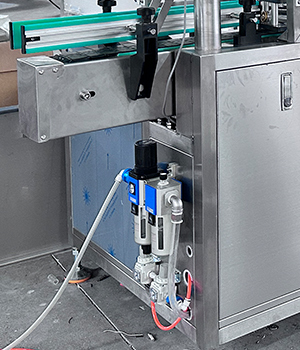

Water and oil separator

Filter water and oil in compressed air to protect pneumatic components.

Automatic BOV Aerosol filling Machine (1)

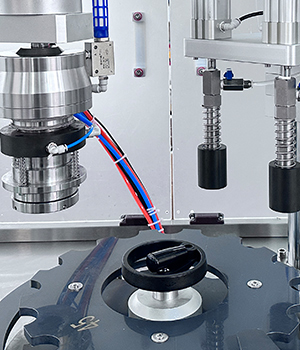

Plate

Star plate can be customized with different molds

|Working process

(1)Bottle placing : The operator places the empty bottle in the work station fixture, triggering the photoelectric positioning signal.

(2)Gas Filling and outer-crimping: The cylinder-driven chuck is tightened to complete the sealing of the aerosol valve, vacuumed and then filled with ejectant to ensure stable pressure inside the can.

(3)Liquid filling: Guided filling system to avoid dripping .

(4)Finished product output: automatic mold release, ready for the next cycle.
