Product Advantage:

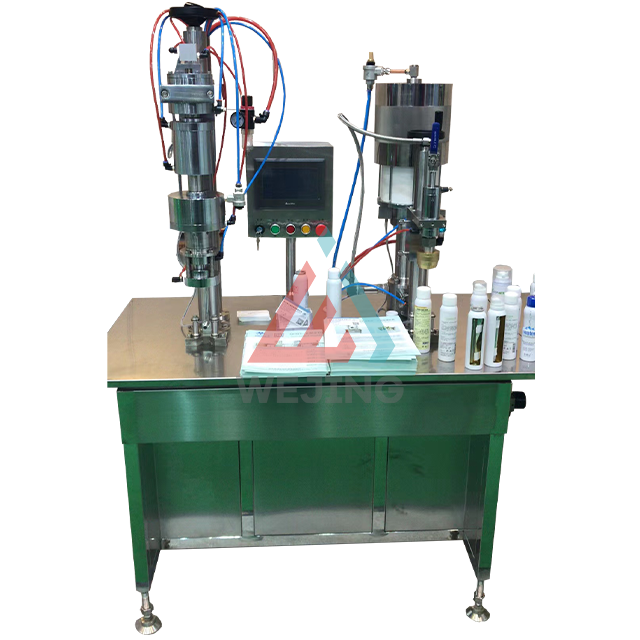

This bag on valve aerosol filling machine offers a multitude of benefits, including rapid filling speed, effortless operation, precise measurement control, exceptional sealing integrity, and customizable inflation pressure. Its advanced features ensure superior performance, making it a top choice for various industries.
Technical Parameters:
Filling capacity (cans/min) | 10-15 cans/min |
Liquid filling volume (ml) | 30-300ml |
Gas filling accuracy | ±0.03Mpa |
Liquid filling accuracy | ≤±1% |
Applicable cans diameter (mm) | 35-70 ( can be customized) |
Applicable cans height (mm) | 70-330 ( can be customized) |
Applicable valve (mm) | 25.4 (1 inch) |
Propellant | N2, compressed air |
Max gas consumption (m3/min) | 1m3/min |
Power (KW) | AC 220V/50HZ |
Air source | 0.6-0.7Mpa |
Dimensions | 1200×650×1670 mm |
Weight | 255 kg |
Configuration:
1. The workbench panel is made of matte 304 stainless steel plate, and the material in contact with the raw materials is 304 stainless steel. In special cases, 316 stainless steel can be customized.
2. All other stainless steel materials are 304 type.
3. The touch screen PLC is from Xinjie brand, the solenoid valve is from South Korea's F-TEC brand, and the pneumatic components are from Italy Metalwork and Japanese SMC brands.
FAQ:
Q: Is the semi-automatic Bag on Valve filling machine suitable for filling olive oil spray products?
A: Yes, our machine is specifically designed for filling olive oil spray products, ensuring efficient and controlled production.
Q: Can the machine handle different sizes and shapes of containers?
A: Absolutely. Our machine is designed to accommodate a wide range of container sizes and shapes, providing versatility and adaptability in production.
Q: How accurate is the filling process?
A: The machine is equipped with advanced technology that ensures precise volume control, resulting in accurate and consistent filling of olive oil spray products.
Q: Is the machine easy to operate and maintain?
A: Yes, our semi-automatic filling machine features user-friendly controls and a simple design, making it easy to operate and maintain. Regular maintenance is hassle-free.
Q: What safety features are included in the machine?
A: Our semi-automatic filling machine is equipped with safety measures such as leak detection systems and emergency stop buttons to ensure a safe working environment.
