1.Product Overview

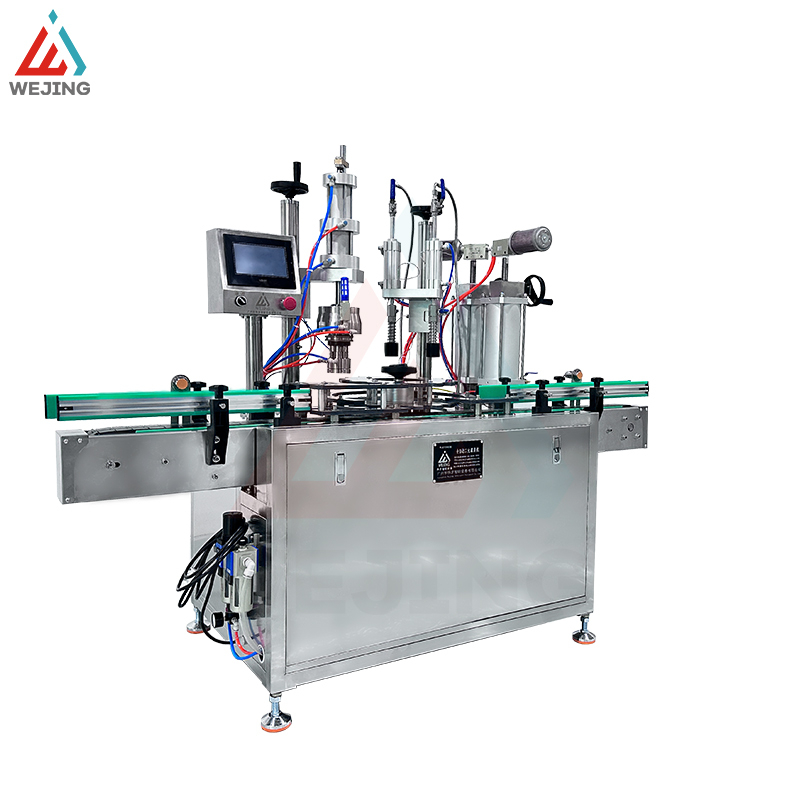

WJEY-30S Automatic BOV Aerosol Filling Machine has 1 gas filling&seal head and 2 liquid filling heads, filling capacity 10-500ml, which can be used for filling water-based products, such as water-based fire extinguishers, moisturizing sprays, edible oil sprays, etc. The machine can be combined with a nozzle presser to form an automatic line. The machine can be equipped with bottle trimmer, nozzle presser and cap presser to form an automatic line.
2.Parameters
1 | Filling capacity (cans/min) | 20-30cans/min |
2 | Liquid filling volume (ml) | 10-500ml/head |
3 | Gas filling accuracy | ≤±1% |
4 | Liquid filling accuracy | ≤±1% |
5 | Applicable cans diameter (mm) | 35-70 ( can be customized) |
6 | Applicable cans height (mm) | 70-300 ( can be customized) |
7 | Applicable valve (mm) | 25.4 (1 inch) |
8 | Propellant | N2, compressed air |
9 | Max gas consumption (m3/min) | 6m3/min |
10 | Power (KW) | AC 380V/50HZ |
11 | Air source | 0.6-0.7Mpa |

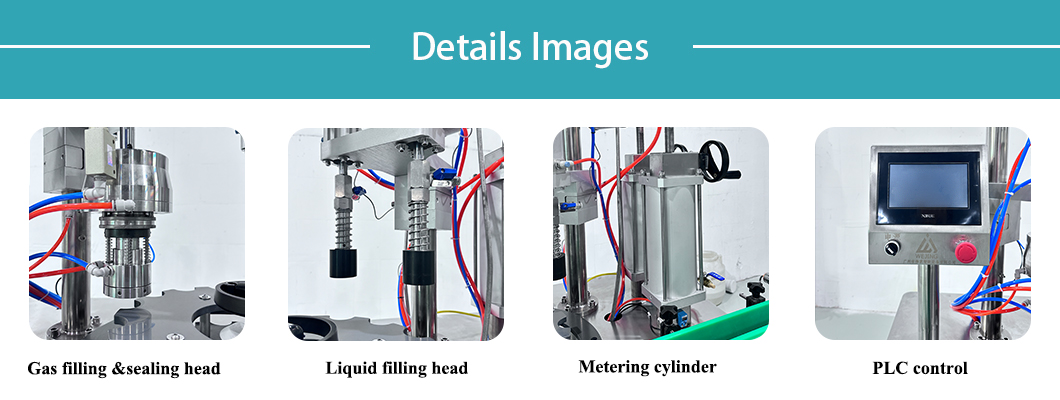

3.Product Details
4.Feature
(1) Stable and reliable work, less failure, long life
(2) High efficiency, labor saving
(3)High precision and stable filling quality.
(4) The main air-control components, sealing ring using foreign high-quality products, due to good reliability and wear resistance
(5)The conveyor belt of the production line adopts explosion-proof variable-speed motor, and the rest of the production line adopts pneumatic control, which has high safety.
5.Packing and delivery
6.FAQ
1. Are you a manufacturer?
Yes, we are a professional manufacturer specializing in designing equipment such as aerosol filling equipment, emulsifying pots and mask filling machines; Our self-developed aerosol filling machine adopts advanced automation technology, featuring high precision, high efficiency and low loss.
2.Can you provide design service?
Yes, we provide OEM and ODM services, with rich experience in understanding customer needs and arranging development .
3.How to deal with quality problems?
If there is any quality problem with the goods, we will solve it positively to make sure the customers are full.
