Function and Design：

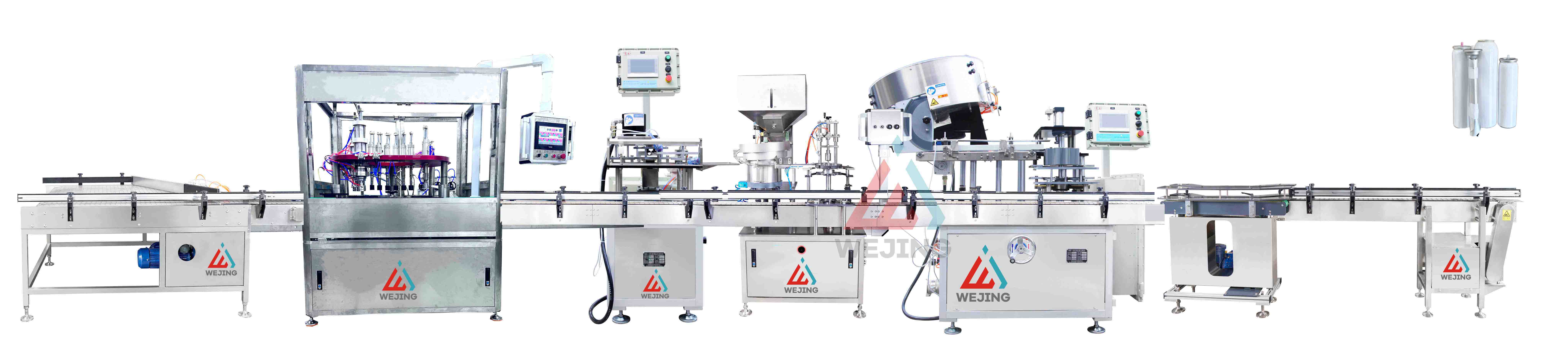

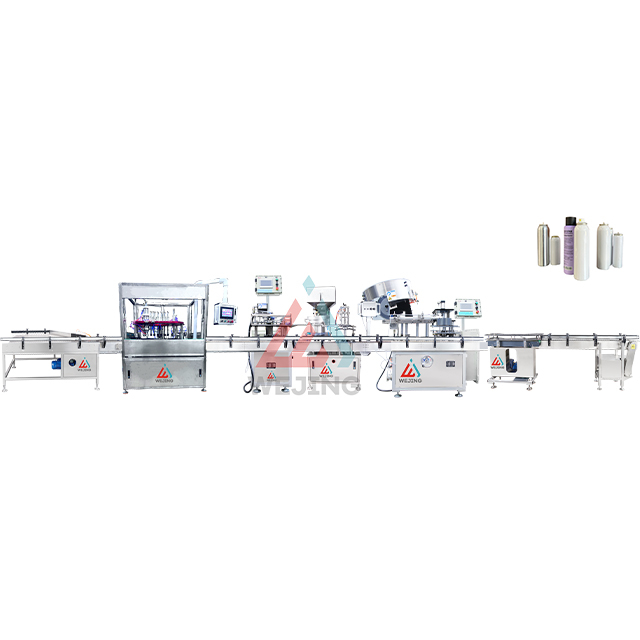

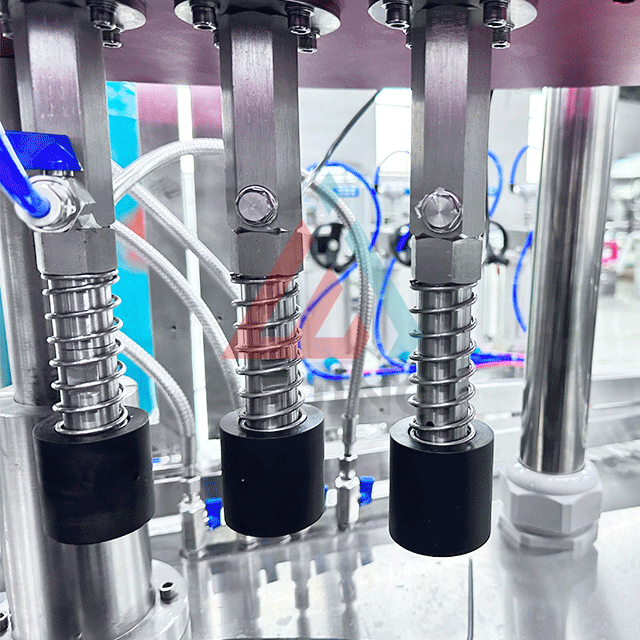

This machine is specifically engineered to handle the filling of a wide range of aerosol products, including sprays, foams, and liquids. It features a user-friendly interface with a touchscreen display that allows operators to easily control and monitor the filling process. The machine is equipped with multiple filling nozzles, enabling the simultaneous filling of multiple cans.
Technical Parameters：
Filling capacity (cans/min) | 45-60cans/min |
Liquid filling volume (ml) | 10-300ml/head |
Gas filling accuracy | ≤±1% |
Liquid filling accuracy | ≤±1% |
Applicable cans diameter (mm) | 35-70 ( can be customized) |
Applicable cans height (mm) | 70-300 ( can be customized) |
Applicable valve (mm) | 25.4 (1 inch) |
Propellant | N2, compressed air |
Max gas consumption (m3/min) | 6m3/min |
Power (KW) | AC 380V/50HZ |
Air source | 0.6-0.7Mpa |
Precision and Accuracy：
One of the key advantages of the Automatic Aerosol Filling Machine is its exceptional precision and accuracy. It employs advanced sensors and control systems to ensure consistent filling volumes, minimizing waste and maximizing product quality. The machine can handle both liquid and gaseous substances, and it offers precise dosing capabilities to meet specific product requirements.
FAQ：
1. What is the Automatic Aerosol Filling Machine?
The Automatic Aerosol Filling Machine is a fully automated equipment used for the filling and sealing of aerosol cans. It integrates various functions such as can feeding, liquid filling, gas charging, valve insertion, and cap crimping.
2. What are the advantages of the Automatic Aerosol Filling Machine?
The Automatic Aerosol Filling Machine offers high filling accuracy, high production efficiency, and easy operation. It can significantly reduce labor costs and ensure the stability and consistence of product quality.
3. What types of liquids can the Automatic Aerosol Filling Machine handle?
The Automatic Aerosol Filling Machine can handle a variety of liquids, including but not limited to paints, cosmetics, cleaning agents, and pesticides. It supports different viscosity and density liquids.
4. How does the Automatic Aerosol Filling Machine ensure safety during operation?
The Automatic Aerosol Filling Machine is designed with multiple safety protection mechanisms, such as leak detection, overpressure protection, and emergency stop buttons. These mechanisms ensure the safety of operators and the integrity of the filling process.
5. Can the Automatic Aerosol Filling Machine be customized according to specific production needs?
Yes, the Automatic Aerosol Filling Machine can be customized according to customer requirements. Parameters such as production capacity, can size, and liquid filling volume can be adjusted to meet specific production needs.
