Product Advantage：
Safety and environmental benefits of BoV aerosols:
1. No need for flammable propellants
2. Hygienic and sterilisable
3. Used with eco-friendly air or nitrogen
4. Less need for preservatives
Consumer benefits of BoV aerosols:
1. Up to 100% product emptying
2. Longer shelf life with less preservatives
3. Even and controlled spraying pattern for optimal result
4. No pumping motion needed
5. Can be used at all angles
6. Reduced spray noise
7. Less-chilling product discharge
Production and distribution benefits of Bov aerosols:
1. Longer shelf life for oxygen-sensitive products
2. Effective filling process
3. Suitable for both liquid and viscous products
4. Can be used with standard actuators and aerosol cans.
Technical Parameters:
Filling capacity (cans/min) | 45-60cans/min |
Liquid filling volume (ml) | 10-300ml/head |
Gas filling accuracy | ≤±1% |
Liquid filling accuracy | ≤±1% |
Applicable cans diameter (mm) | 35-70 ( can be customized) |
Applicable cans height (mm) | 70-300 ( can be customized) |
Applicable valve (mm) | 25.4 (1 inch) |
Propellant | N2, compressed air |
Max gas consumption (m3/min) | 6m3/min |
Power (KW) | AC 380V/50HZ |
Air source | 0.6-0.7Mpa |

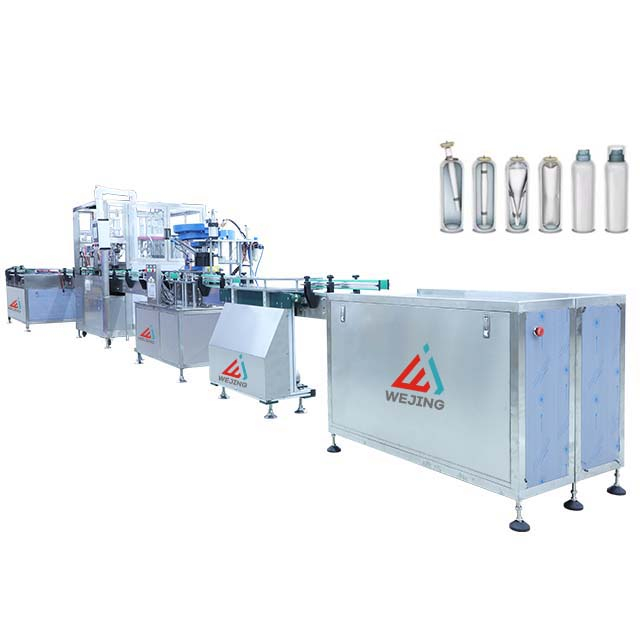

Product Uses:
The production line with high efficiency, high precision, and suit for all kinds of universal 1 inch can'sneck for Tin can, aluminum can. The Propellant can be LPG, F12, DME, N2, etc. also the machine can be used for liquid filling in food.chemical.cosmetic,pharmaceutical industries.Filling water-based aerosols,disinfect, fire extinguishing agent,pepper spray,shave foam,cosmetic spray,photocatalyst with BOV packages.
FAQ:
1. What level of precision does the filling operation carried out by a bag-on-valve machine reach?
Bag-on-valve filling machinery demonstrates an outstanding precision in fill quantities, guaranteeing consistent and reliable dosage and minimizing differences during product distribution.
2. Is the bag-on-valve technology environmentally friendly?
Yes, the bag-on-valve technology is regarded as eco-friendly since it can decrease reliance on propellants and minimize product waste, thereby presenting a more environmentally friendly packaging alternative.
3. Are bag-on-valve filling machines capable of dealing with both fluid and thick formulations?
Absolutely. These machines are engineered to manage a broad spectrum of product consistencies, facilitating the filling process for both fluid and thick substances. An illustration could be the filling of both liquid cosmetics and thick creams using the same bag-on-valve filling machine.
4. Do consumers have a sense of security when using products packaged through the bag-on-valve method?
Yes, without a doubt. The bag-on-valve method ensures consumer safety by establishing an isolation layer between the product and any propellant or compressed air, preserving the purity of the product and considerably reducing the possibility of contamination.
5. What is the time required to fill a bag with a bag-on-valve filler?
The filling duration varies based on factors such as the thickness of the product, the volume to be filled, and the speed of the machinery. Nevertheless, bag-on-valve filling systems are configured for rapid and efficient filling cycles.
