Easy Operate Aerosol Product Filling Equipment Full Automatic Bov Aerosol Filling Machine

Share to:

This machine adopts PLC+touch screen control, servo and precision planetary reducer drive, which can achieve precise digital control. This machine combines the sealing filling of two heads and liquid filling on one workstation, which can continuously feed two positions at once. It has the advantages of faster speed, more accurate positioning, and more balanced operation. When there are insufficient or full cans at the outlet, the machine will automatically stop; When we open one of the doors, it will also stop after filling is completed. When a fault occurs, we can visually detect the source of the fault by checking the monitoring screen on the touch screen. Thus truly achieving automatic filling.

Availability:

Quantity:



Inquire Add to Basket

Model:
WJER60S
Brand:
Wejing

Product Description

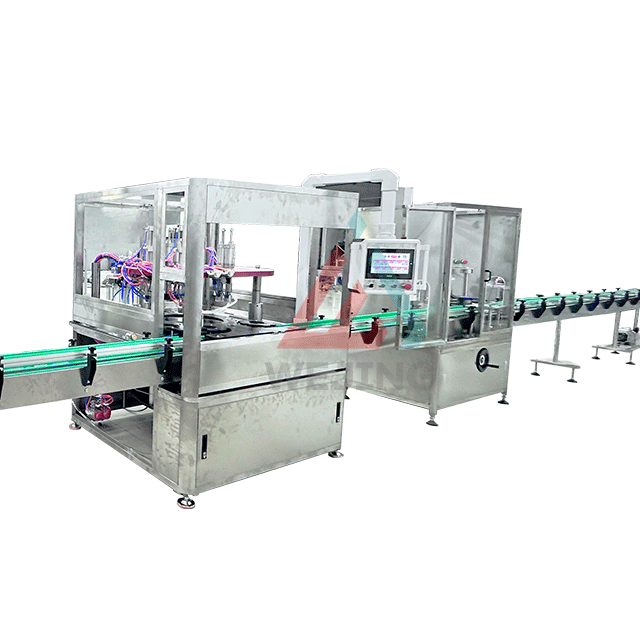

bag on valve aerosol filling machine

Product Advantages：

1. High Precision and Accuracy: The BOV filling machine is designed with advanced technology and sensors to ensure precise and accurate filling of liquids or gases into containers. This helps to minimize waste, ensure consistent product quality, and meet regulatory standards.

2. High Efficiency and Speed: With its automated operation, the BOV filling machine can achieve high filling speeds, significantly increasing production efficiency. It can handle large volumes of containers quickly, reducing processing time and increasing throughput.

3. Versatile Application: The BOV filling machine can be used for a wide range of products, including beverages, chemicals, pharmaceuticals, and more. It offers flexibility in handling different container sizes, shapes, and types, making it suitable for diverse production requirements.

Technical Parameters：

Filling capacity (cans/min)	45-60cans/min
Liquid filling volume (ml)	10-300ml/head
Gas filling accuracy	≤±1%
Liquid filling accuracy	≤±1%
Applicable cans diameter (mm)	35-70 ( can be customized)
Applicable cans height (mm)	70-300 ( can be customized)
Applicable valve (mm)	25.4 (1 inch)
Propellant	N2, compressed air
Max gas consumption (m3/min)	6m3/min
Power (KW)	AC 380V/50HZ
Air source	0.6-0.7Mpa

Product Uses：

BOV filling machine is currently used to fill shaving gel, medical products, fire extinguishers, cosmetics and food. This production line has the characteristics of fast speed, high degree of automation, intelligence, stability and reliability. According to the client's budget, some workstations can be selected, such as automatic weight inspection machines, automatic water bath leak testing machines, automatic actuator pressing machines, and automatic capping machines.

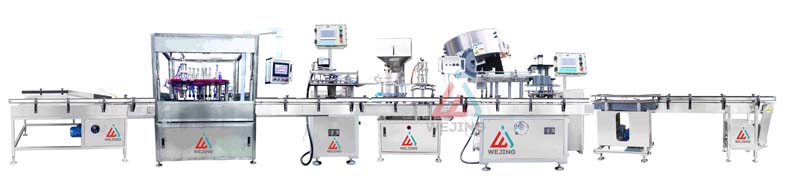

spray can filling machine

FAQ：

1. What is the maximum filling capacity of the BOV Filling Machine?

The maximum filling capacity depends on the specific model of the machine. Please refer to the product specifications or contact our sales team for more information.

2. Can the BOV Filling Machine handle different types of liquids?

Yes, the BOV Filling Machine is designed to handle a wide range of liquids, including but not limited to beverages, chemicals, and pharmaceutical formulations. It can be customized to accommodate specific liquid properties and viscosity.

3. Does the BOV Filling Machine come with a warranty?

Yes, we offer a comprehensive warranty on our BOV Filling Machines. The warranty period may vary depending on the model and configuration. Please consult our sales representative for detailed warranty information.

4. Can the BOV Filling Machine be integrated with other production lines?

Yes, the BOV Filling Machine is designed for easy integration with existing production lines. It can be seamlessly connected to other equipment such as conveyors, capping machines, and labeling systems to create a automated filling process.

5. How does the BOV Filling Machine ensure accuracy and precision?

The BOV Filling Machine utilizes advanced sensing and control technologies to ensure accurate and precise filling. It features automatic liquid level detection, flow control, and accurate quantitative feeding system, minimizing errors and ensuring consistent product quality.
