Product Advantage:
1. Increase an additional air cylinder to make the air supply more stable.
2. Improve the platform to make the operation more convenient.
3. Upgrade the gas pipeline and air pipeline to be more reasonable.
4. Add an extra air cylinder to make the air supply more stable.
Technical Parameters:
Capacity | 600-1200 cans/hr,depending on filing volume |
Liquid filling capacity | 30-500ml(can be choose) |
Gas filling capacity | 30-500ml(can be choose) |
Filling accuracy | ≤±1% |
Applicable can diameter | 40-70mm |
Suitable aerosol can height | 70-300mm |
Air source | 0.5-0.6Mpa |
| Size | 120*60*155cm(L*W*H) |
Detail Images:
1. Newly Upgraded with 4 Highlights: Through continuous upgrading and transformation of the product, it becomes more user - friendly and has more stable performance.

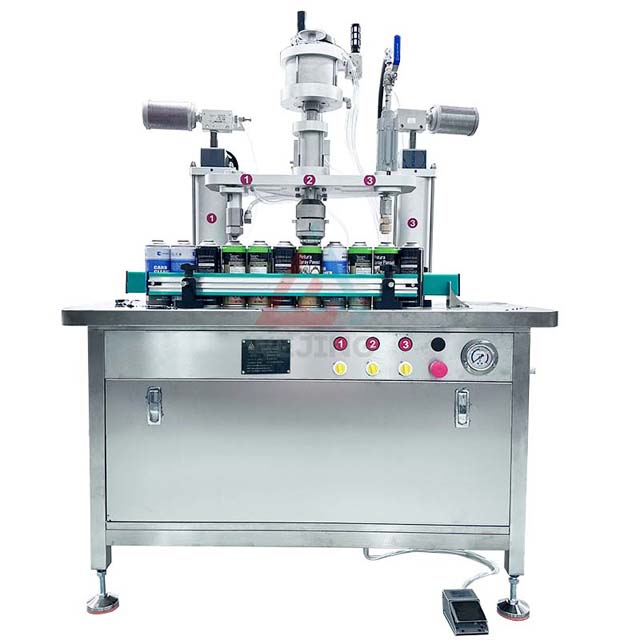

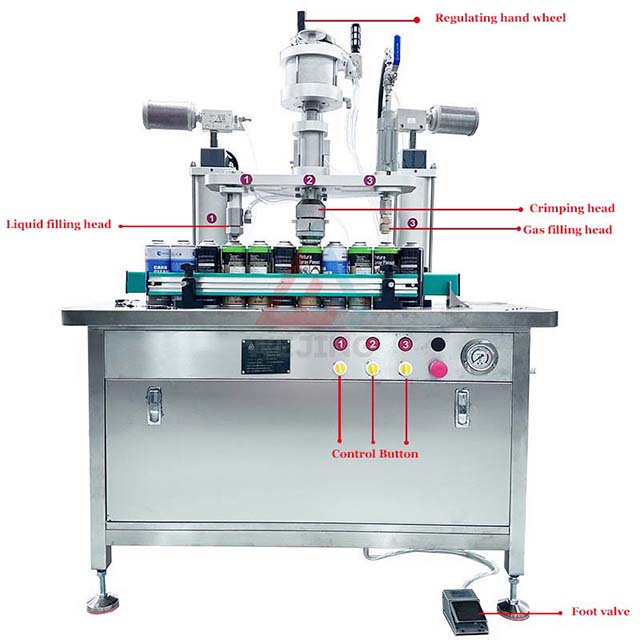

2. Three - in - One Filling Machine with Three Functions on One Workbench: The entire machine consists of four functional components: liquid filling, crimping, and gas filling.
3. Food - grade 304 Stainless Steel: It is safe, non - toxic, long - lasting, and easy to clean.
4. High - efficiency Pneumatic Bottle - pushing: Employ the cylinder to automatically push bottles instead of manual pushing. The bottles will move forward one by one automatically, which significantly enhances the efficiency.
5. Simple Panel for Easy Operation: There are four types of equipment switches along with a reset button and two pressure gauge displays.
6. Strong Adaptability for Extension to the Production Line: It can be furnished with a can - arranging machine, a valve - arranging & inserting machine, a crimping machine, a capping machine, a packing table, and other auxiliary equipment.
Features:

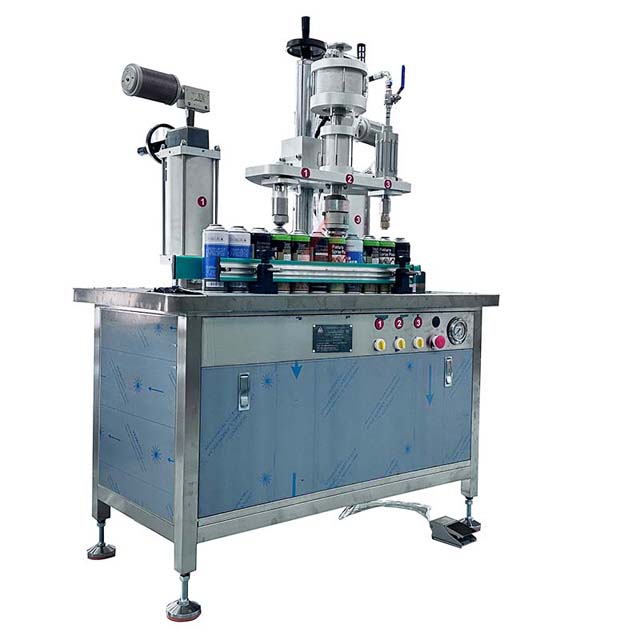

The three - in - one aerosol filling machine combines the functions of liquid irrigation, sealing, and inflation on one workbench. Just one person is needed to operate it in sequence to finish the production of conventional aerosols. This machine is safe, dependable, easy to operate and maintain, and takes up a small area. It is an economical piece of equipment for aerosol product production.
Through improvement, optimization, and integration of the original semi - automatic aerosol filling machine, a production line type is formed. The semi - automatic filling, sealing, and aerating machines are installed on a workbench, and the filler, sealer, and inflator are controlled separately. In accordance with the process sequence, linear production transfer is carried out to complete all actions. This utility model is a semi - automatic applicable device for aerosol product production.
This machine has a fast aeration speed, accurate filling volume, good sealing tightness, and adjustable aeration pressure. It is specifically designed for single - gas filling and aerosols. It also supports secondary pressurized filling of multi - component gases such as compressed air, nitrogen, carbon dioxide, and oxygen. The sealing machine and liquid filling machine are optional.
Product Uses:
It can be used for filling various media and producing different aerosol chemical products. Professional technical design saves both labor and time. The filling head is independently controlled and non - mechanical, and the inflatable head is precisely guided, which is highly efficient and has low air consumption. It is widely used in experimental household production and chemical laboratory equipment, such as aerosol products in the fields of food, medicine, hygiene, automobiles, environmental protection, fire fighting, and daily necessities.
FAQ:
1. What are the three functions of this machine?
The three functions are liquid filling, sealing, and inflating. These functions are integrated on one worktable, allowing for efficient production of aerosol products.
2. Is it easy to operate?
Yes, it is. It has a simple panel with four types of equipment switches, a reset button, and two pressure gauge displays. One person can operate it sequentially to complete the production process.
3. What is the machine made of?
It is made of food - grade 304 stainless steel. This material is safe, non - toxic, durable, and easy to clean.
4. How does it improve efficiency in bottle handling?
It uses high - efficiency pneumatic bottle pushing. The cylinder automatically pushes the bottles instead of manual pushing. Bottles move forward one by one automatically, greatly enhancing the efficiency.
5. Can it be integrated into a production line?
Certainly. It has strong adaptability for extension to the production line. It can be equipped with can arranging machine, valve arranging & inserting machine, crimping machine, capping machine, packing table, and other auxiliary equipment.
6. What are the advantages of its filling head?
The filling head is independently controlled and non - mechanical. It offers high - efficiency filling with accurate control.
7. What about the inflatable head?
The inflatable head is precisely guided, which results in high efficiency and low air consumption.
8. Is it suitable for different aerosol products?
Yes. It is applicable to filling various media and manufacturing various aerosol chemical products. It is widely used in aerosol products for food, medicine, hygiene, automobiles, environmental protection, fire fighting, and daily necessities.
9. What are the benefits of the new upgrade?
The new upgrade has 4 highlights. It is more convenient to use and has more stable performance.
