QGJ45 automatic aerosol bottle Filling Outer-crimping machine

Name: QGJ45 automatic aerosol bottle Filling Outer-crimping machine
Brand: Wejing
Rating: 5.0 (83 reviews)

Share to:

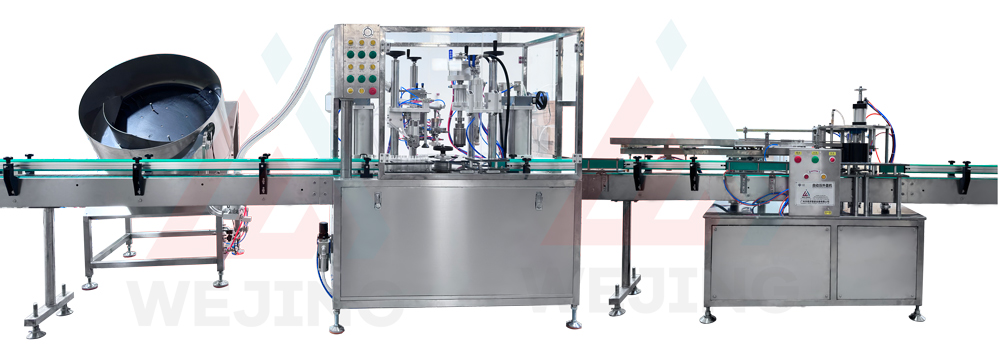

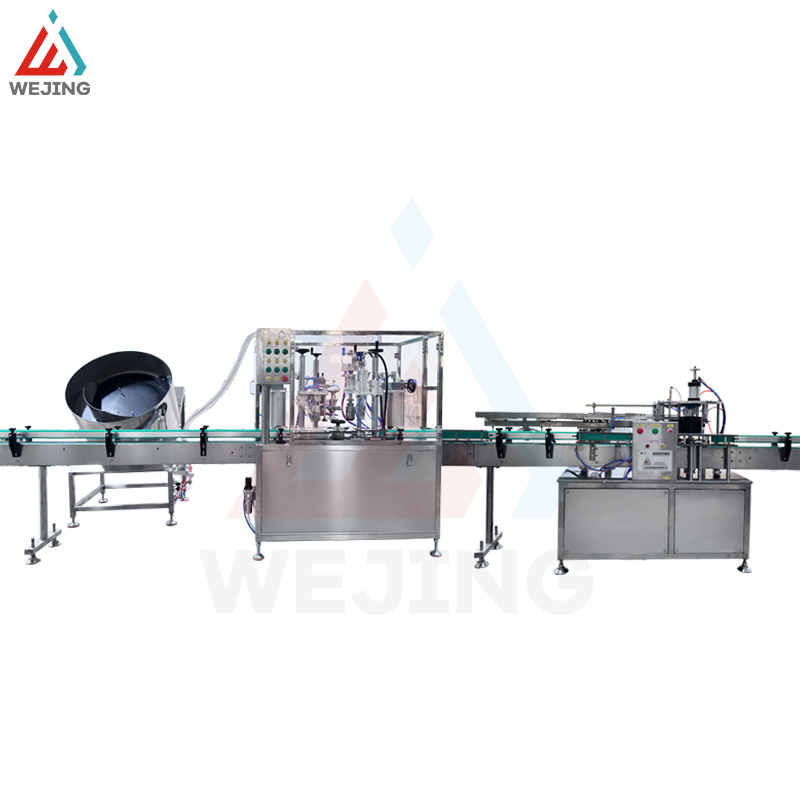

QGJ-45 Automatic aerosol filling production line is composed of Valve insert machine,index type 2 heads liquid filling 、Outer-crimping head and 2 heads gas filling machine, conveyor.it also could equipped with aerosol bottle feeding machine weighing checker, automatic water-bath leakage tester.this filling suitable for aerosol plastic bottle production

Availability:

Quantity:



Inquire Add to Basket

Model:
QGJ45
Brand:
Wejing

Product Description

|Technical Parameters

	Technical Parameter	Description
1	Filling capacity (bottles/min)	35-45
2	Liquid filling volume (ml)	10-1200( can be customized)
3	Gas filling volume (ml)	10-1200( can be customized)
4	Filling heads	2 heads
5	Filling accuracy	≤±1%
6	Applicable cans diameter (mm)	35 - 70( can be customized)
7	Applicable cans height (mm)	80 - 300( can be customized)
8	Applicable valve	1 inch
9	Working pressure (Mpa)	0.6 - 0.8
10	Max gas consumption (m3/min)	5
11	Power (KW)	7.5
12	Material	SS304 ( some parts can be SS316)

|Product Uses

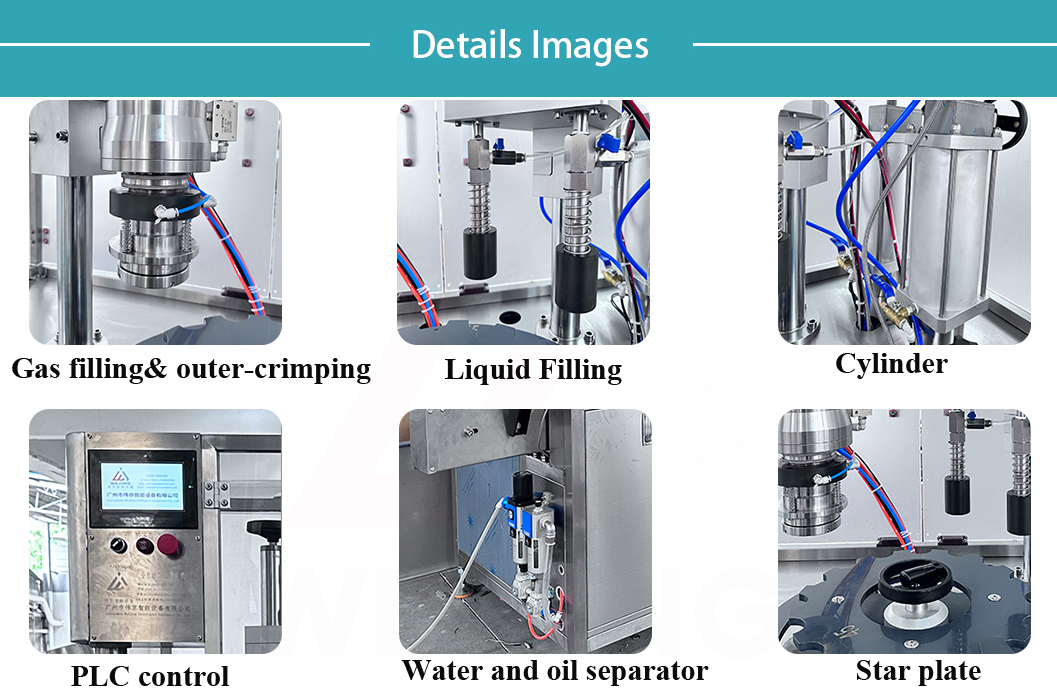

Automatic-BOV-Aerosol-filling-Machine

|Product Advantage

(1)This machine running stably,reliably,less failure,longer life.

(2)Higher efficiency and less labor cost

(3)Higher precision,more stable filling quality

(4)The main pneumatic parts and seal rings adopts famous brand,with good reliability and wear resistance

(5)The production line use explosion-proof motors,the rest are driven by pneumatic controlled,could meet the safety requirements.

(6)Auto up-down height adjustment function,greatly increasing production and changing star wheel speed.

|Product Uses

Applied to sunscreen aerosol products.

塑料瓶防晒喷雾灌装机

|

Application Video

|

Comment & FAQ

1. Are you a factory or trading company?

A: We are a factory specialized in aerosol filling machine ,homogenizer mixing tank and other packing machine

2. Where is your factory location? How can I visit there?

A:Our factory located in No. 32, Fuyuan Road, Xinya Street, Huadu District, Guangzhou City, China,

3. What is the warranty period?

A: We offer a 24-month repair period for problems caused by our design, manufacturing and material quality.s.

4. How long is your delivery time?

A: It usually takes 5-7 days if in stock, or 15-45 days if not in stock.

5. How is the after-sales service?

A: If the problem is easy to solve, we will send you the solution via video or pictures. If the problem is beyond your control, we will arrange an engineer to come to your factory.

|

Company Profile

Guangzhou Wejing Intelligent Equipment Co., Ltd. is a high-tech enterprise specializing in the development and manufacture of automation machinery and equipment, located in No. 32, Fuyuan Road, Xinya Street, Huadu District, Guangzhou City, China, which is the most comprehensive manufacturer of filling machine specifications at present.

Since its inception, the company has been committed to providing customers around the world with efficient, intelligent and reliable filling and packaging solutions, covering a wide range of products, such as aerosol filling machines, mask machines and other areas. Our self-developed aerosol filling machine adopts advanced automation technology and is characterized by high precision, high efficiency and low loss, which can meet the filling needs of aerosol products of different specifications. The equipment is easy to operate and has strong stability. The company's internal ISO quality management system is strictly implemented, from raw materials to finished products, each link is strictly controlled. Our products are exported to Southeast Asia, America, Africa and other countries and regions, and we have established a perfect after-sales service system to provide customers with timely and professional technical support.
