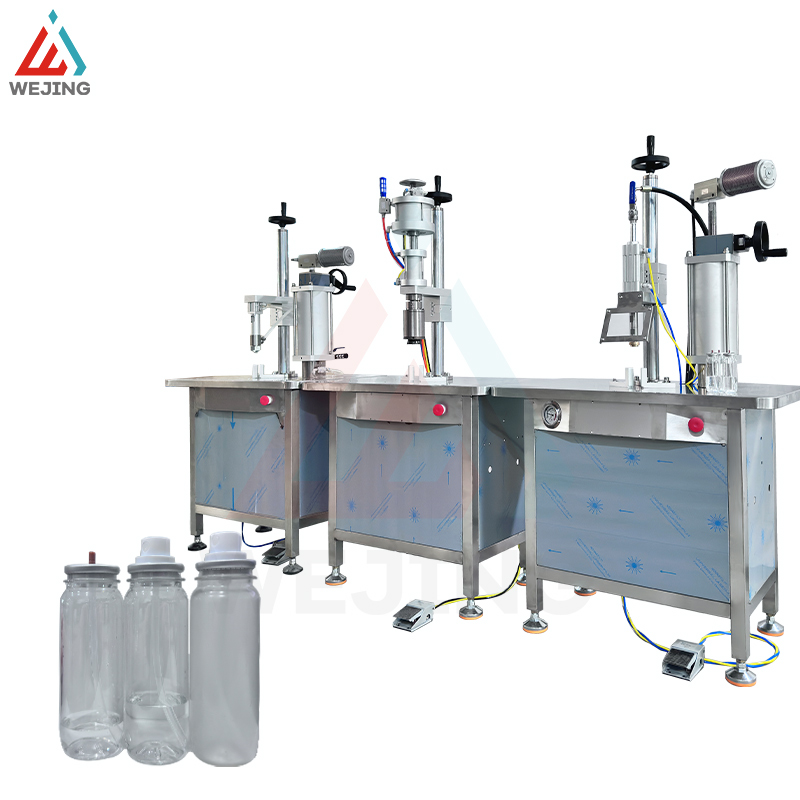

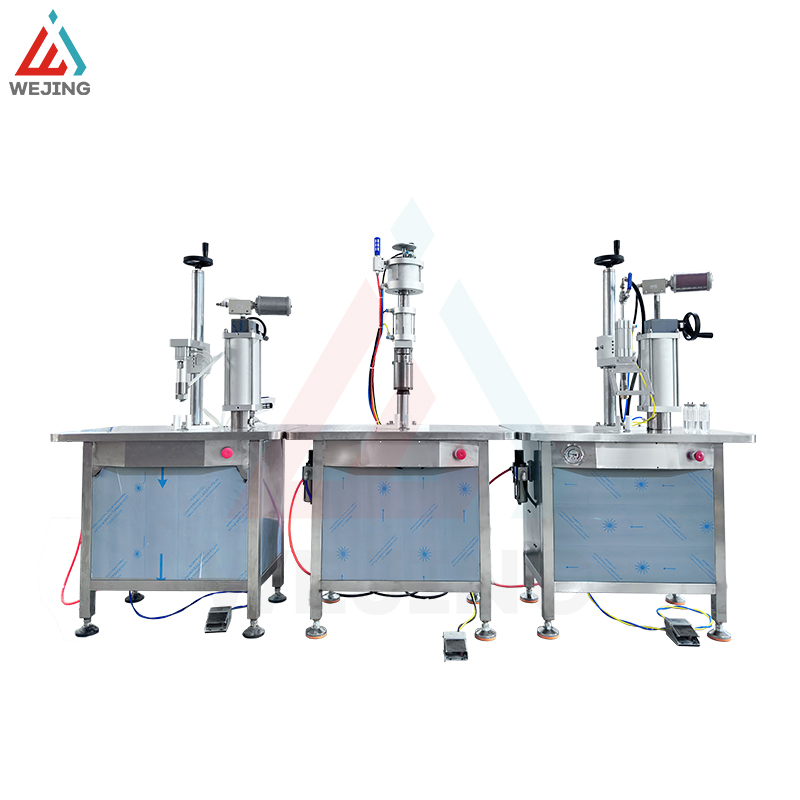

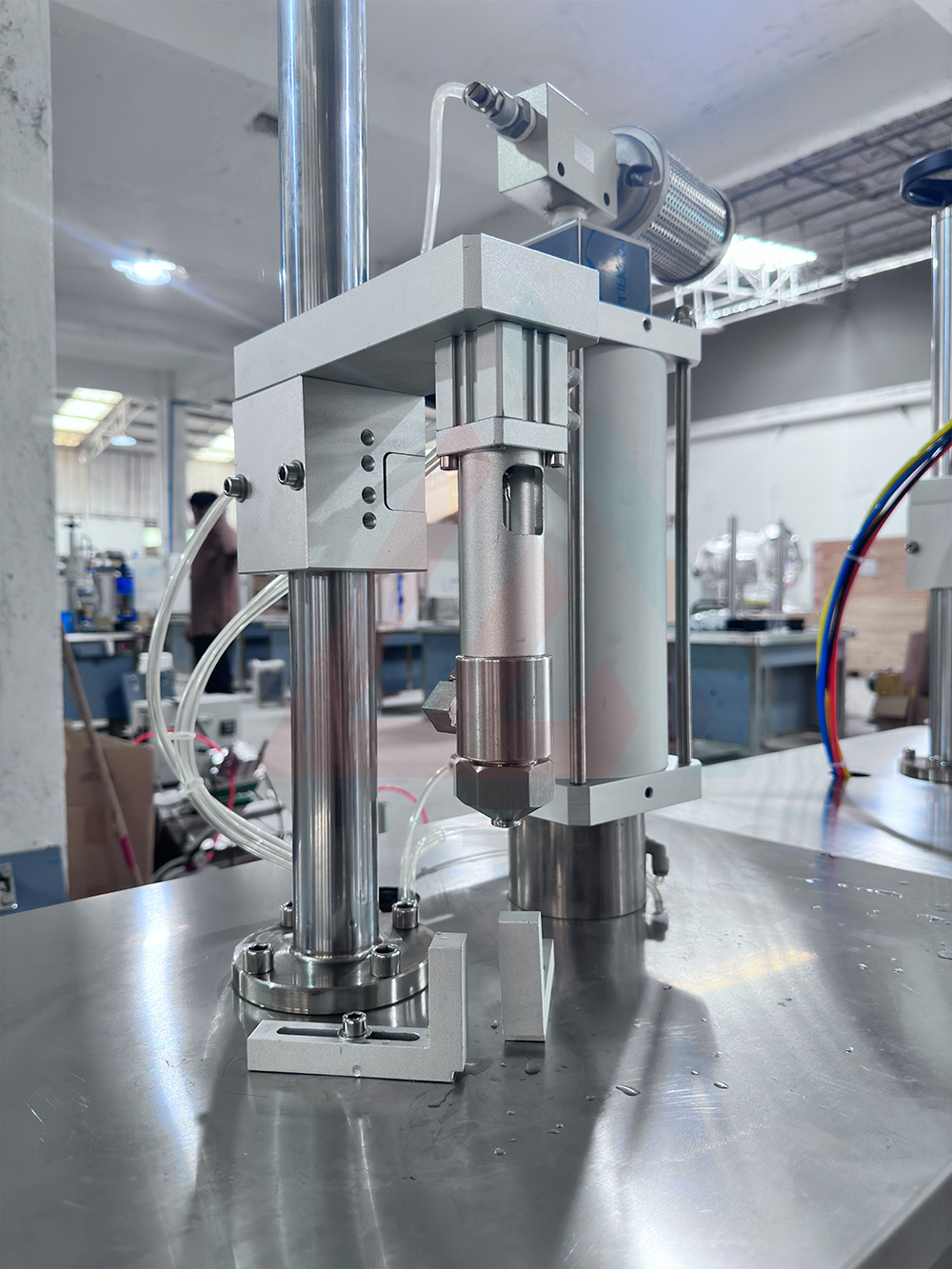

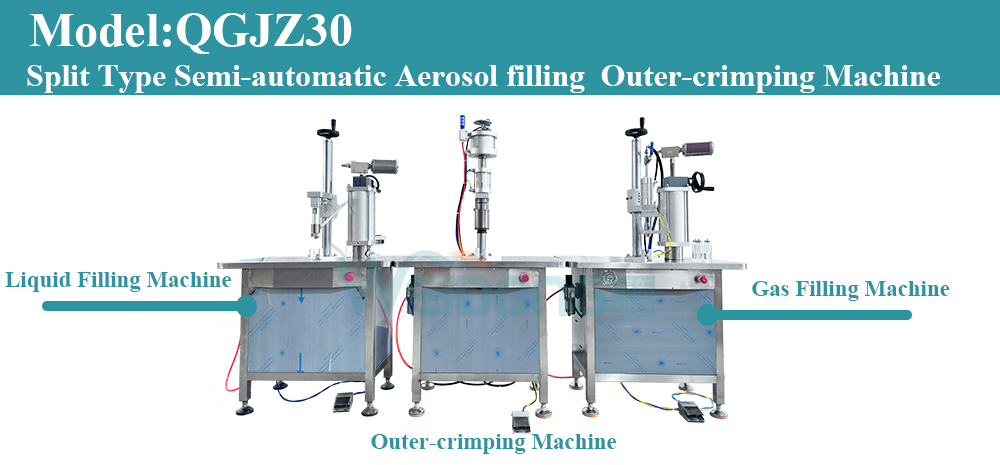

Liquid Filling Machine:
The machine can fill liquid raw materials of aerosol products into cans according to the demand with filling accuracy of ±1%. The maximum filling capacity is 500 ml and the filling speed is 500-100 cans per hour.

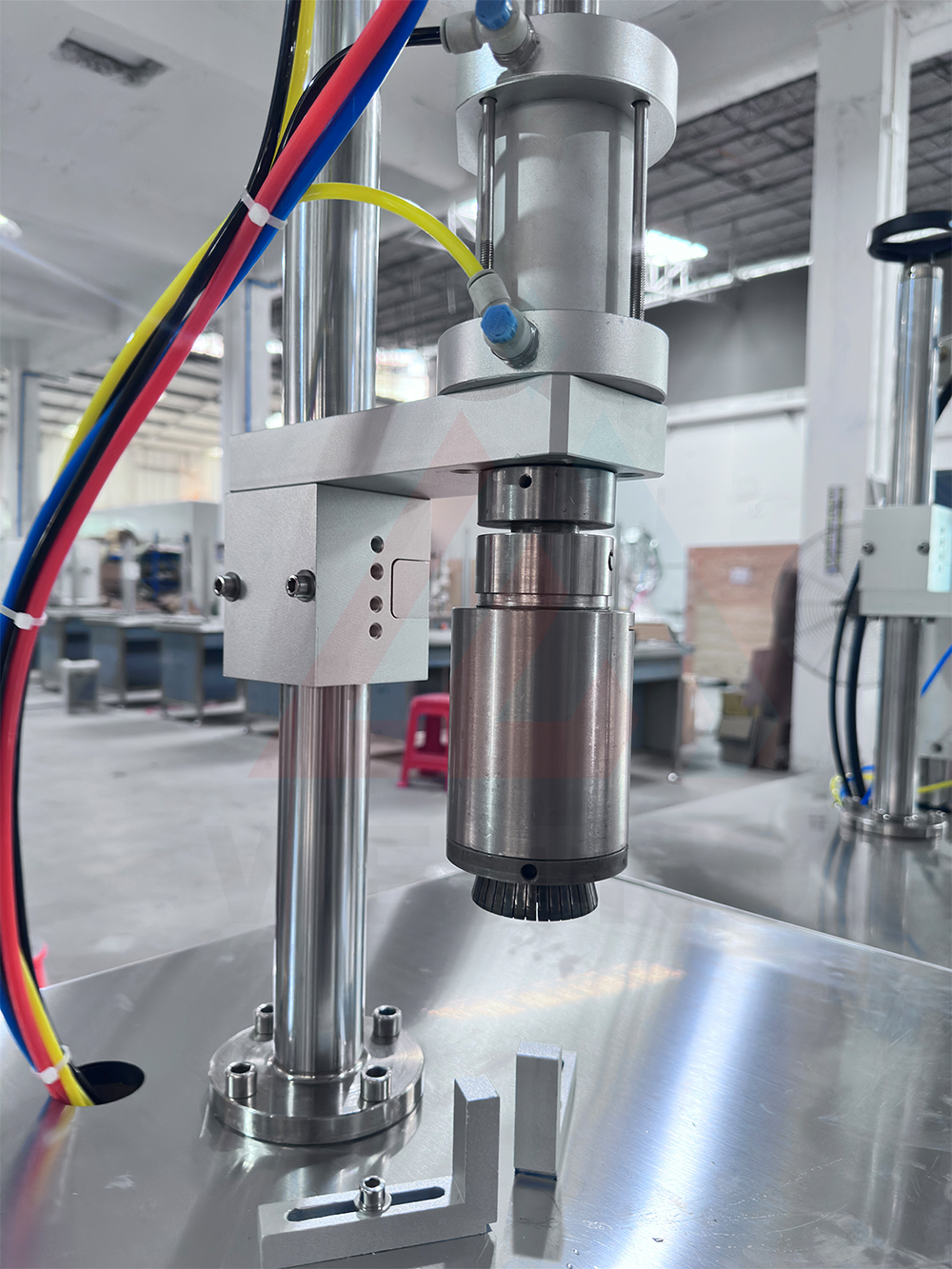

Outer-crimping machine
The sealing diameter and sealing depth are easily adjustable and the sealing quality is reliable. The machine is characterized by high sealing speed, reliable sealing quality and easy operation, adjustment and maintenance.

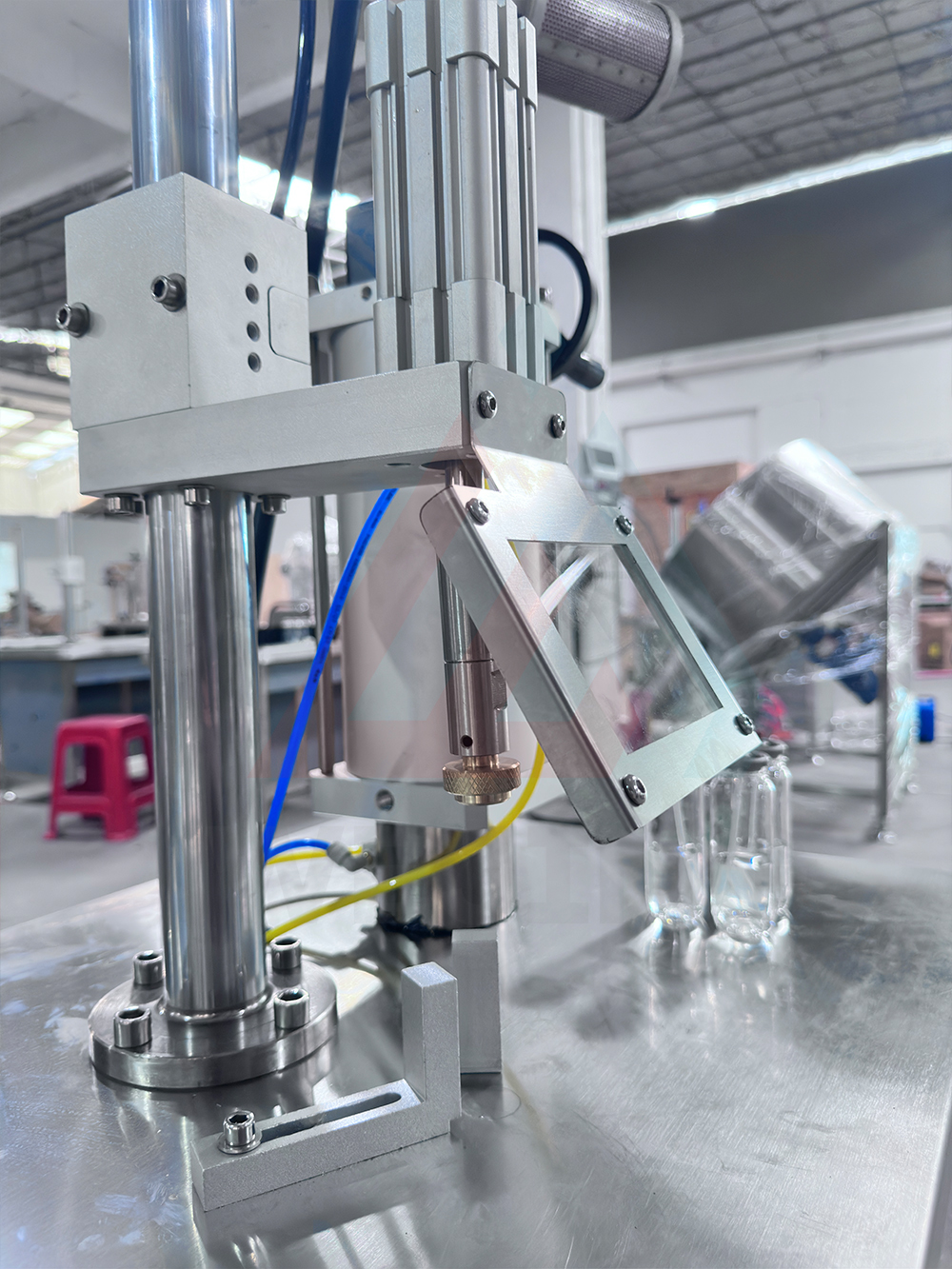

Gas filling machine
Semi-automatic LPG, DME gas filling is suitable for all kinds of gases for aerosol products.
The filling machine is equipped with a two-way booster pump, which can boost the pressure of LPG, DME to 1.0-120 MPa and liquefy the LPG, DME, thus speeding up the filling speed and ensuring accurate metering.
|Technical Parameters
1 | Filling volume | 30-500ml (customized) |
2 | Filling accuracy | ≤±1% |
3 | Filling capacity | 500-1000 Can/hr |
4 | Can body height | 70-330mm,customization available |
5 | Can size | 1 inch |
6 | Air source | 0.45-0.7Mpa |
7 | Air consumption | 0.8m3/min |
8 | Weight | 320kg |
9 | Dimension | 880*550*1600 |
|

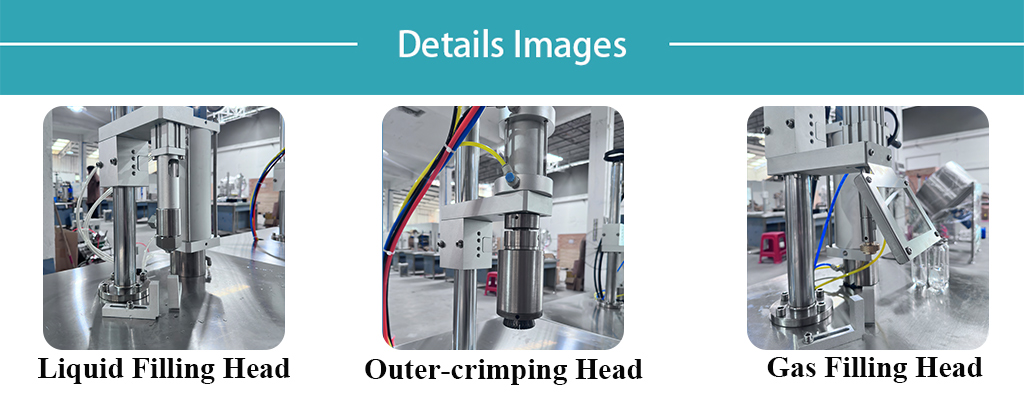

Detail Image
|Product Advantage
1)Stable and durable: the equipment adopts high reliability design, smooth operation, low failure rate, stable performance in long-term use.
2)High efficiency and energy saving: high degree of automation, significantly improve production efficiency and reduce labor costs.
3)Precise control: high filling precision, ensure product consistency, stable and reliable quality.
4)High-quality components: core pneumatic components and seals are selected from international brands, which are wear-resistant and damage-resistant, with longer service life.
|
Product Packaging

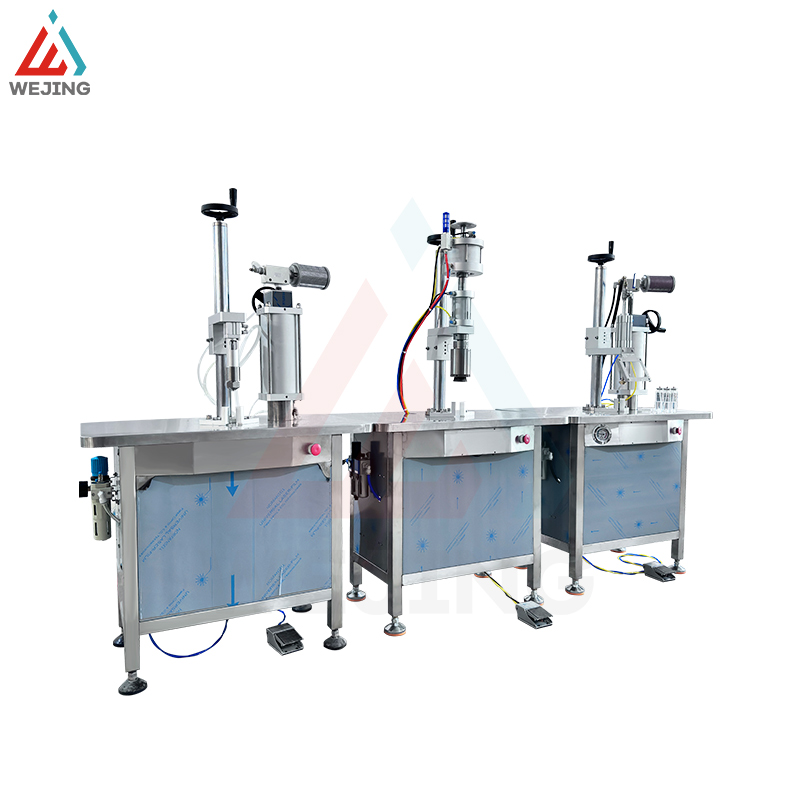

Aerosol Product Outer Capping Machine
Wooden crate protection
Multiple modes of transportation
|Product Uses:
This outer-crimping machine can be widely used in the production of various aerosol products, such as 、suncreen, air fresheners, car care products, etc。
|Operational Principle:
1） The machine works by precisely aligning the aerosol can and the sealing component. A controlled force is applied to create a tight and secure seal. Sensors monitor the process to ensure accuracy.
2） It utilizes a mechanical clamping system to hold the can in place. And then pressed firmly to form a leak-proof seal.
3） The operational principle involves a rotational movement to evenly distribute the sealing force. This ensures a consistent seal around the entire perimeter of the can. Automatic control systems adjust parameters based on the can type and sealing requirements.
|
Comment & FAQ
1. How often does the machine need maintenance?
Regular maintenance is recommended every few months. It depends on usage, but typically a thorough check-up helps prevent issues.
2. Can it handle different sizes of aerosol cans?
Yes, it's adjustable to accommodate various can sizes. Just make the necessary settings before operation.
3. What if the sealing quality is not good?
Check the settings, sealing components for wear, and ensure proper material supply. Most issues can be resolved with simple troubleshooting.
4. How long does it take to seal one can?
It usually takes only a few seconds per can, ensuring efficient production.
5. Does the machine come with a warranty?
Yes, it comes with a standard warranty period. Specific details depend on the manufacturer's policy.
|
