1. Product Introduction

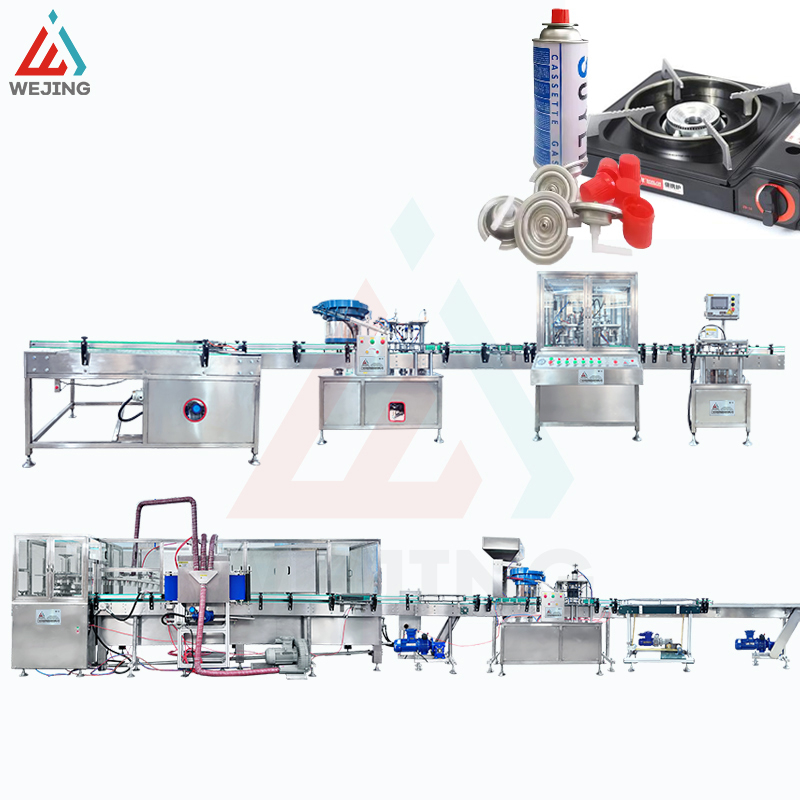

Butane gas filling line is an automated production equipment specially designed for cassette gas cylinders (such as butane gas tanks, propane gas tanks and other portable gas containers), which integrates several key processes and can efficiently complete the large-scale filling of cassette gas.
2 Working process
Empty cans feeder
Continuously transferring cans from the arranger to other equipment for automatic conveying.
L shape valve fitting machine
Precise gripping of the L-shaped cassette valve and its placement in the tank port to prepare the seal for the subsequent sealing and filling process.
Automatic vacuuming crimping gas filling machine
The tank is first vacuumed to remove the internal air; then the connection between the bottle and the valve is tightened by the crimping mechanism; and finally the liquefied petroleum gas (LPG) is quantitatively filled to complete the core filling process.
Aerosol weight checking machine
Check the weight of the filled cassette cans, screen out the overweight or underweight defective products, and ensure that the dosage of each can meets the standard.
Water bath leakage testing machine
Water bath detectors are the best choice for detecting gas leaks in gas canned products.
The automatic water bath leak detector is used to detect a wide range of aerosol products, regardless of the filling material.
Aerosol can cap fitting machine
Automatically press the cap on the tested tanks, and accurately fasten the protective cap on the outside of the valve to prevent the valve from being damaged or mishandled during transportation.
Ink-jet belt
The bottom of the can is sprayed with production date, batch number and other information, and the can is stably conveyed by conveyor belt during the spraying process to ensure the accurate spraying position.
Packing table
As the end of the production line, it is used for temporary storage of qualified finished products, which is convenient for operators to carry out subsequent processing such as boxing and packing.
3.Parameter
1 | Model Number | QGJ70 |
2 | Place of Origin | Guangdong |
3 | Certification | CE&ISO9001 |
4 | Supply Ability | 10sets per month |
5 | Production speed | 60-70 cans / min |
6 | Capacity | 30-750ml ( Can Be Customized) |
7 | Speed | High |
8 | Gas consumption | 6.5m 3/ Min |
4. Butane Gas Filling Machine Application
It is widely used in the mass production of portable stove fuel, lighter gas, outdoor camping gas and other cartridge gas products
5. Feature
(1) Its filling volume is flexible, adapting to a variety of specifications of products.
(2)Multi-station configuration, to enhance the stability of the equipment.
(3)High precision control ensures accurate filling and enhances product consistency and qualification rate.
(4)Stability ensures high productivity.
(5)Simple operation, easy maintenance and high flexibility.
