WJERS-300
Wejing

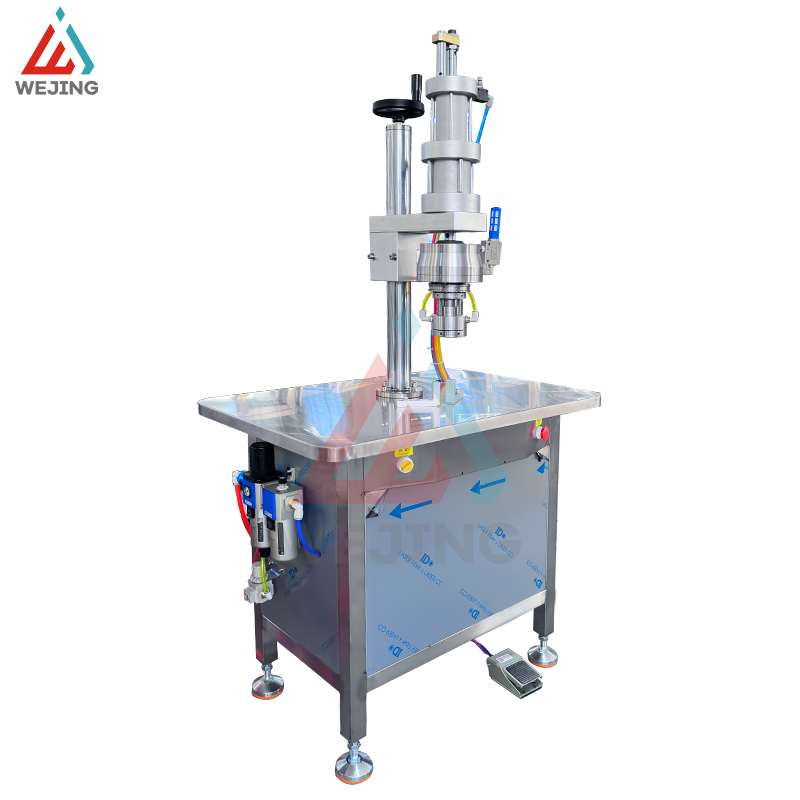

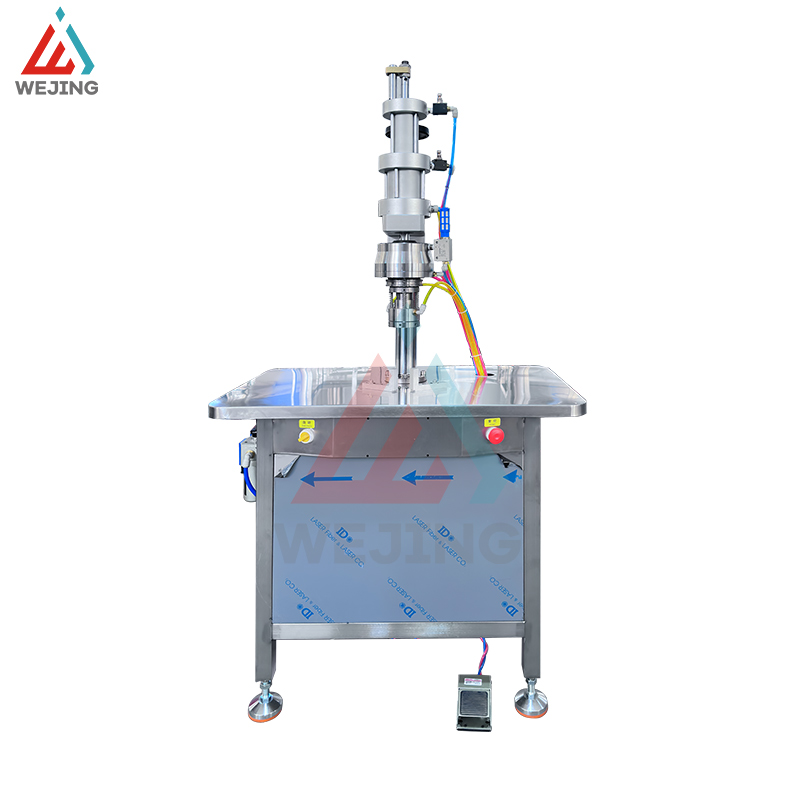

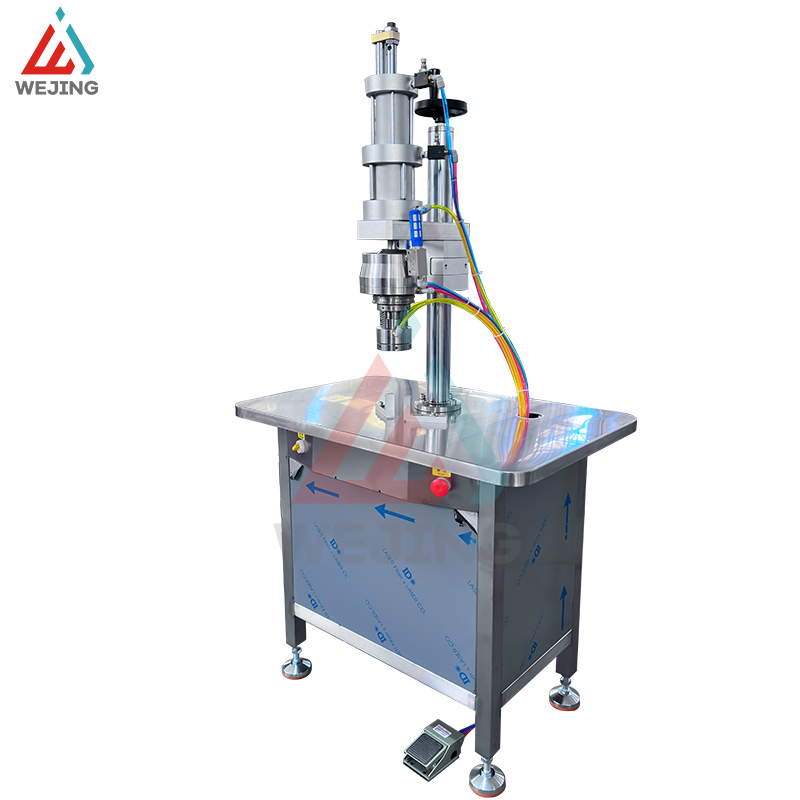

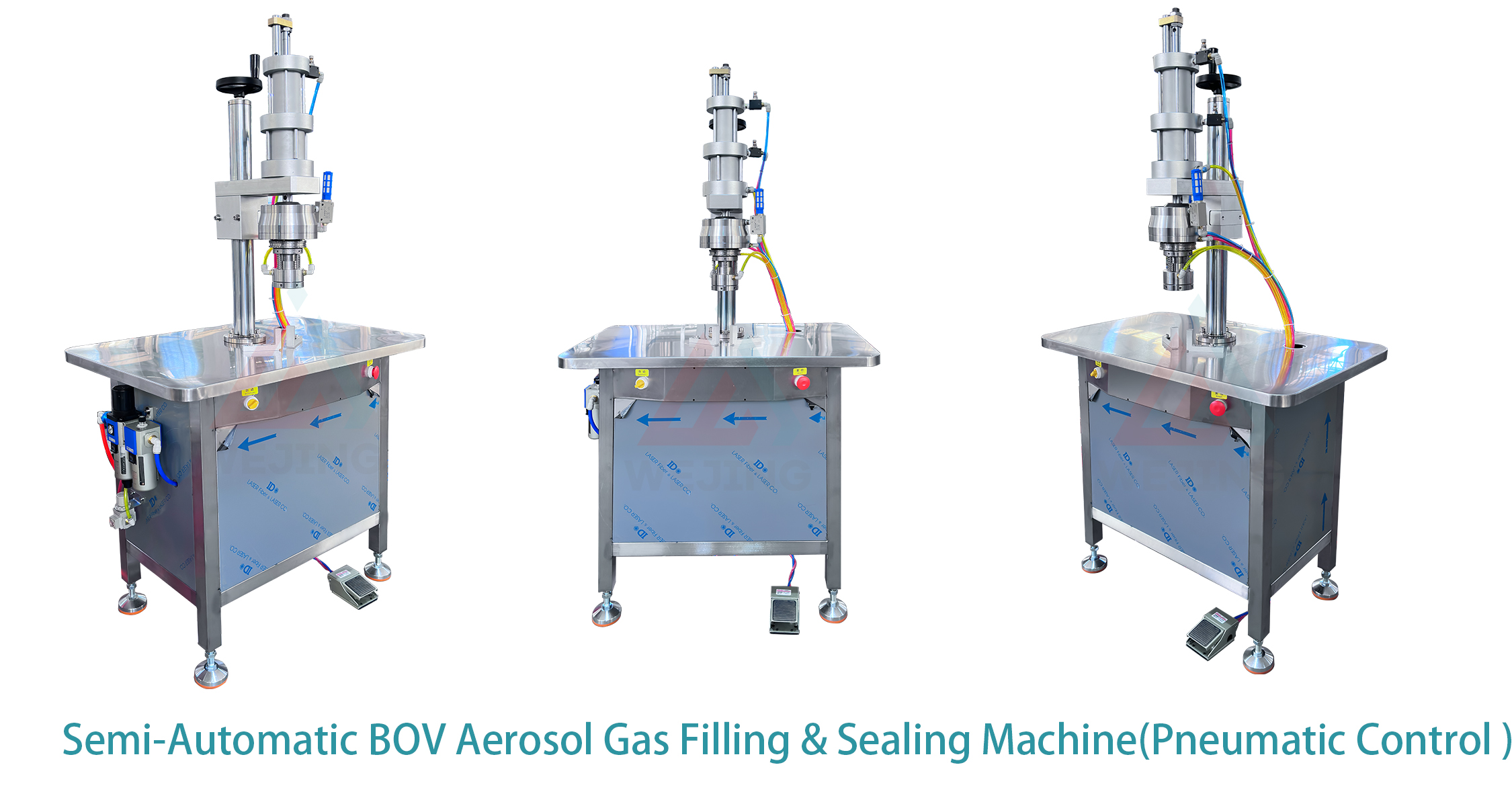

Pneumatic Cotrol Bag on Valve Aerosol Filling Machine is an advanced packaging equipment mainly used for the production of aerosol products. It has two functions: first gas filling, then sealing.
The core power and control of the equipment rely on pneumatic drive, offering the advantages of smooth operation, explosion-proof safety, and easy maintenance.
NO. | Technical Parameter | Description |
1 | Filling capacity | 10-15 cans/min |
2 | Liquid filling volume | 30-300ml |
3 | Gas filling accuracy | ±0.03Mpa |
4 | Liquid filling accuracy | ≤±1% |
5 | Applicable cans diameter | 35-70mm ( can be customized) |
6 | Applicable cans height | 70-330mm ( can be customized) |
7 | Applicable valve | 20mm BOV |
8 | Propellant | N2, compressed air |
9 | Max gas consumption (m3/min) | 1m3/min |
10 | Power (KW) | AC 220V/50HZ |
11 | Air source | 0.6-0.7Mpa |
12 | Dimensions | 1200×650×1670 mm |
13 | Weight | 255 kg |
|Feature
Specifically designed for BOV aerosol packaging, simultaneously completing core processes of gas charging and sealing
Equipped with an adjustment mechanism to accommodate cans of varying sizes, offering high versatility
Faster than manual production, requiring lower investment than fully automated equipment with flexible changeovers
|Application
This machine is design for bag on valve product(water-based aerosol product),such as water-based fire extinguishers Nasal Spray edible oil Deodorant Shaving Gel Water Base Paint Spray aerosol filling machine

Pneumatic Cotrol Bag on Valve Aerosol Filling Machine is an advanced packaging equipment mainly used for the production of aerosol products. It has two functions: first gas filling, then sealing.
The core power and control of the equipment rely on pneumatic drive, offering the advantages of smooth operation, explosion-proof safety, and easy maintenance.
NO. | Technical Parameter | Description |
1 | Filling capacity | 10-15 cans/min |
2 | Liquid filling volume | 30-300ml |
3 | Gas filling accuracy | ±0.03Mpa |
4 | Liquid filling accuracy | ≤±1% |
5 | Applicable cans diameter | 35-70mm ( can be customized) |
6 | Applicable cans height | 70-330mm ( can be customized) |
7 | Applicable valve | 20mm BOV |
8 | Propellant | N2, compressed air |
9 | Max gas consumption (m3/min) | 1m3/min |
10 | Power (KW) | AC 220V/50HZ |
11 | Air source | 0.6-0.7Mpa |
12 | Dimensions | 1200×650×1670 mm |
13 | Weight | 255 kg |
|Feature
Specifically designed for BOV aerosol packaging, simultaneously completing core processes of gas charging and sealing
Equipped with an adjustment mechanism to accommodate cans of varying sizes, offering high versatility
Faster than manual production, requiring lower investment than fully automated equipment with flexible changeovers
|Application
This machine is design for bag on valve product(water-based aerosol product),such as water-based fire extinguishers Nasal Spray edible oil Deodorant Shaving Gel Water Base Paint Spray aerosol filling machine
