Efficiently fill up to 120 cans per minute with our aerosol filling line. Increase production speed and accuracy with this high-performance equipment. Ideal for industries requiring fast and precise aerosol filling.
Availability:
Quantity:
Inquire Add to Basket

  • QGJ120

|

 Product Description

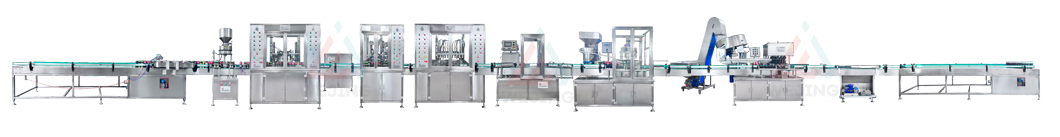

WJ aerosol can filling line

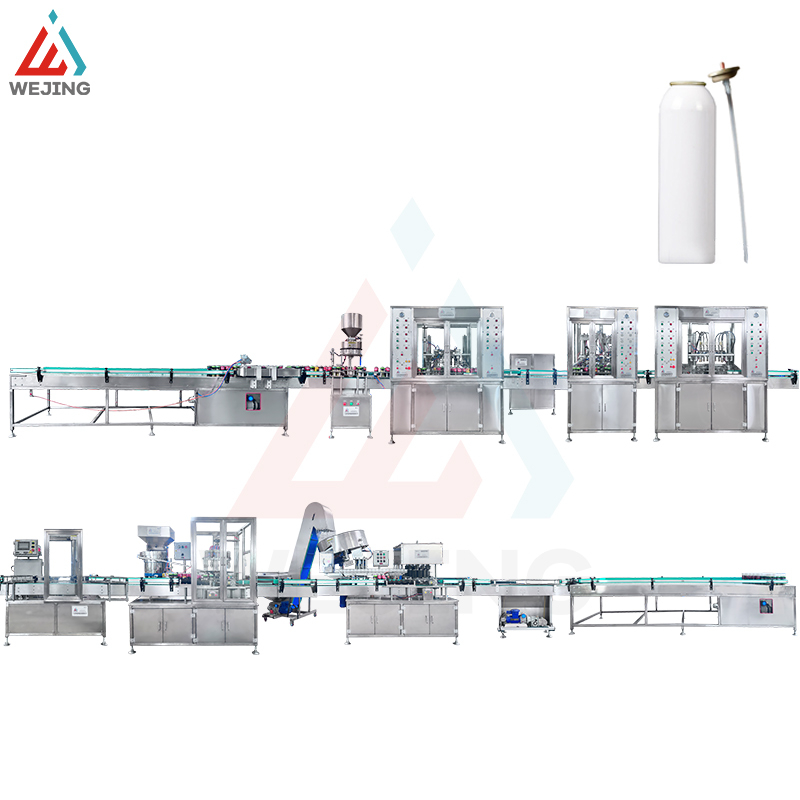

QGJ-120 Automatic aerosol filling production line is composed of two index ten heads liquid filing machine,two index valve inserting and crimping machine, two index ten heads gas filling machine, it also could equipped with automatic valve inserting machine, automatic weighing checker, automatic water-bath leakage tester, automatic printer, automatic actuator presser, automatic cap presser.


|

 Parameter


NO.

Name

Description

1

Filling capacity

90-120 cans/min

2

Filling volume

30-1200ml

3

Filling accuracy

≤±1%

4

Applicable cans diameter

35 - 70mm( can be customized)

5

Applicable cans height

80 - 350mm( can be customized)

6

Applicable valve

1 inch ( can be customized)

7

Working pressure

0.6 - 1Mpa

8

Max gas consumption

6.4 m3/min

9

Power

45KW

10

Material

SS304 ( some parts can be SS316)

11

Warranty

1 year

|Machine Detail

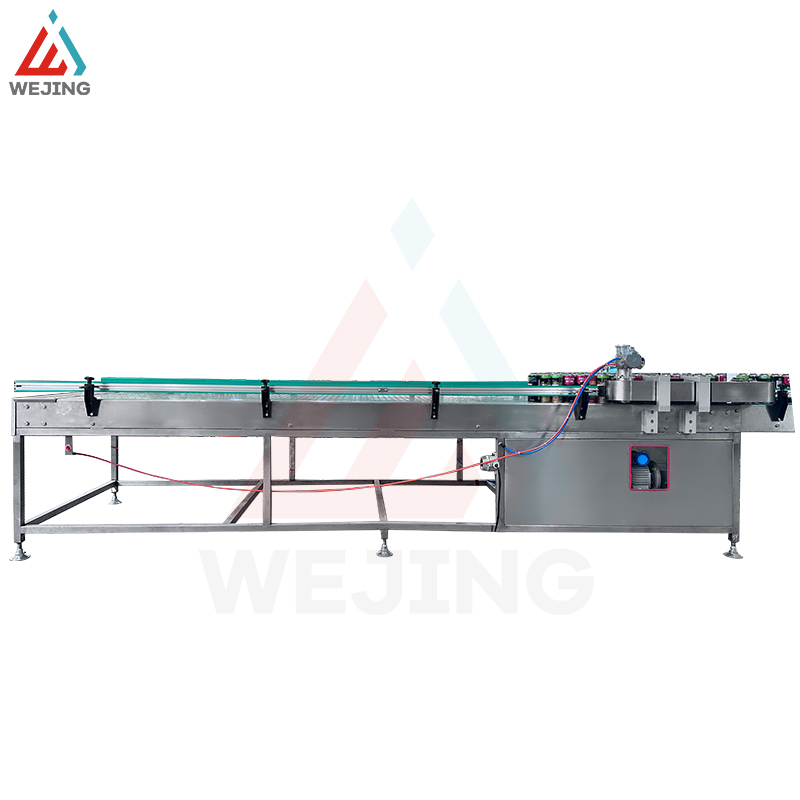

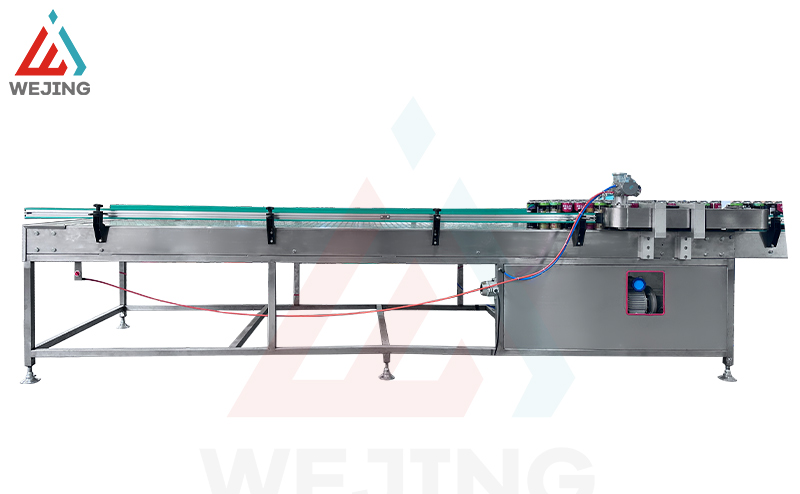

1-Aerosol-Can-Feeding-Machine

Can Feeding Machine

1.Keep the cans feeding properly and orderly on the conveyor belt.
2.High efficiency and reduce labor intensity.

Automatic-Glass-Bead-Placing-Machine

Automatic Glass Bead Placing Machine

Put the glass bead into the aerosol can

Suitable for Aerosol paint and Snow spray

Read more https://www.wejingmachine.com/What-is-the-function-of-glass-beads-in-aerosol-cans-id47800306.html

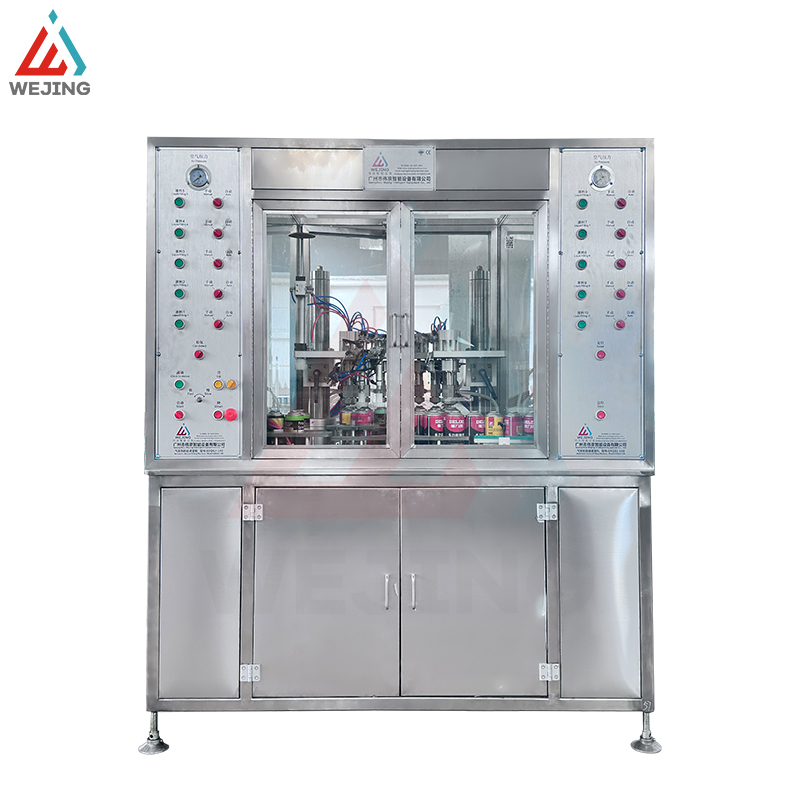

Aerosol-Liquid-Filling-Machine

Liquid Filling Machine

8/10 heads Liquid filling heads
Each part can be controlled independently

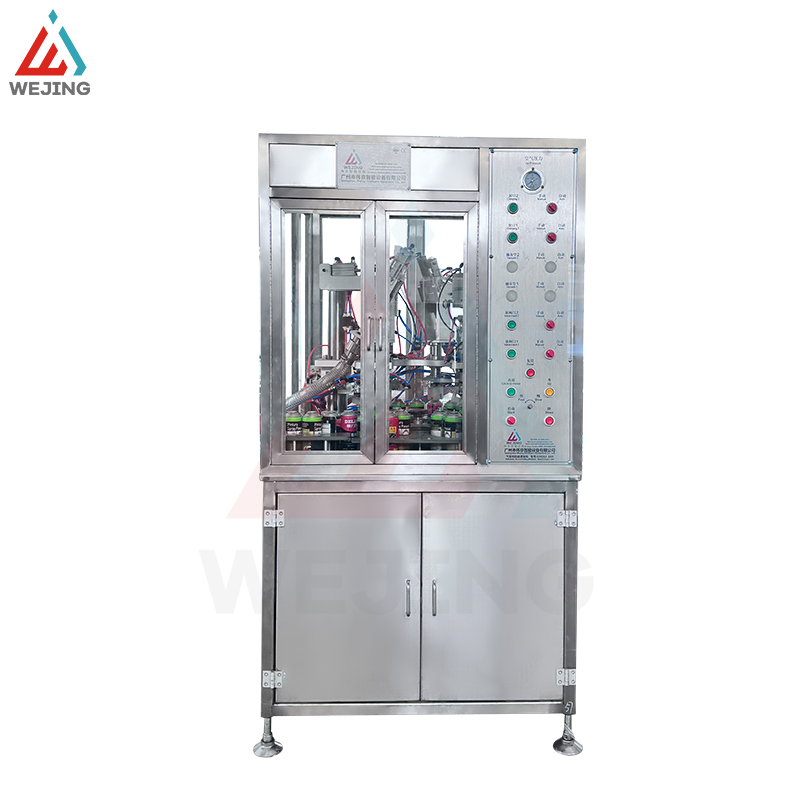

Valve-Inserted-Machine

Valve Inserted & Crimping Machine

put the valve in the can

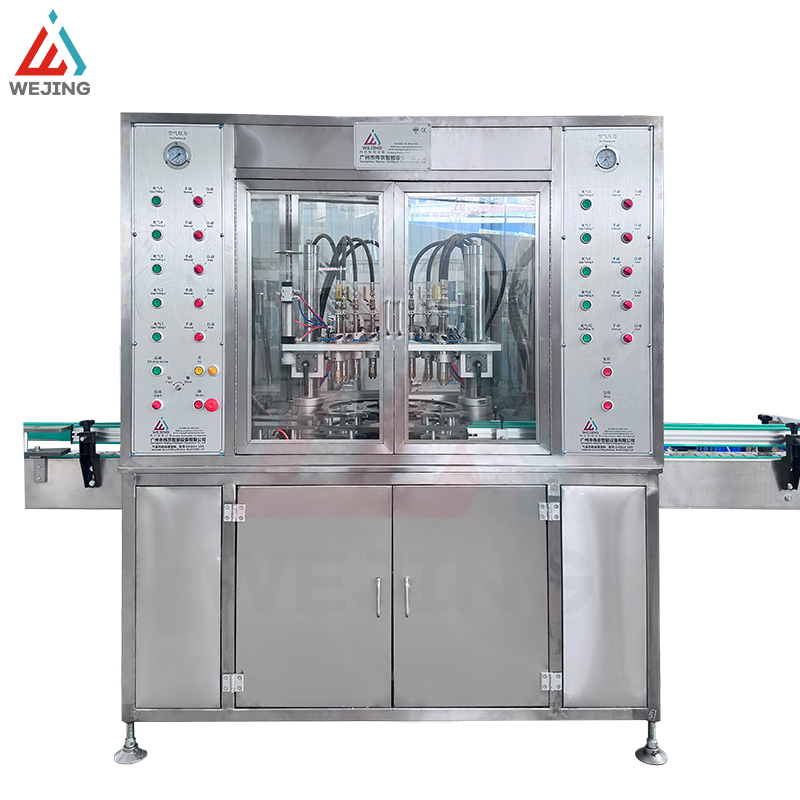

6.Aerosol-Gas-Filling-Machine

Gas filling machine

8/10 heads Gas filling heads
Each part can be controlled independently

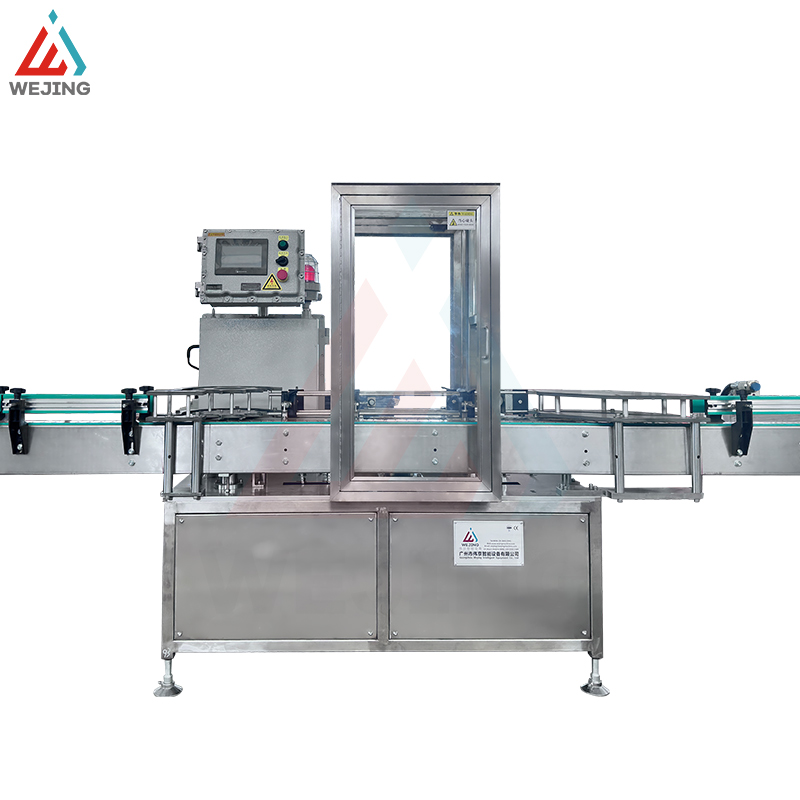

6.Aerosol-weighing-checking-machine

Weight checking machine

Weight the cans which crimping failure then to reduce loss.

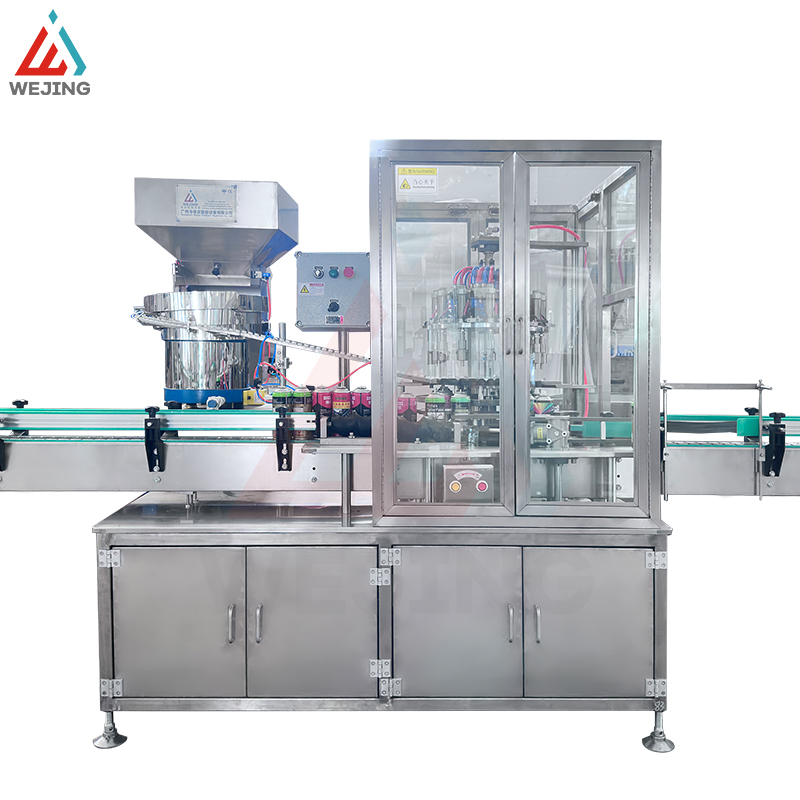

7.Aerosol-Can-Actuator-Press-Machine

Auto Actuator Pressing Machine

Auto actuator presser machine is used for the installation of spray nozzle of aerosol products.

8.Cap-Inserted-and-Presser-Machine

Cap Pressing Machine

Auto security cap presser machine is used for the installation of spray security cap of aerosol products

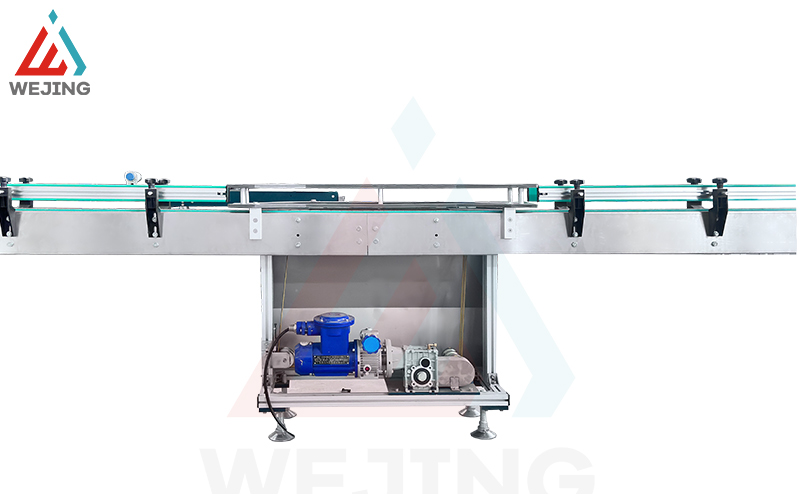

Aerosol-Ink-jet-Belt

Aerosol can Ink-jet Belt

Printing product traceability information, clear and durable marking.

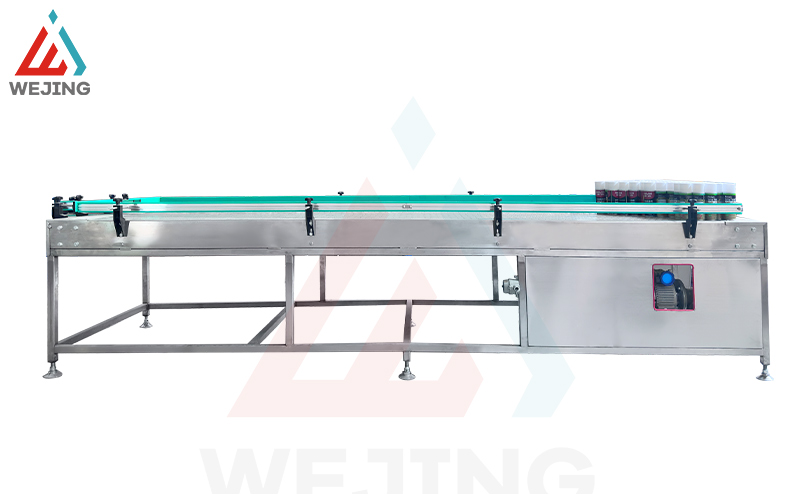

Aerosol-can-collection-table

Aerosol can collection table

Collect the aerosol products that have been completed production, to facilitate the subsequent workers packing operation




Previous:
Next:
High Speed Aerosol Filling Production Line Aerosol Filling Machine aerosol can filling machine Aerosol Product Filling Mmachine

Related Products

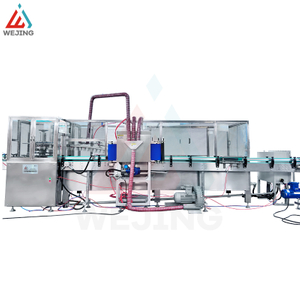

Water Bath Leakage Testing Machine for Aerosol Spray Can
Water Bath Leakage Testing Machine for Aerosol Spray Can

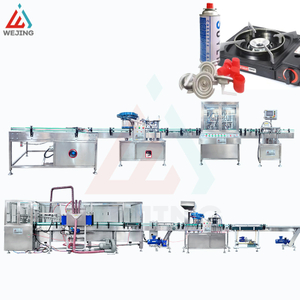

Aerosol Butane LPG Gas Filling Machine Automatic Gas Lighter Aerosol Making Production Line
Aerosol Butane LPG Gas Filling Machine Automatic Gas Lighter Aerosol Making Production Line
High Speed Bov Automatic Aerosol Filling Machine Line Exporter in China
High Speed Bov Automatic Aerosol Filling Machine Line Exporter in China
Semi Automatic Aerosol Can Gas Filling Machine for Chemical Industries
Semi Automatic Aerosol Can Gas Filling Machine for Chemical Industries
Automatic Air Freshener Filling Sealing Machine Spray Aerosol Can Filling Line Aerosol Filling Machine
Automatic Air Freshener Filling Sealing Machine Spray Aerosol Can Filling Line Aerosol Filling Machine
Three in One Semi Automatic Aerosol Filling Machine for Gas Spray Aerosols
Three in One Semi Automatic Aerosol Filling Machine for Gas Spray Aerosols

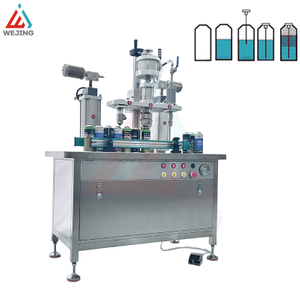

Factory Price Semi Automatic Three in One Aerosol Spray Filling Machine for Gas Spray Paint Aerosols
