Product Advantage:
1. Add one more air cylinder to make the air supply more stable.
2. Enhance the platform to make the operation more convenient.
3. Optimize the gas pipeline and air pipeline to be more reasonable.
4. An additional air cylinder is added to make the air supply more stable.
Technical Parameters:
Capacity | 600-1200 cans/hr,depending on filing volume |
Liquid filling capacity | 30-500ml(can be choose) |
Gas filling capacity | 30-500ml(can be choose) |
Filling accuracy | ≤±1% |
Applicable can diameter | 40-70mm |
Suitable aerosol can height | 70-300mm |
Air source | 0.5-0.6Mpa |

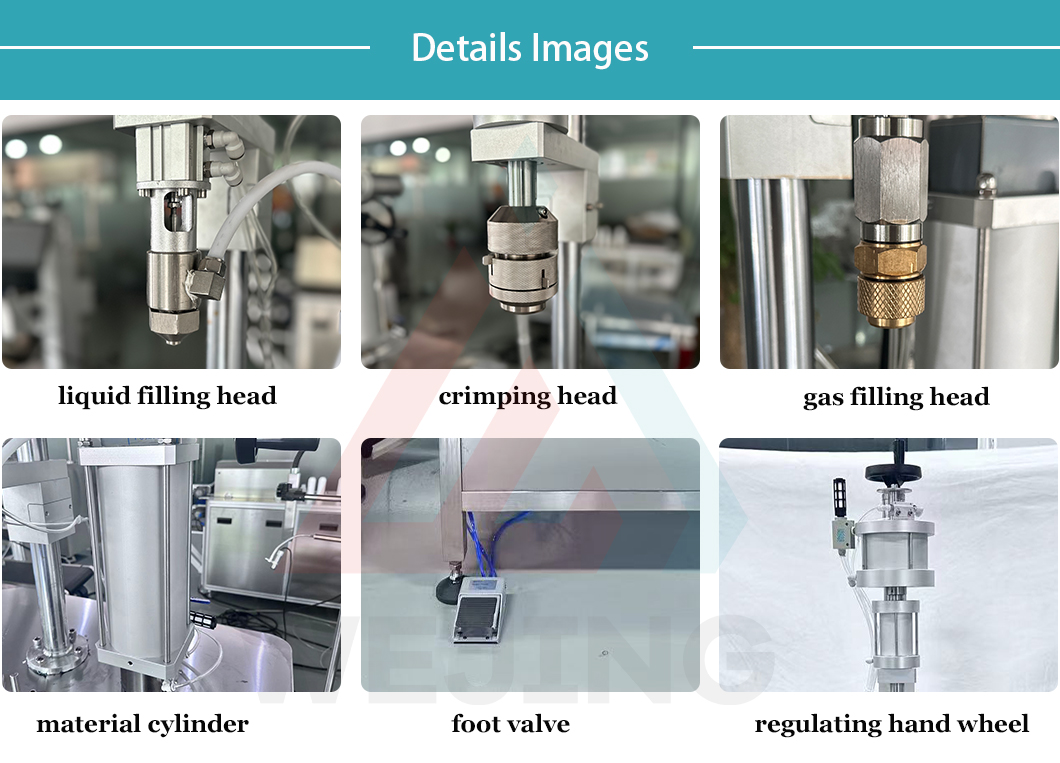

Detail Images:
1. 4 Highlights for New Upgrade: Through continuous upgrading and transformation of the product, it is more convenient to use and the performance is more stable.
2. Three-in-one Filling Machine with Three Functions on One Table: The whole machine is composed of four functional parts: liquid filling, sealing, and gas filling.
3. Food Grade 304 Stainless Steel: Safe, non-toxic, durable, and easy to clean.
4. High-efficiency Pneumatic Bottle Feeding: Use the cylinder to automatically feed the bottle instead of manual feeding, and it will move forward automatically one by one, which greatly improves the efficiency.
5. Simple Control Panel for Easy Operation: Four types of equipment switches plus reset button and two pressure gauge displays.
6. Good Adaptability for Extension to the Production Line: It can be equipped with can arranging machine, valve arranging & inserting machine, sealing machine, capping machine, packing table, and other auxiliary equipment.
Features:

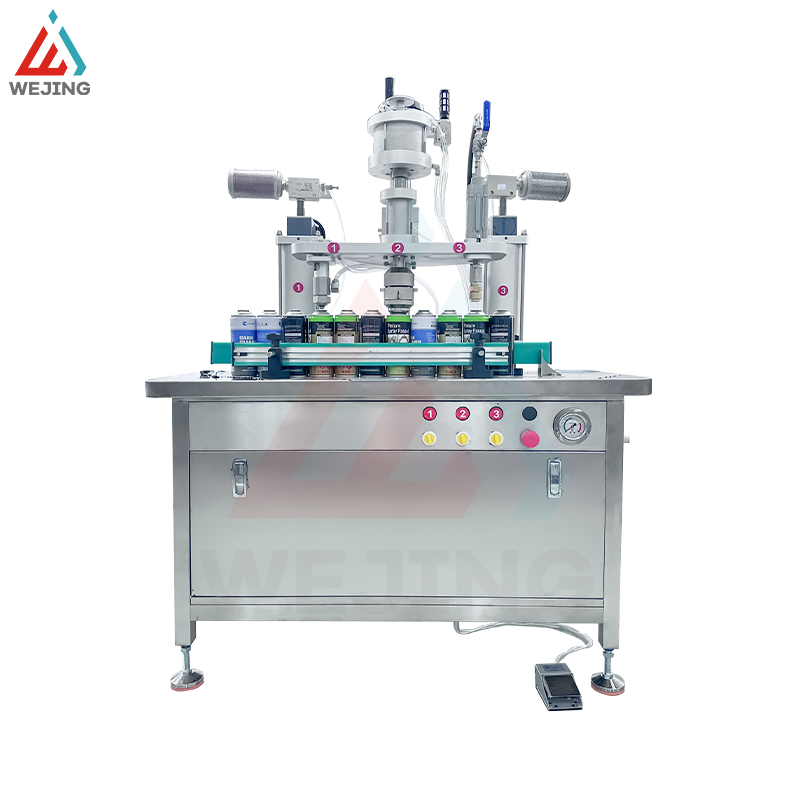

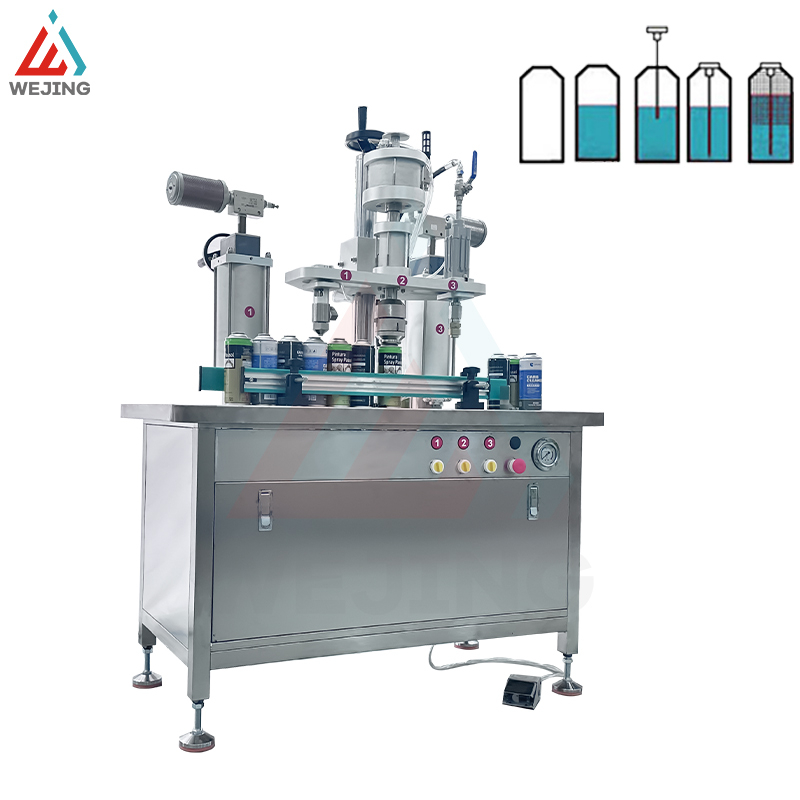

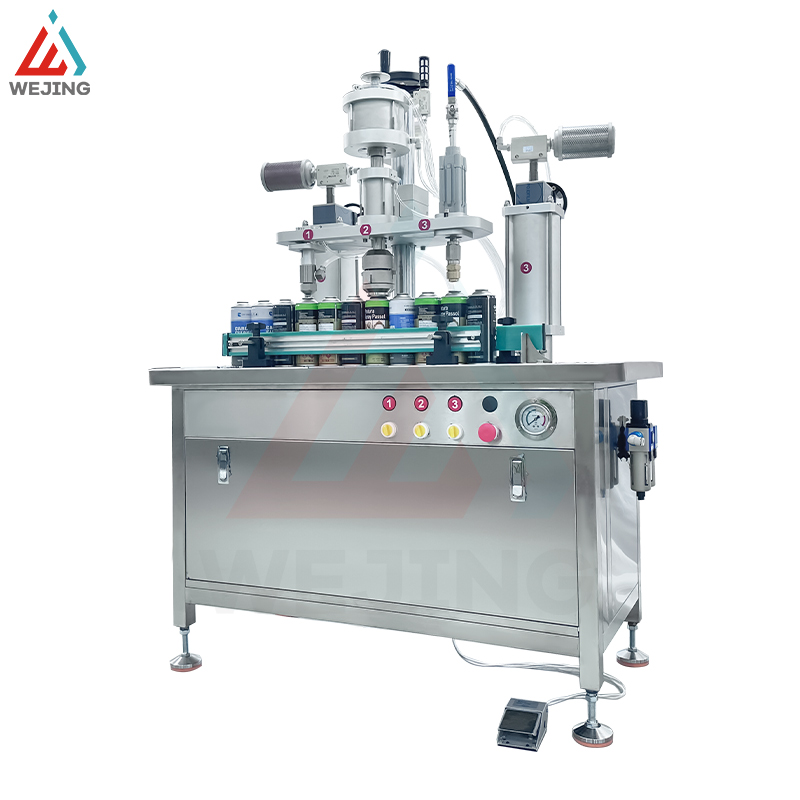

The three-in-one aerosol filling machine combines the functions of irrigating liquid, sealing, and inflating on a single worktable. Only one person is needed to operate it in sequence to complete the production of conventional aerosols. This machine is safe, reliable, easy to use, easy to maintain, and takes up little space. It is an economical equipment for aerosol product production.
By enhancing, optimizing, and integrating the original semi-automatic aerosol filling machine, a production line type is formed. The semi-automatic filling, sealing, and aerating machines are installed on a worktable, and the filler, sealer, and inflator are controlled separately. According to the process sequence, linear production is used to complete all actions. This utility model belongs to a semi-automatic device suitable for aerosol product production.
This machine is characterized by a fast aeration speed, accurate filling capacity, good sealing tightness, and adjustable aeration pressure. It is specially designed for single gas filling and aerosols. It also supports the secondary pressurized filling of multi-component gases, such as compressed air, nitrogen, carbon dioxide, and oxygen. The sealing machine and liquid filling machine are optional.
Product Uses:
It can be used for filling various media and producing various aerosol chemical products. The professional technical design saves labor and time. The filling head is independently controlled and not mechanically driven, and the inflatable head is precisely guided, which has the characteristics of high efficiency and low air consumption. It is widely used in experimental household production and chemical laboratory equipment, such as aerosol products in the fields of food, medicine, hygiene, automobiles, environmental protection, fire fighting, and daily necessities.
FAQ:
1. How does it work?
It is a semi-automatic machine that fills, seals, and inflates in one step.
2. What are the advantages?
Features include low price, high efficiency, and easy operation.
3. What can it be used for?
Suitable for filling gas spray paint aerosols and other aerosol products.
4. Is it safe?
Yes, it meets safety standards and ensures filling accuracy.
5. What is the warranty?
Usually, it comes with a certain period of warranty for repair and replacement.
