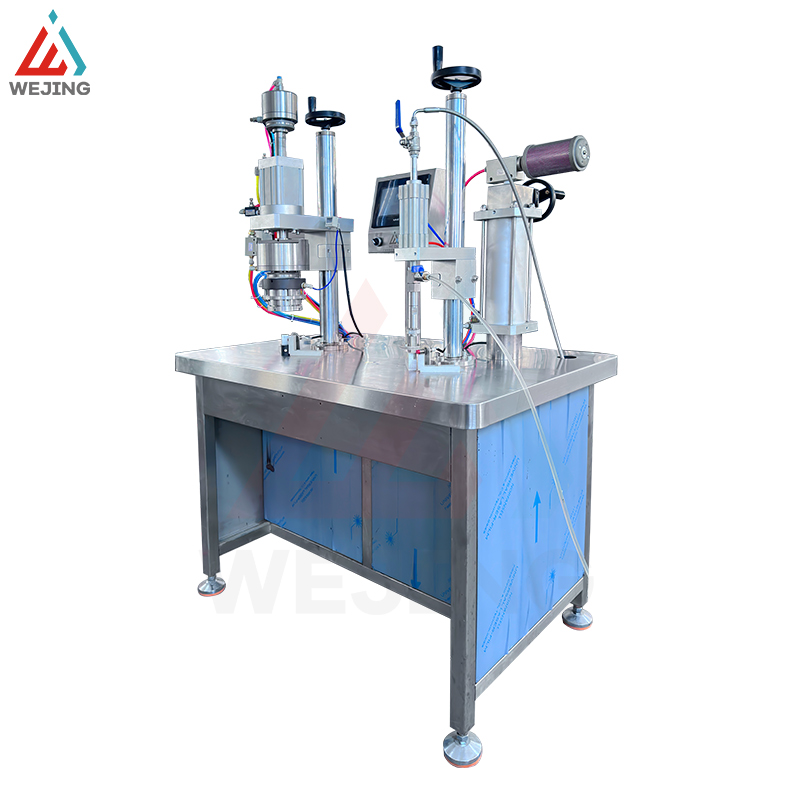

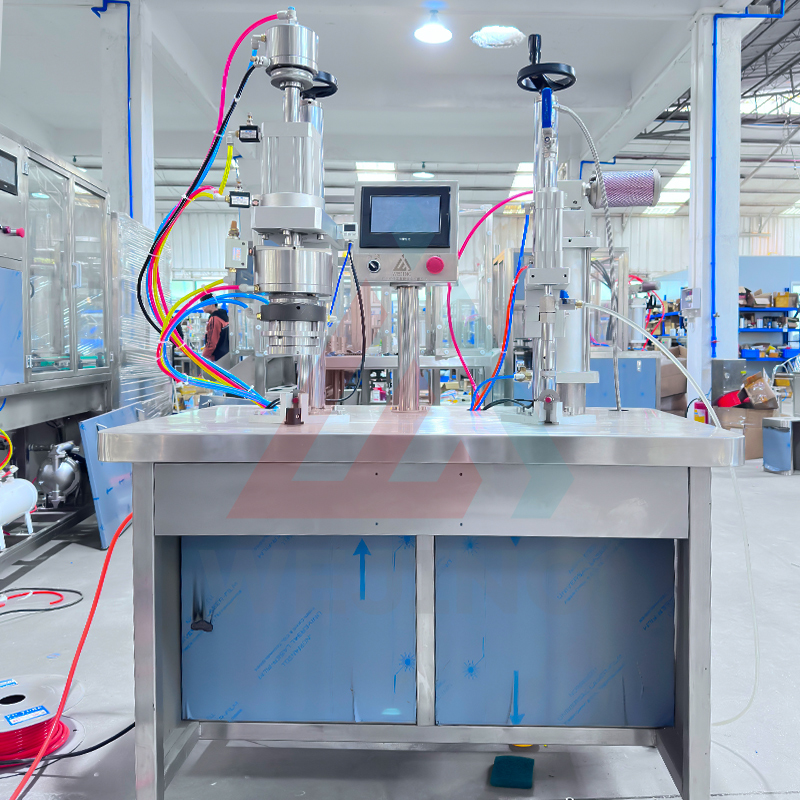

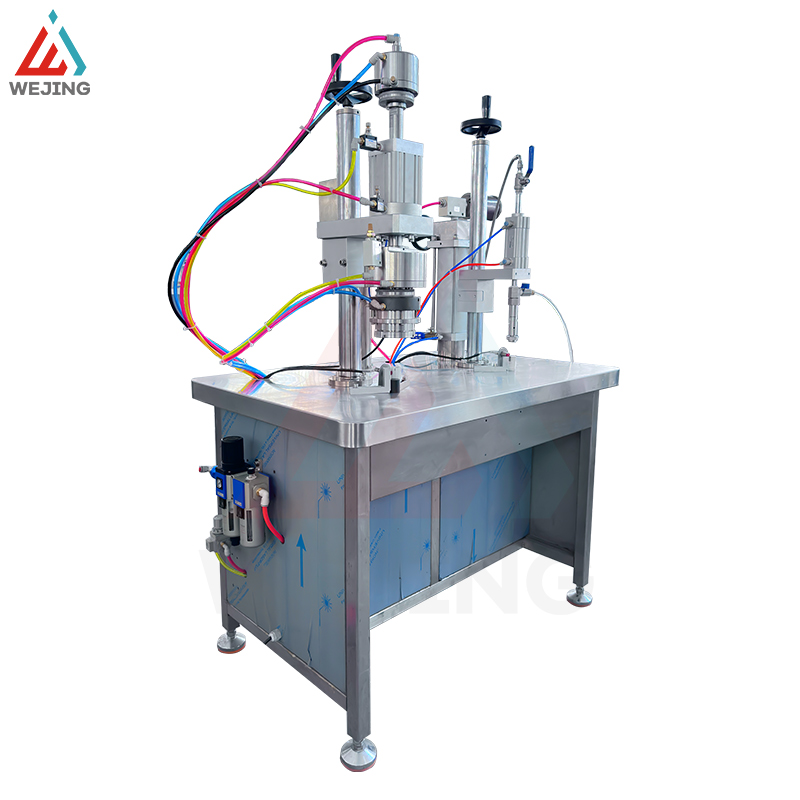

WJERZ-150 Small BOV Aerosol Can Filling Outer-crimping Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
WJERZ-150 Small BOV Aerosol Can Filling Outer-crimping Machine
Filling volume：2-60ml
Speed：600-900 cans/hour
Filling precision:≤±1%
Adjustable can: diameter (25-35mm) 、 height (58-330mm)
Availability:
Quantity:
Inquire Add to Basket

  • WJERZ-150

  • Wejing

|Product Description

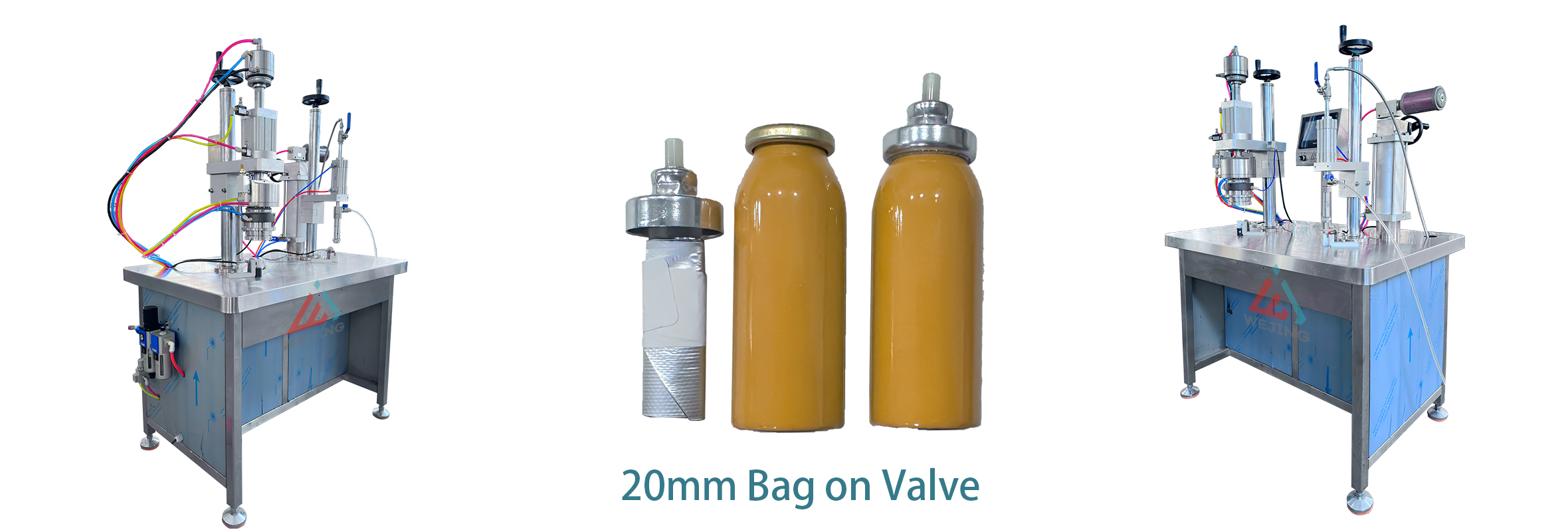

Papper-Spray-BOV-Aerosol-Filling-Outer-crimping-Machine-13

The WJERZ-150 semi-automatic bov aerosol filling machine is specifically designed for 20mm BOV valve aerosol cans, integrating gas filling (compressed air/N2), capping, and filling into one unit. Features touchscreen + PLC control, with filling speed of 10-15 cans/min, liquid filling accuracy ≤±1%, and gas filling accuracy ±0.03MPa. Highly versatile, accommodates cans with diameters 25-35mm and heights 58-330mm. One-touch cleaning function significantly boosts efficiency. Ideal for producing high-standard aerosol products like pepper spray, cosmetics, and pharmaceuticals.


|Data

NO.

Technical Parameter

Description

1

Filling capacity

600-900 cans/hour

2

Liquid filling volume

2-60ml

3

Gas filling accuracy

±0.03Mpa

4

Liquid filling accuracy

≤±1%

5

Applicable cans diameter

25-35mm ( can be customized)

6

Applicable cans height

58-330mm ( can be customized)

7

Applicable valve

20mm BOV

8

Propellant

N2, compressed air

9

Max gas consumption (m3/min)

1m3/min

10

Power (KW)

AC 220V/50HZ

11

Air source

0.6-0.7Mpa


|Feature

(1) Integrated structure minimizes equipment footprint

(2) Suitable for high-demand products such as pharmaceuticals, cosmetics, and protective sprays

(3) Simple operation reduces labor costs

(4) Stable and reliable performance ensures continuous production
