Many first time buyers of aerosol production equipment have the same questions: What materials do I need? How does the machine work? This real life factory visit dialogue between Mike (a beginner hairspray producer) and Li (sales engineer) answers all these questions. If you’re new to aerosol manufacturing, read on.
Background
Customer: Mike – planning to start his own hairspray brand, no previous experience in aerosol production.
Host: Li – sales engineer at the filling machine factory.
Location: Factory showroom & workshop.
Dialogue
1.Why does an aerosol can spray?
Mike: Li, I want to produce hairspray but I know nothing about aerosol filling. Can you explain the basic principle first?
Li: Of course. You’ve used hairspray or insecticide, right? Press the button and it sprays. The principle is very simple: the can contains liquid product (your hairspray formula) plus a compressed gas – we call it propellant. When you press the valve, the gas pushes the liquid out.
So inside the can, you need two core substances:
Liquid formulation (your hairspray liquid)
Propellant gas (e.g., propane, butane, DME, LPG)
But note: These are only what goes inside the can. To actually produce a finished aerosol product, you will also need empty cans, valves, and compressed air for the machine. I’ll give you the complete list in a moment.

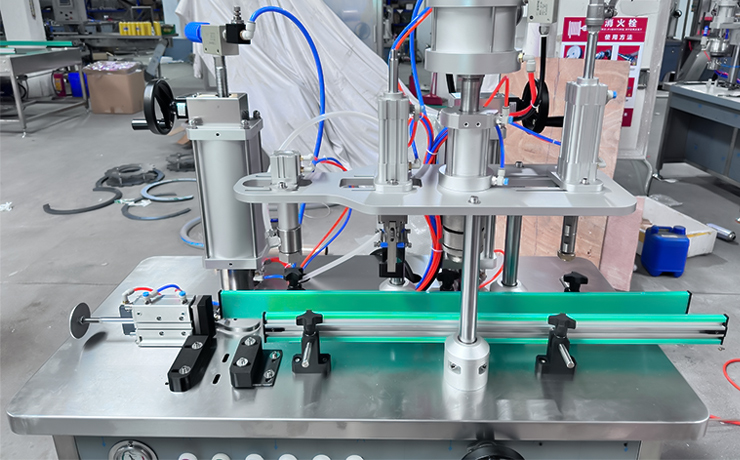

2. What is a “semi automatic 4 in 1” machine?
Mike: Why is this machine called a 4-in-1 aerosol filling machine??
Li: Our semi automatic 4 in 1 aerosol filling machine integrates all four functions – liquid filling, valve centering, sealing, and gas charging – into one unit. You only need to manually place the empty can and the valve. The machine automatically does the rest.
Operating cycle:
Place empty can (manual) → Liquid filling (auto) → Place valve (manual) → Valve centering (auto) → Sealing (auto) → Gas charging (auto)
After gas charging, you remove the finished can. Then repeat for the next can.
Mike: So the only manual steps are placing the can and the valve?
Li: Exactly. And valve centering is done automatically by the machine – you just roughly put the valve on the can opening, then the machine aligns it precisely before sealing. Much more reliable than manual centering.
3. What materials do I need to prepare before buying?
Mike: Can you give me a clear list of everything I need to have in my workshop before the machine arrives?
Li: Sure. Let me split this into two groups:
Group A – Essential for the filling process (directly used by the 4-in-1 machine)
You already know the two core substances inside the can: liquid formulation and propellant gas. On top of those, you need three more items:
① Empty aerosol cans
standard steel or aluminum, 1‑inch opening. Capacity from 30ml to 500ml, choose according to your product.
② Aerosol valves
standard 1‑inch valve (valve stem, rubber gasket, dip tube). Different products need different spray performance; we can recommend the right valve specifications.
③ Compressed air
Note: this is NOT filled into the product. It powers the machine. Our machine is fully pneumatic (no electricity). You need a workshop air compressor providing stable 0.5–0.6 MPa compressed air.
So for the filling process alone, you need five things: liquid + propellant + cans + valves + compressed air.
Group B – Post‑filling packaging materials (not used by the filler, but required for a finished product)
After the can is filled and sealed, you still need to add:
① Nozzle / actuator – snaps onto the valve stem for spraying.
② Overcap – protects the nozzle and gives a professional look.
③ Label – printed with your brand and product information.
④ Outer carton / shrink wrap – for shipping and shelf display.
These are not handled by the 4-in-1 filling machine – you will need separate manual or semi‑automatic equipment for capping, labeling, and cartoning. But you must have them in your workshop before you start full production.
Mike: Got it. So the filler only deals with the can, valve, liquid, and gas – the rest is downstream packaging.
Li: Exactly.
Mike: Where can I buy the cans, valves, and packaging supplies? Can you recommend suppliers?
Li: We can provide a list of recommended suppliers for cans and valves. For nozzles, caps, and labels, you can source locally or from packaging suppliers – we can also give some suggestions based on our other customers’ experiences.
4. What are the three pipes on the back of the machine?
Mike: I noticed three pipes on the back. What are they for?
Li: Good observation. Each pipe connects to a different source:
Raw material pipe → goes into your liquid drum, sucks up the liquid.
Propellant pipe → connects to a propellant cylinder (like a household LPG tank).
Compressed air pipe → connects to your workshop air compressor, powers the machine.
Three pipes, three jobs. Connect correctly and the machine runs. Your worker can learn in minutes.
5. Can the machine fill different can sizes? (Mike’s key question)
Mike: That’s very clear. But I have an important question – I may start with a small hairspray can (150ml) but later switch to a larger size (400ml). Can your machine handle different can diameters and heights?
Li: Absolutely. That’s a very common requirement. Our semi automatic 4 in 1 machine is designed for quick changeover.
Applicable can diameter: 40 – 70 mm
Applicable can height: 70 – 300 mm
Adjusting from one size to another takes only a few minutes. You just need to adjust the can platform height and the filling nozzles. We provide clear instructions and tools. So yes, you can run 150ml hairspray cans in the morning and 400ml in the afternoon without buying another machine.
Mike: Great! That saves me a lot of worry.
6. Key technical specifications (simple version)
Mike: What about speed and filling range? Give me the key numbers.
Li: Here you go:
Parameter | Range |
Production speed | 600 – 1200 cans/hour (depends on operator speed and fill volume) |
Liquid fill volume | 30 – 500 ml (adjustable) |
Gas fill volume | 30 – 500 ml (adjustable) |
Filling accuracy | ≤ ±1% |
Can diameter range | 40 – 70 mm |
Can height range | 70 – 300 mm |
Air source requirement | 0.5 – 0.6 MPa |
Start slow when you begin, then increase speed as your orders grow.
7. Frequently asked questions (FAQs) for beginners
Mike: I’ve never used an aerosol filling machine. Is it easy to learn?
Li: Very easy. Fully pneumatic – no electrical training needed. We provide a detailed manual and remote guidance. A typical worker can operate independently within half a day.
Mike: Does the machine need electricity? I heard aerosol workshops must avoid sparks.
Li: No electricity at all. The machine runs purely on compressed air. No electrical sparks – fully explosion proof. Safe for aerosol production.
Mike: How accurate is the filling? I worry about inconsistent can weights.
Li: Accuracy ≤ ±1%, high repeatability. Different liquid viscosities may cause tiny variations, but we can fine tune the machine for your specific formula.
Mike: Where do I buy propellant gas? Is it dangerous?
Li: Source from professional industrial gas suppliers in your local area (propane, butane, DME). We can advise on gas selection. The machine complies with aerosol safety standards. With proper ventilation and safe operation, risks are manageable.
Mike: Do I need to buy my own air compressor?
Li: Yes. The air compressor is not included with the machine. You need to provide one that delivers stable 0.5–0.6 MPa compressed air.
8. Why should a beginner choose this semi automatic 4 in 1?
Mike: Last question – why this machine instead of buying separate machines?
Li: Five reasons for beginners:
High integration – one machine does four jobs, saves space and handling.
Easy operation – manual only for placing can and valve; the rest is automatic.
Flexible – adjustable fill volumes and can sizes (40 70mm diameter, 70 300mm height).
Safe – no electricity, fully pneumatic, explosion proof.
Mike: Thank you, Li. This has been very helpful. I’ll check my expected production volume and get back to you.
Li: You’re welcome. Feel free to contact me anytime for a quote, technical drawings, or to arrange a test with your own materials.
Final note for readers
This dialogue covers the most common questions from beginners: how aerosols work, machine selection, required materials (distinguishing what goes inside the can vs. what is needed for packaging and power), operation process, changeover for different can sizes, technical specs, and safety. If you are planning to start aerosol production (hairspray, insecticide, spray paint, cleaner, etc.), we hope this guide helps you avoid costly mistakes.
Next step: Contact us for a quotation, more technical data, or to send your cans/valves/liquid for a real test run.
