Aerosol valves play a critical role in product dispensing. They control how a pressurized product leaves the container and influence spray performance, dosage, product compatibility, and ease of use.
Different aerosol products require different valve designs. Household sprays, spray paints, hair mousse, powder products, pharmaceutical sprays, and bag-on-valve (BOV) products may all require different valve configurations.
In this guide, we explain the basic structure of an aerosol valve, introduce the main classification methods, and explore common valve types and their applications.
1. What Is an Aerosol Valve?
An aerosol valve is a mechanical dispensing component mounted on a pressurized aerosol container. When the user presses the actuator, the valve opens a flow path that allows the product to leave the container. When released, the valve normally closes to help prevent leakage.
A typical aerosol valve consists of several key components:
Mounting cup: Secures the valve to the aerosol container and helps maintain a pressure-tight seal.
Valve stem: Connects the valve mechanism to the actuator and provides a passage for the product.
Valve housing: Holds the internal components and guides product flow.
Spring: Returns the valve to its closed position after actuation.
Gaskets and seals: Help prevent leakage and maintain pressure.
Dip tube: In conventional upright aerosol systems, this tube extends into the product to deliver liquid to the valve.
The exact structure varies by valve design. For example, powder valves, metered valves, and bag-on-valve systems may use specialized components to meet their dispensing requirements.
2. How Are Aerosol Valves Classified?
Aerosol valves can be classified in several ways. These categories describe different Aerosol valves can be classified according to several features:
(1) By dispensing orientation: Upright, inverted, and 360-degree valves.
(2) By dispensing volume: Continuous-spray and metered-dose valves.
(3) By stem design: Male and female valves.
(4) By mounting cup diameter: Common sizes include 1-inch (25.4 mm), 20 mm, and 13 mm valves.
These classifications describe different aspects of a valve. For example, a valve may be both a metered-dose valve and a male valve.

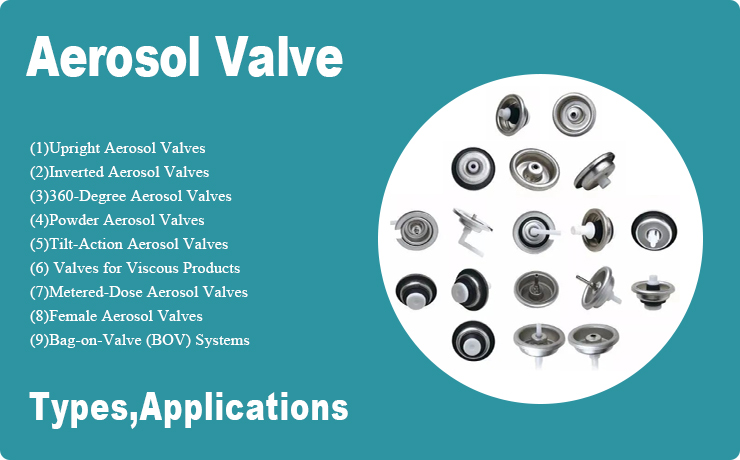

3. Common Aerosol Valve Types and Their Applications
(1) Upright Aerosol Valves
Upright valves are among the most common designs for conventional aerosol products. They are generally intended to operate when the container is held upright, allowing the dip tube to draw product from the lower part of the container.
Depending on the design, upright valves may use different actuation mechanisms, including conventional vertical-action and tilt-action configurations.
Typical applications include:
l Household cleaners and air fresheners
l Insecticides
l Automotive care products
l Industrial sprays
l Personal-care products
(2) Inverted Aerosol Valves
Inverted valves are designed for products that need to be dispensed with the container upside down.
Some designs use a ball or other internal mechanism to help control the product inlet or flow path when the container is inverted. The exact operating principle depends on the valve construction, so not every inverted valve works in the same way.
Typical applications include:
l Hair mousse and certain foam products
l Road-marking sprays
l Carpet and upholstery treatments
l Selected dust-mite control products
(3) 360-Degree Aerosol Valves
A 360-degree valve is designed to dispense product at multiple angles, including sideways or upside down, when used with a compatible package and actuator.
Different designs may use a ball mechanism or another flow-control structure to maintain product pickup as the container changes orientation. Performance depends on the valve design, formulation, propellant system, and operating conditions.
Typical applications include:
l Multi-angle household and automotive sprays
l Products used in hard-to-reach areas
l Selected personal-care products
l Specialized cleaning and maintenance sprays
(4) Powder Aerosol Valves
Powder valves are designed to dispense products in powder form. Increasing the press stroke and reducing the size of the inner washer helps remove powder from the valve stem and prevents the powder from causing blockages.
Powder products can present special challenges because particles may bridge, compact, or block narrow passages. Valve selection should therefore consider particle size, moisture sensitivity, powder flowability, and the required discharge rate.
Typical applications include:
l Powder-based personal-care products
l Selected antiperspirant formulations
l Industrial inspection powders, including certain crack-detection products
l Specialized pharmaceutical powder products
(5) Tilt-Action Aerosol Valves
Tilt-action valves open when the actuator or valve stem is tilted rather than pressed only in a straight downward direction. They can be useful when the user needs to direct the spray toward a particular area or when the package design favors angled operation.
Typical applications include:
l Directional household sprays
l Automotive and industrial products
l Certain cleaning and maintenance formulations
(6) Valves for Viscous Products
High-viscosity products require a valve with suitable flow passages and a compatible actuator. A narrow passage that works well for a thin liquid may restrict a gel, cream, or thick coating.
Depending on the formulation, a suitable valve may use a larger flow path or a specialized design to reduce blockage and support consistent dispensing.
Typical applications include:
l Thick coatings and spray adhesives
l Certain gel and cream products
l Viscous personal-care products
l Selected industrial formulations
(7) Metered-Dose Aerosol Valves
Metered-dose valves deliver a predetermined volume of product with each actuation. An internal metering chamber holds a defined amount and releases it when the valve is activated.
Unlike continuous-spray valves, the amount dispensed is designed to be controlled per actuation rather than determined mainly by how long the user presses the actuator.
Typical applications include:
l Pharmaceutical and therapeutic sprays
l Breath sprays
l Portion-controlled personal-care products
l Certain air fresheners and specialized dispensing products
(8) Female Aerosol Valves
The difference between female and male valves lies in the structure of the valve stem. The female valve retains only the standard valve stem, while the other half of the stem is located on the push button. Due to this unique design, it delivers outstanding performance in terms of spray dispersion and filling speed. The spray head and valve core are integrated into a single unit that can be removed for cleaning and replacement, effectively resolving the issue of clogging in the valve core and spray head.
Typical applications may include:
l Spray paints and coatings
l Selected high-viscosity products
l Certain industrial sprays and adhesives
(9) Bag-on-Valve (BOV) Systems
Bag-on-valve is a packaging system that separates the product from the propellant. The product is stored inside a flexible bag attached to the valve, while compressed air or nitrogen typically occupies the space between the bag and the outer container.
When the actuator is pressed, the gas pressure compresses the bag and pushes the product through the valve. Because the product is isolated from the propellant, BOV can be suitable for formulations that should not come into direct contact with conventional propellants.
Potential advantages include:
l Separation of product and propellant
l Dispensing at different angles, including upside down, with a suitable system
l Compatibility with many water-based formulations
l Use with selected liquids, lotions, creams, and gels
l Potential benefits for product protection and formulation stability
Typical applications include:
l Nasal sprays and selected pharmaceutical products
l Water-based paints and certain fire-suppression products
l Shaving gels and foam products
l Olive oil and other food sprays
l Deodorant and personal-care sprays
BOV systems require compatible bags, valves, containers, and filling processes. They are not suitable for every formulation, and product viscosity must remain within the flow capability of the selected system. Food and pharmaceutical applications also require appropriate material, hygiene, and regulatory controls.
4. How to Choose the Right Aerosol Valve
Selecting an aerosol valve requires more than identifying a product category. Before selecting a valve, consider:
Product properties: Liquid, foam, powder, gel, or adhesive.
Dispensing requirements: Spray pattern, output rate, dosage, and operating angle.
Compatibility: Product, valve materials, seals, and container.
Container specifications: Mounting cup size, opening dimensions, and pressure requirements.
Filling method: Conventional aerosol filling or BOV filling.
Testing the complete package with the actual formulation is essential to confirm reliable dispensing and prevent leakage.
5. How Aerosol Valves Relate to Filling Equipment
Valve selection affects the filling process, crimping requirements, and finished-product quality. Conventional aerosol lines typically involve product filling, valve placement and crimping, propellant filling where applicable, and inspection. BOV products may require a different filling sequence.
When choosing an aerosol filling machine, manufacturers should confirm valve specifications, container dimensions, filling method, and required production capacity to ensure equipment compatibility.
Conclusion
Aerosol valves come in different designs to meet specific dispensing needs. The right choice depends on product properties, spray performance, container design, and filling requirements. Matching the valve to the formulation and production equipment helps improve dispensing reliability and manufacturing efficiency.
