|Machine Overview

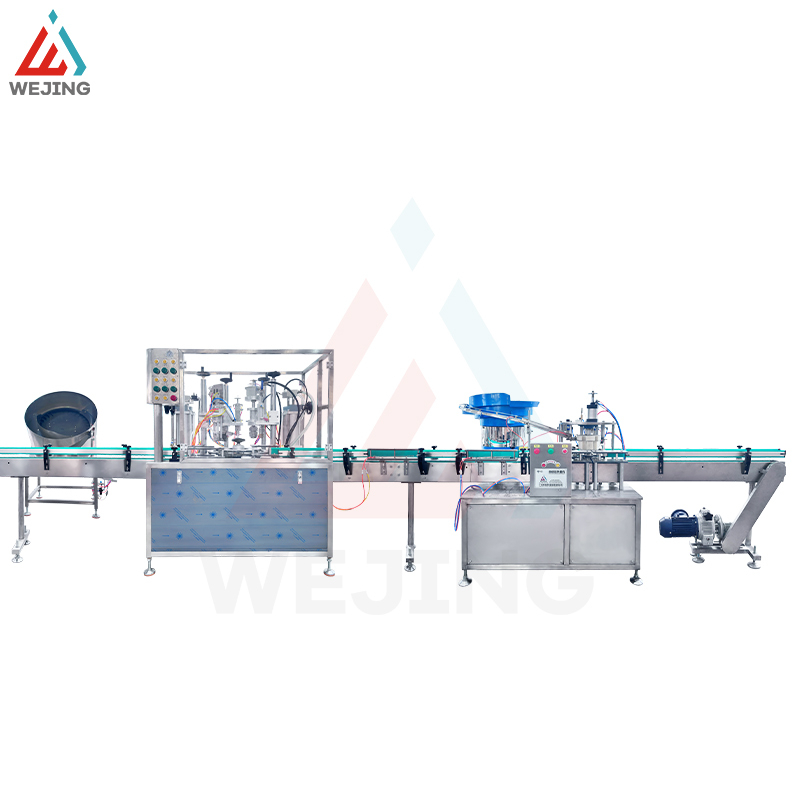

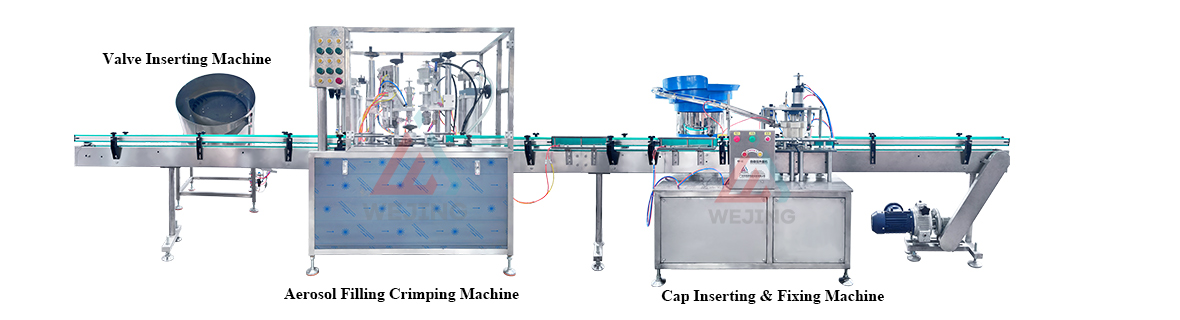

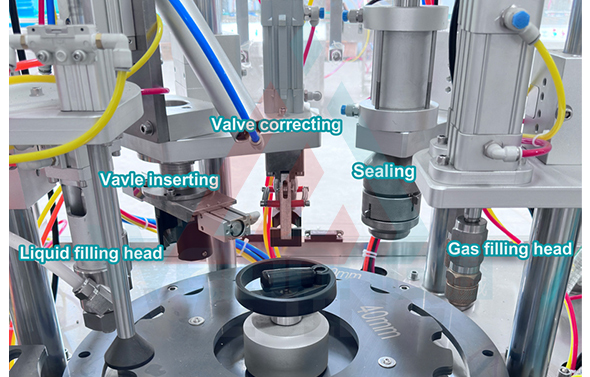

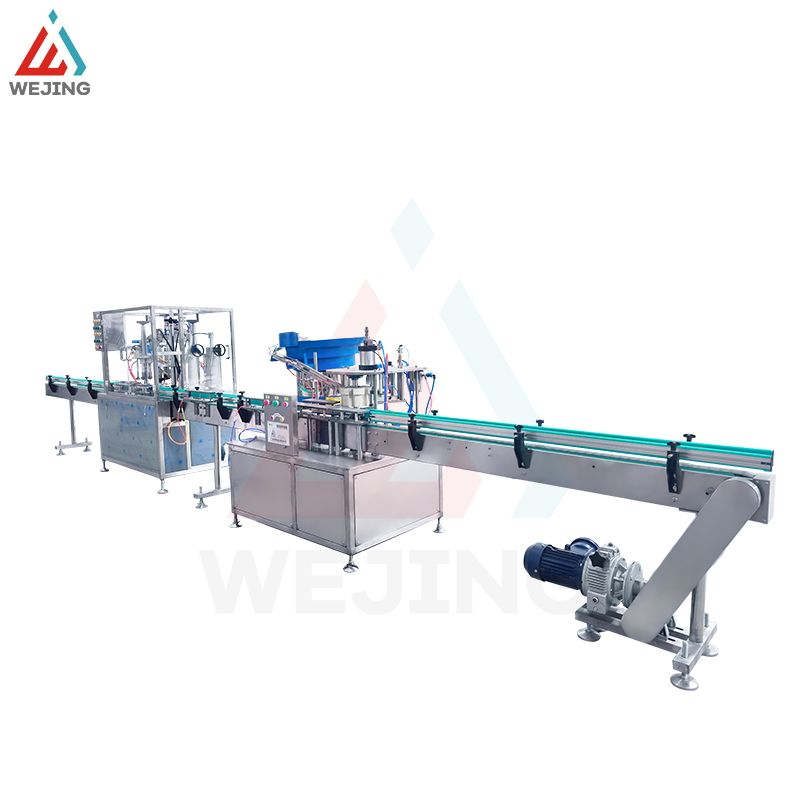

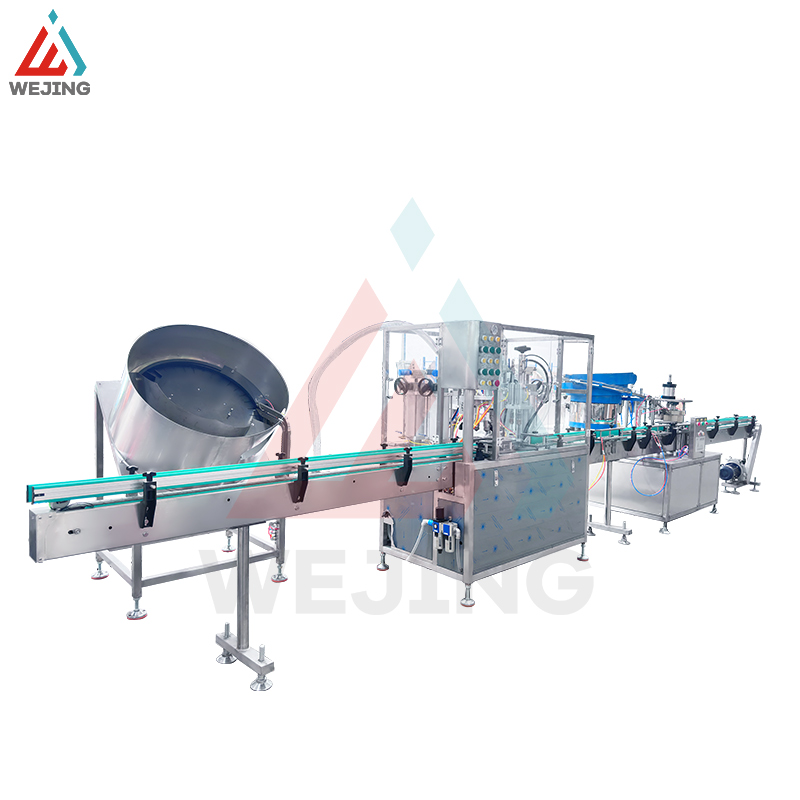

QGJ50 Automatic aerosol filling machine combined liquid filling &valve inserting & valve centering &sealing &gas filling into one working table.It also could equipped with automatic weight checker, automatic water bath leakage tester, automatic actuator presser and automatic cap presser.
|Technical Parameters
| Technical Parameter | Description |
| 1 | Filling capacity | 40-50 cans/min |
| 2 | Liquid filling volume | 10-600ml( can be customized) |
| 3 | Gas filling volume | 10-600ml( can be customized) |
| 4 | Filling heads | 2 heads |
| 5 | Filling accuracy | ≤±1% |
| 6 | Applicable cans diameter (mm) | 35 - 70( can be customized) |
| 7 | Applicable cans height (mm) | 80 - 300( can be customized) |
| 8 | Applicable valve | 1 inch |
| 9 | Working pressure (Mpa) | 0.6 - 0.8 |
| 10 | Max gas consumption (m3/min) | 5 |
| 11 | Power (KW) | 7.5 |
| 12 | Material | SS304 ( some parts can be SS316) |

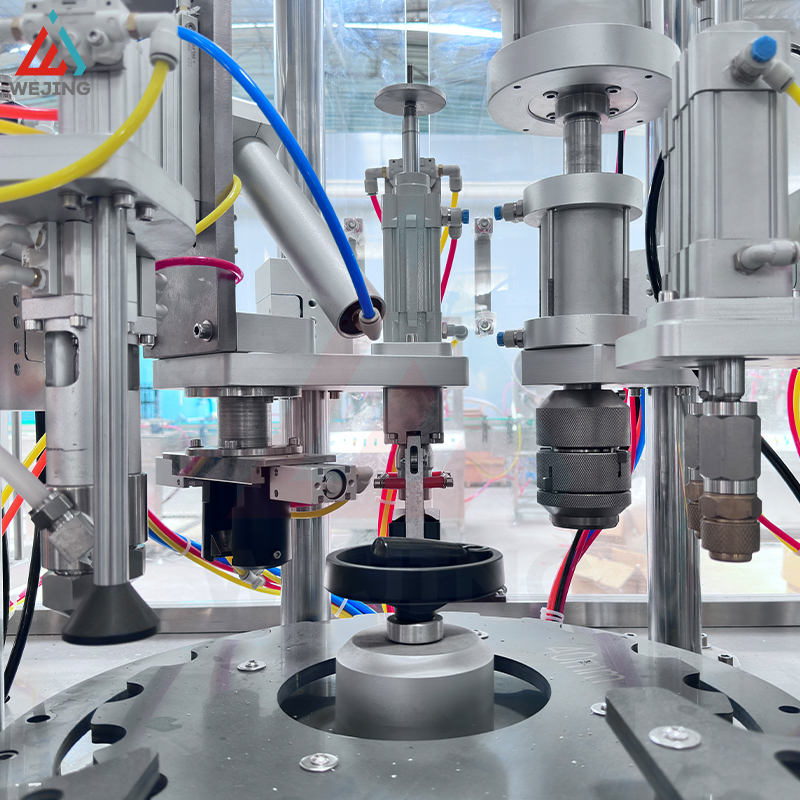

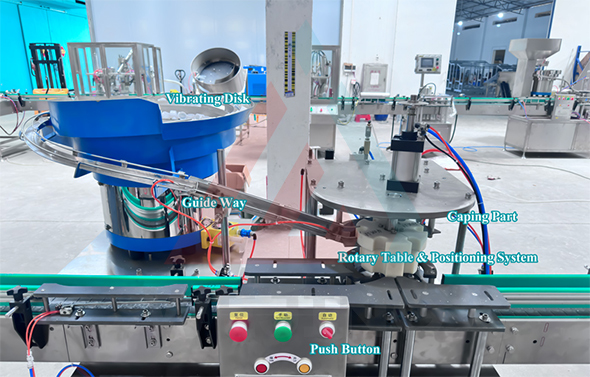

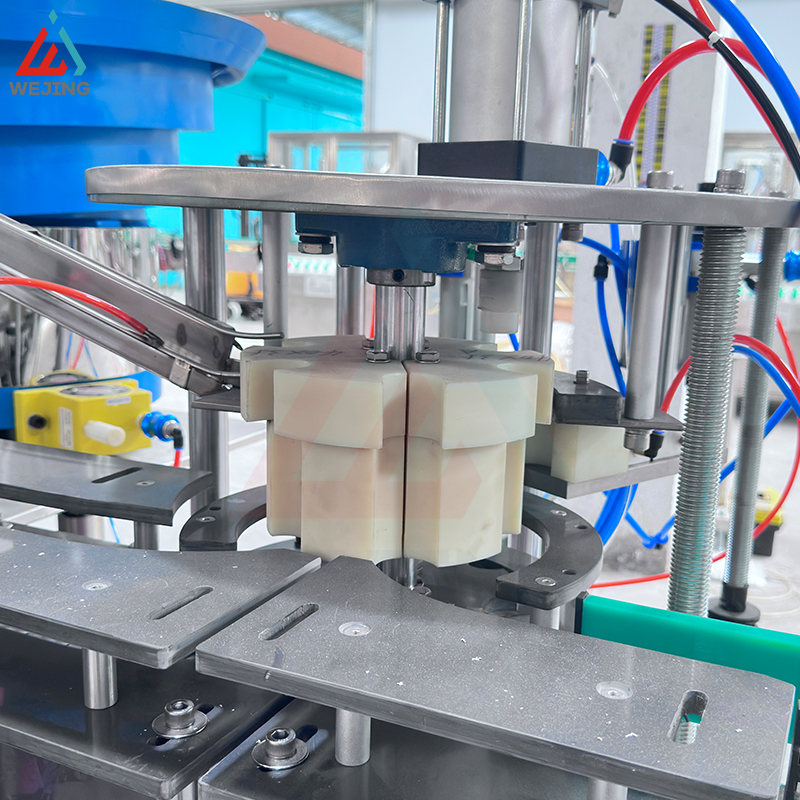

|Machine Detail
|Product Advantage
(1)This machine running stably,reliably,less failure,longer life.
(2)Higher efficiency and less labor cost
(3)Higher precision,more stable filling quality
(4)The main pneumatic parts and seal rings adopts famous brand,with good reliability and wear resistance
(5)The production line use explosion-proof motors,the rest are driven by pneumatic controlled,could meet the safety requirements.
(6)Auto up-down height adjustment function,greatly increasing production and changing star wheel speed.
|Product Uses

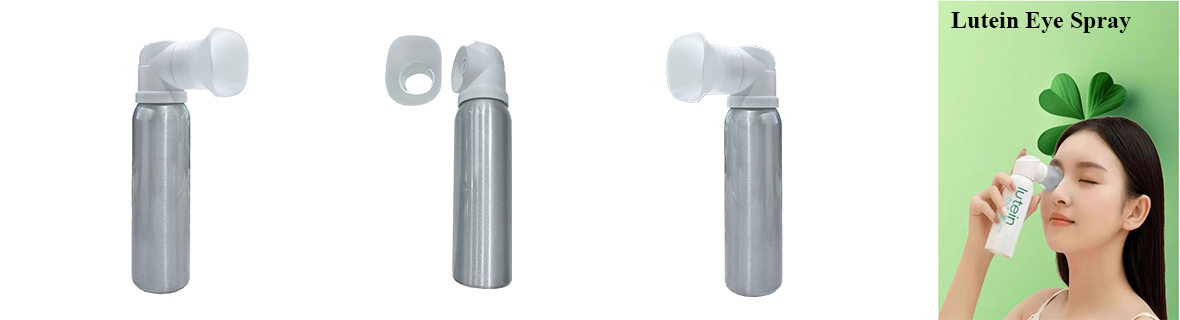

This Automatic aerosol filling line applied to Lutein-Eye-Spray
|
