Main Features：
1. The practicability of the equipment: The single machine designed and manufactured by Wejing Company has reliable quality, long service life, low failure rate and convenient maintenance. It can run for more than three to five years without failure under normal use.
2. The operability of the equipment: It is easy to operate, easy to learn and master, suitable for people with different educational levels. At the same time, the equipment is highly standardized and has a strong matching ability, which can easily and quickly replace various parts and components of different specifications.
3. Appearance of the equipment: The appearance design of the equipment is beautiful and generous, in line with ergonomic principles. No matter in terms of material, shape, color, or size ratio, we strive to be more humanized design, so that the appearance and internal quality of the equipment and mechanical performance. , achieve the most perfect unity.
4. Advanced equipment:

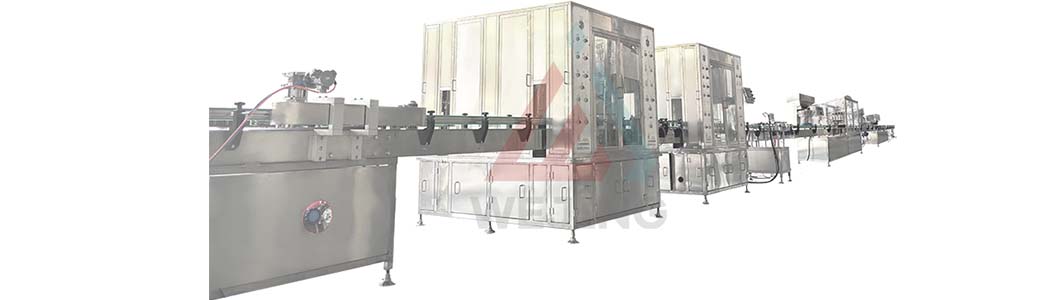

The equipment realizes automatic unmanned operation from automatic bottle feeding,can detector head,insert valve, liquid filling, sealing, gas filling, actuator fixed and capping, inkjet printing,tube stick, packing, box packaging and other processes.Customers can customize according to their needs and budget.
Technical Parameters：
Technical Parameter | Description |
Voltage | 380V/50HZ( can be customized ) |
Dimension(L*W*H) | 22000*4000*2000mm |
Production speed | 130-150 cans/min |
Propellant Type | The type of propellant used in the aerosol product (e.g., LPG, DME, N₂, CO₂, R134a, etc) |
Noise control | ≤80 dB |
Can Type | Tinplate can or aluminum can |
Driven Type | Pneumatic control |
Material | SS304 ( some parts can be SS316) |
Warranty | 1 year |
Key Selling Points | High speed fully automatic high production |
Maintenance Requirements | Recommended maintenance procedures and schedules |
Certifications and Standards | CE&ISO9001 |
Filling accuracy | ≤±1% |
Detailed Images：
Can feeding Machine:
This machine can help to arrange bottles in order and make the production can be processed smoothly, improves working efficiency.
Main parameter:
Speed : ≥120 cans/min
Transmission part : reduction motor with variable frequency drive
Size:1600*1680*850 mm

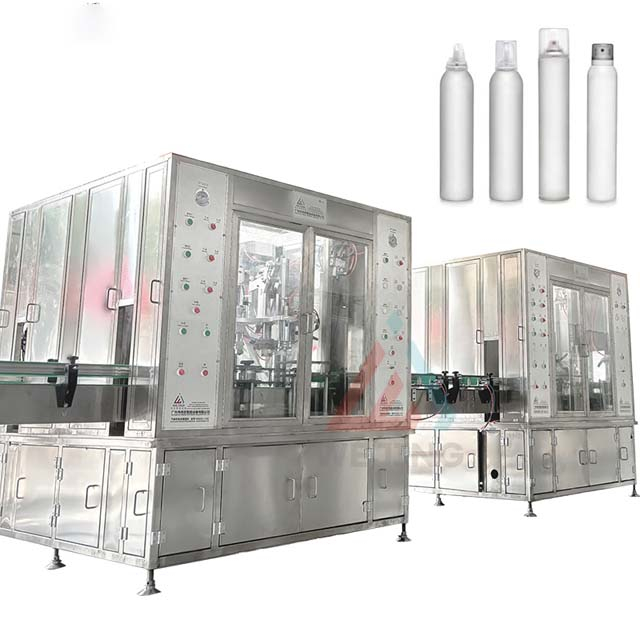

Filling Sealing Machine:
It is provided with 8 liquid filling heads and 8 gas filling heads ,all are under pneumatic control, and each head can be controlled separately. Also with a can detector head,an insert valve, a centralized valve and an sealing head.
Main parameter:
Amount of each filling head:10-300ml
Total filling volume:30-1200ml
Weight checking machine:
This machine is used for online weight inspection of each can inaerosol production line.
Main parameter:
Speed : ≥120 cans/min
Size : 1850*880*1550mm
Actuator Fixed Machine:
This machine used for spraying actuator of aerosol products.
Main parameter:
Speed : ≥120 cans/min
Control : Pneumatic control
Detection ：Reject cans which didn’t assemble the actuator
Size：960*860*1880mm
Auto cap presser machine
The vibrating coil will arrange the caps automatically, sending the capers to the automatic pressing machine. The machine can increase the automation and reliability of the line, increase the productivity.
Main parameter:
Speed : ≥120 cans/min
Suitable can diameter：35-70mm
Suitable can height：70-330mm
Control：Electricity control
Alarm system：Equipped with uncovered alarm device
Size：1900*1700*850mm
Products：
1. Daily care:
Sunscreen cream, perfume, shaving foam.With spray, daub way normally, contact with human body surface, in order to achieve whitening, prevent bask in protect wet, clean, hairdressing, clear peculiar smell wait for a purpose.
2. Industrial chemicals:
Aerosol filling machine used for a variety of chemical products filling, common spray paint, release agent, silicone lubricants, such as foam.
3. Automobile supplies:
Car care products are more and more common, such as car wax, carburetor cleaning agent, rust lubricant, screw looser agent, glass water, car wash fluid, and so on.
4. Food and drug:
Common products include yunnan baiyao, salbutamol aerosol, edible seasoning spray, etc.
Our Service：
1. Provide 24-hour service hotline for automatic aerosol filling Machine.
2. Reply and find out solution within the shortest time according to customer's requirement.
3. Provide on call service to help customer solve problems.
4. Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.
5. Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.
6. Provide one year guaranty and lifetime maintenance.
7. One-stop service for workshop decoration, selecting machines and installation service etc.
