Main Features：

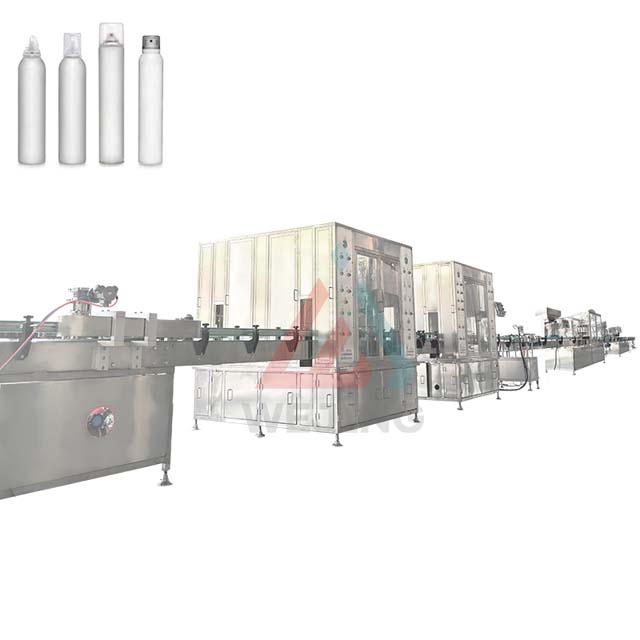

1. Full automatic machine contain cans arranging machine, rotary liquid filling machine, valve inserting machine, rotary sealing and gas filling , automatic weight checker, water bath, nozzle presser, cap presser, ink jet printer, packing table, etc.
2. It has intuitive and convenient operation, measuring accurate.
3. Fully in accordance with the GMP standard production and passed CE certification.
4. No bottle no filling.
5. High stable, High speed, High precision.
Technical Parameters：
Technical Parameter | Description |
Voltage | 380V/50HZ( can be customized ) |
Dimension(L*W*H) | 22000*4000*2000mm |
Production speed | 130-150 cans/min |
Propellant Type | The type of propellant used in the aerosol product (e.g., LPG, DME, N₂, CO₂, R134a, etc) |
Noise control | ≤80 dB |
Can Type | Tinplate can or aluminum can |
Driven Type | Pneumatic control |
Material | SS304 ( some parts can be SS316) |
Warranty | 1 year |
Key Selling Points | High speed fully automatic high production |
Maintenance Requirements | Recommended maintenance procedures and schedules |
Certifications and Standards | CE&ISO9001 |
Filling accuracy | ≤±1% |
Detailed Images：
Can feeding Machine:
The machine is droved by an Ex-proof motor for the cans transportation and positioning, with this machine, there will be no squeezed cans, blocked cans or inverted cans.
Main parameter:
Speed : ≥120 cans/min
Transmission part : reduction motor with variable frequency drive
Size:1600*1680*850 mm
Filling Sealing Machine:
It is provided with 8 liquid filling heads and 8 gas filling heads ,all are under pneumatic control, and each head can be controlled separately. Also with a can detector head,an insert valve, a centralized valve and an sealing head.
Main parameter:
Amount of each filling head:10-300ml
Total filling volume:30-1200ml
Weight checking machine:
This machine adopts advanced weight sensor with special detection device. Person to machine interface, related fault and waiting for feeding indicator, easy to operate, first- class conveying design which make product run stable, kick out the unqualified product in two direction to make sure the quality of product. It has advantage of fast speed, high accuracy and good stability.
Main parameter:
Speed : ≥120 cans/min
Size : 1850*880*1550mm
Actuator Fixed Machine:
This machine places the actuators to the cans and press automatically.
Main parameter:
Speed : ≥120 cans/min
Control : Pneumatic control
Detection ：Reject cans which didn’t assemble the actuator
Size：960*860*1880mm
Auto cap presser machine
The vibrating coil will arrange the caps automatically, sending the capers to the automatic pressing machine. The machine can increase the automation and reliability of the line, increase the productivity.
Main parameter:
Speed : ≥120 cans/min
Suitable can diameter：35-70mm
Suitable can height：70-330mm
Control：Electricity control
Alarm system：Equipped with uncovered alarm device
Size：1900*1700*850mm
Products：
Home Care: Air freshening agent, Insect repelling product, Spray for furniture, Insect deterrent, Leather spray solution, Toilet spray substance, Glass spray fluid.
Personal Care: Fragrance, Odor eliminator, Hair spray product, Shaving gel/foam agent, Mouth spray item, Makeup spray material, Self-defense spray device, Police spray implement.
Healthcare: Pharmaceutical spray substances, Medical oxygen supply, Inhalation devices, Wound spray solutions, High-purity oxygen gas, Food spray preparations.
Other industries: Spray painting material, PU foam substance, Refrigerant gas type, Butane gas supply, Fire extinguisher device, Anti-rust spray solution.
FAQ：
1. What kinds of aerosol products can an automatic filling machine deal with?
This sort of machine is capable of proficiently handling a wide range of aerosol products, covering from daily personal care necessities, household cleaning sprays, to specialized pharmaceutical formulations.
2. Is an automatic aerosol filler capable of adapting to cans of diverse dimensions?
Yes, surely, the majority of models are designed to fit various can sizes, although minor adaptations might sometimes be necessary.
3. How does the machine guarantee accurate filling measurements?
Through making use of precise valve technology, sensitive sensors, and advanced PLC control systems to carefully measure and control the flow of the product.
4. Are these machines safe for filling flammable substances?
Yes, provided that they are certified explosion-proof and strengthened with appropriate safety features to reduce risks.
5. Can the machine detect and reject cans that are either insufficiently filled or overly filled?
Some models actually have integrated weight-inspection systems that are able to identify and discard cans that do not meet the specified filling requirements.
