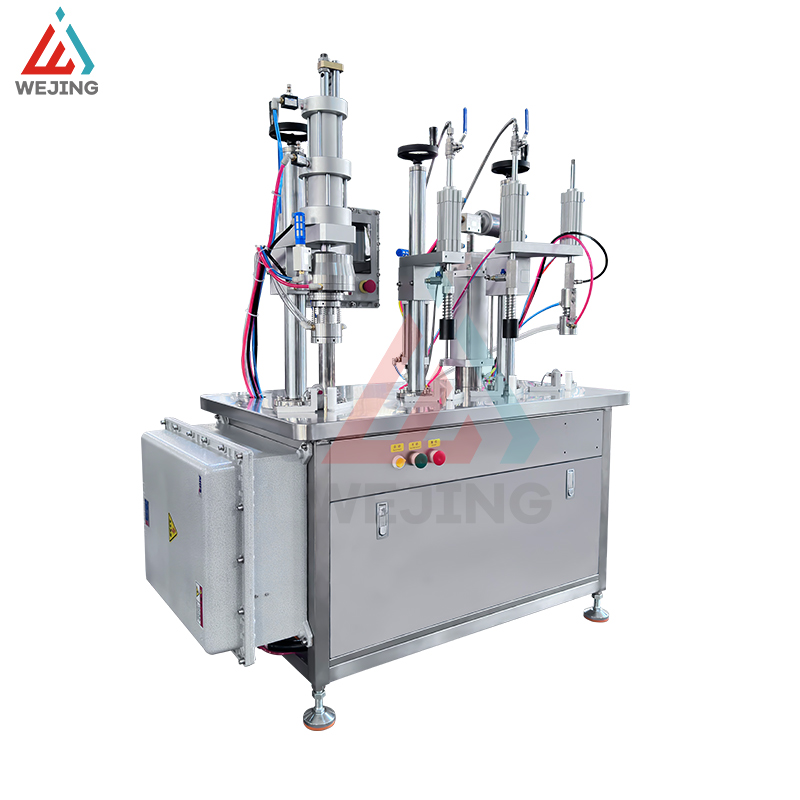

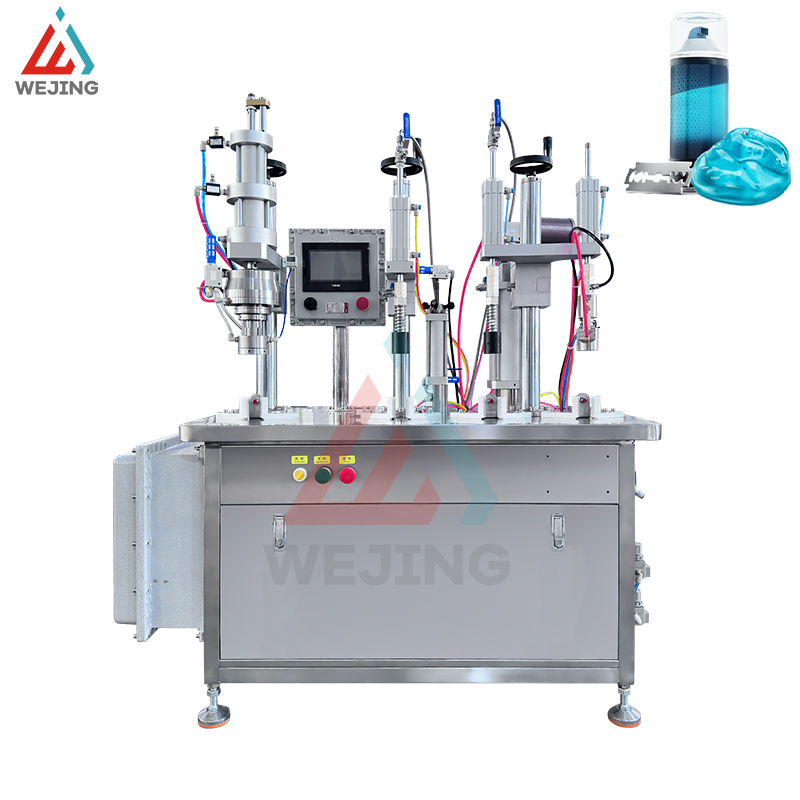

This machine combines the vacuumizing and compressing and filling the air or nitrogen andsealing intoone unit,and then fill the shave gel material and pentane into the container. It isspecially used shavegel production and paste and pentane will mix at ration and fill simultan-eous,itis easy to operate, and good air-tightness and precise flling and so on ,itis new generation of binary aerosol packing machinesince the binary packing machine for paste typeproduct
|Data
NO. | Technical Parameter | Description |
1 | Filling capacity | 300-600 cans/hour |
2 | Liquid filling volume | 30-650ml |
3 | Gas filling accuracy | ±0.03Mpa |
4 | Liquid filling accuracy | ≤±1% |
5 | Applicable cans diameter | 35-70mm ( can be customized) |
6 | Applicable cans height | 70-330mm ( can be customized) |
7 | Applicable valve | 20mm BOV |
8 | Propellant | N2, compressed air |
9 | Max gas consumption (m3/min) | 1m3/min |
10 | Power (KW) | AC 220V/50HZ |
11 | Air source | 0.6-0.7Mpa |
12 | Pentane adjustment amount | 5-60ml |
|Feature
(1) The paste material and pentane are mixed and filled simultaneously in precise quantities and fixed proportions, ensuring thorough blending for superior foaming performance.
(2) Eliminates the need for cold mixing, reducing energy consumption, minimizing equipment footprint, and enhancing production efficiency.
(3) Equipped with PLC program control, featuring user-friendly touchscreen operation and fully automatic adjustment with counting functionality, thereby reducing labor intensity.
