A vacuum emulsifying mixer is a specialized machine used for mixing, homogenizing, emulsifying, heating, cooling, and liquid or semi-solid materials. It is widely used in the cosmetics, personal care, pharmaceutical, food, and chemical industries.

Compared with conventional mixing tanks, a vacuum emulsifying mixer combines high-shear homogenization and vacuum processing in one system. This makes it particularly suitable for products such as creams, lotions, ointments, gels, toothpaste, and other high-viscosity or emulsified products.

How Does a Vacuum Emulsifying Mixer Work?

The working process of a vacuum emulsifying mixer generally includes mixing, heating, vacuuming, homogenizing, cooling, and discharge.

First, raw materials are prepared according to the formulation. For products containing oil and water phases, separate oil and water pots can be used to heat and mix the ingredients before transferring them into the main emulsifying tank.

Inside the main tank, the agitator continuously circulates the materials. At the same time, the heating or cooling system controls the product temperature according to the production process.

The vacuum system then creates a reduced-pressure environment inside the tank. This helps reduce air entrainment and remove bubbles generated during mixing and homogenization.

The homogenizer provides high-speed shear to break down droplets and improve the dispersion and uniformity of the product. After the required processing time, the product is cooled to the desired temperature and discharged for filling or further processing.

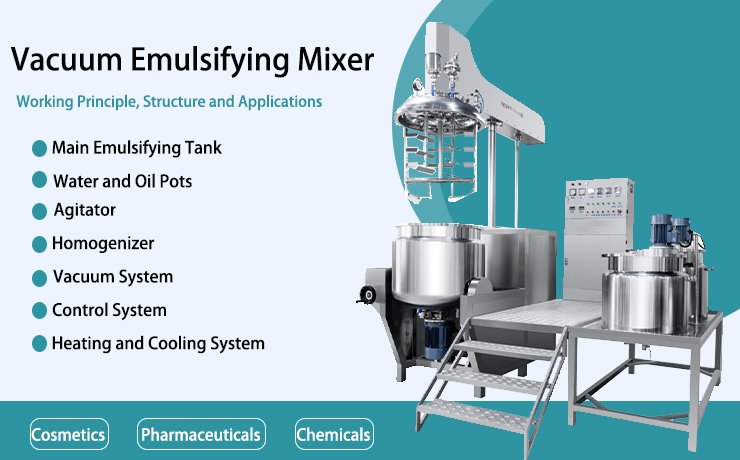

Main Components of a Vacuum Emulsifying Mixer

A typical vacuum emulsifying mixer consists of several key systems:

1. Main Emulsifying Tank

The main tank is the core processing vessel where mixing and homogenization take place. It is usually manufactured from sanitary stainless steel and can be equipped with a heating and cooling jacket.

2. Water and Oil Pots

The water pot and oil pot are used to separately prepare the water and oil phases. They can include independent heating and mixing systems depending on the formulation.

3. Agitator

The agitator provides continuous mixing and material circulation. Different agitator designs can be selected according to product viscosity and processing requirements.

4. Homogenizer

The homogenizer is responsible for high-shear emulsification. It helps reduce droplet size, improve dispersion, and produce a smoother and more uniform product.

5. Vacuum System

The vacuum system normally includes a vacuum pump, valves, piping, and vacuum control components. It helps remove entrained air from the product during processing.

6. Heating and Cooling System

A jacketed tank can be used for heating and cooling. Depending on the factory's utilities and production requirements, electric or steam heating can be selected.

7. Control System

The electrical control system allows operators to control and monitor important parameters such as mixing speed, homogenizing speed, temperature, vacuum, and processing time.

What Are Vacuum Emulsifying Mixers Used For?

Vacuum emulsifying mixers are commonly used for manufacturing:

l Face and body creams

l Lotions and emulsions

l Sunscreen products

l Hair conditioners

l Ointments and pharmaceutical creams

l Gels

l Toothpaste

l Selected food emulsions

l Other high-viscosity products

The actual equipment configuration should be selected according to the formulation, viscosity, batch size, homogenization requirements, and production process.

How to Choose the Right Vacuum Emulsifying Mixer?

When selecting a vacuum emulsifying mixer, consider more than just the tank capacity. Important factors include working volume, product viscosity, homogenizing power, agitator design, heating method, vacuum requirements, material of construction, and automation level.

For example, high-viscosity creams may require a stronger mixing system and suitable scraper design, while pharmaceutical or cosmetic production may require sanitary construction and higher surface finishing standards.

Conclusion

A vacuum emulsifying mixer integrates mixing, homogenization, vacuum deaeration, heating, and cooling into one production system. Its main components include the emulsifying tank, agitator, homogenizer, vacuum system, heating/cooling system, water and oil pots, and control system.

Choosing the right configuration according to the product and production process can help improve mixing efficiency, product consistency, and production stability.

Wejing Machinery provides vacuum emulsifying mixers with different capacities and configurations for cosmetic, personal care, pharmaceutical, food, and chemical applications.
