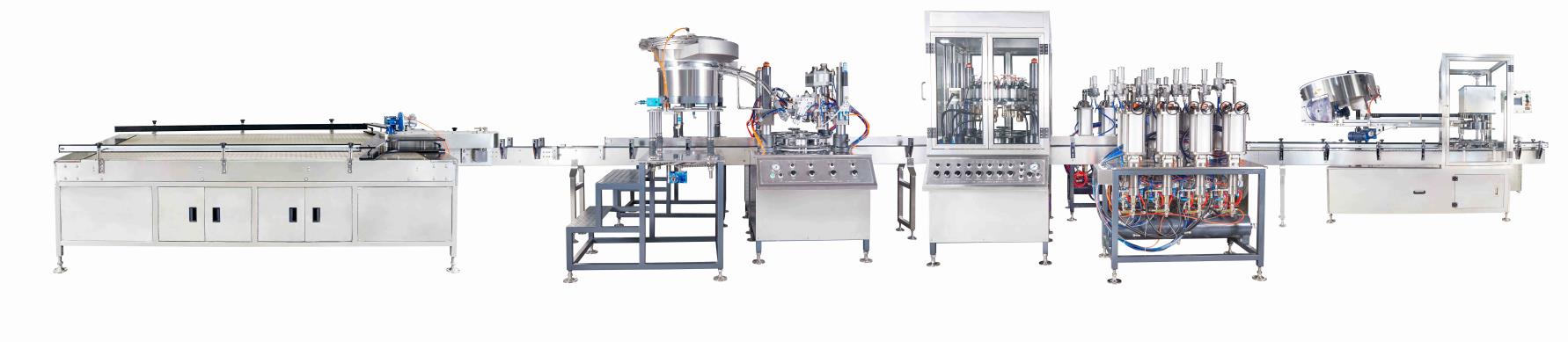

High speed automatic aerosol filling production line is composed of double rotary table twelve head Liquid filling with Valve inserting machine,rotary table Crimping with ten head Gas filling machine,Compressed air piston pump,conveyor belt,etc.
Technical Parameter:
Technical Parameter
Description
Voltage
380V
Dimension(L*W*H)
22000*4000*2000mm
Filling accuracy
≤±1%
Production speed
130-150 cans/min
Propellant Type
The type of propellant used in the aerosol product (e.g., LPG, DME, N₂, CO₂, R134a, etc)
Noise control
≤80 dB
Packaging Type
Tinplate can or aluminum can
Driven Type
Pneumatic control
Material
SS304 ( some parts can be SS316)
Warranty
1 year
Key Selling Points
High speed fully automatic high production
Maintenance Requirements
Recommended maintenance procedures and schedules
Certifications and Standards
CE&ISO9001
Filling accuracy
≤0.1%

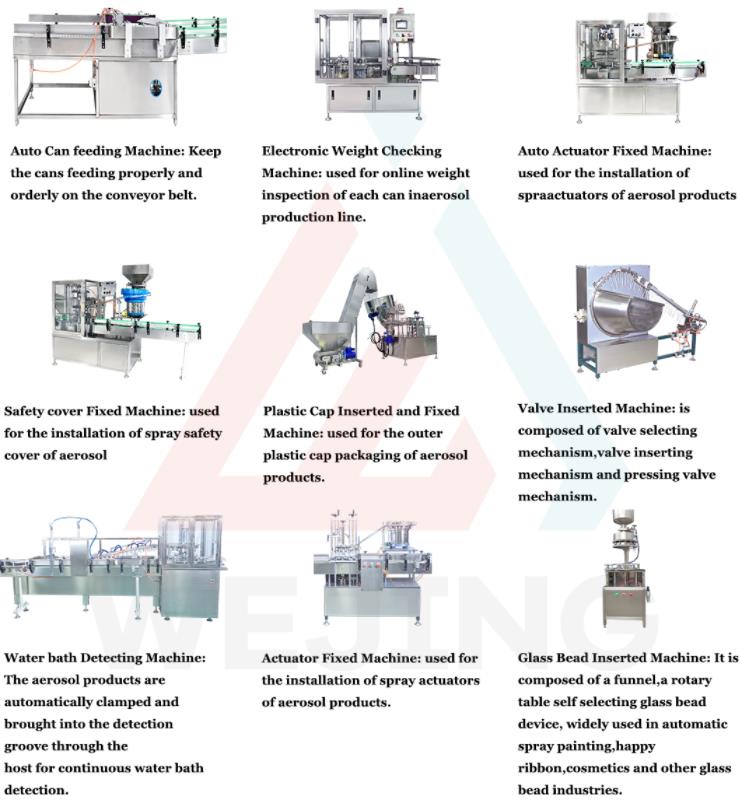

Detailed Images:
Applications:
1. Car care: Used for filling aerosol products such as car cleaning agents, polishing agents, waxes, etc. 2. Home cleaning: Fill furniture polishing agents, glass cleaning agents, air fresheners, and other home cleaning aerosols. 3. Personal care: It is used to fill personal care aerosols such as perfume, hairdressing products and skin care products. 4. Industrial field: can be used for filling lubricants, adhesives, rust inhibitors and other industrial aerosols. 5. Agriculture: Suitable for filling pesticides, plant protectants, herbicides and other agricultural aerosols.
Semi Automatic Aerosol Filling Machine
Discription:
Semi automatic aerosol filling machine is composed of 300 to 600ml Liquid filling machine,Crimping machine,300ml Gas filling machine,and 30 type Compressed air piston pump.
Technical Parameter:
Capacity
600-1200 cans/ hour, depending on filing volume
Liquid filling capacity
30-500ml(can be adjustable)
Gas filling capacity
30-500ml(can be adjustable)
Filling accuracy
≤±1%
Applicable aerosol can diameter
40-70mm
Suitable aerosol can height
70-300mm
Air source
0.5-0.6Mpa

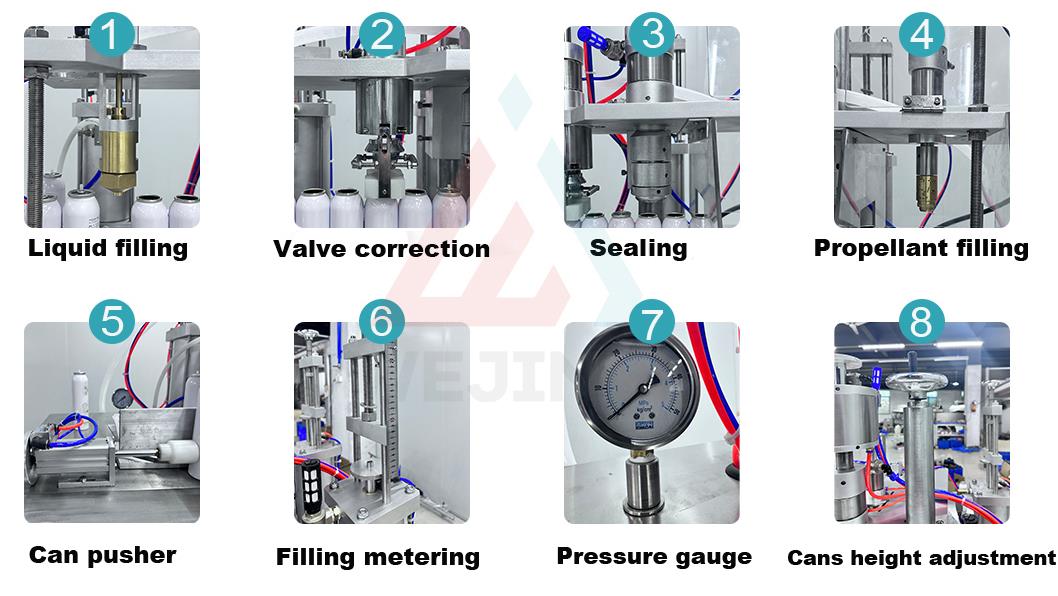

Detailed Images:
Application:
This filling machine can be widely used in the production of various aerosol products, such as pesticides, air fresheners, car care products, etc. Its high efficiency and versatility can help enterprises greatly improve production efficiency and reduce production costs, while also ensuring product quality and stability. In addition, the equipment also has the advantages of simple operation and easy maintenance, which is very suitable for small and medium-sized enterprises.

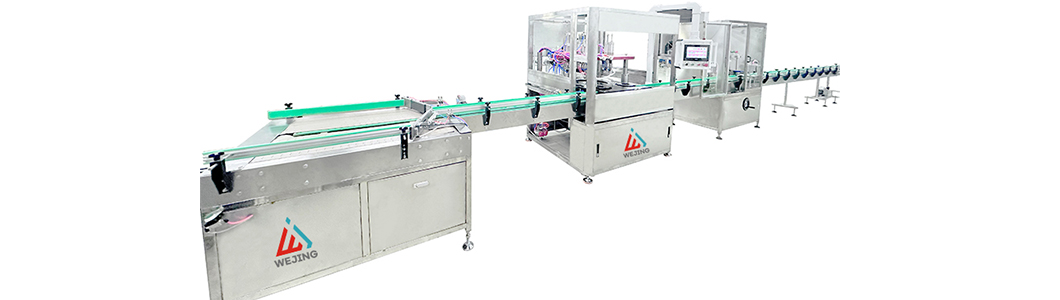

Full Automatic BOV Bag On Valve Aerosol Filling Machine
Discription:
The Fully Automatic Aerosol Filling Machine is designed for the efficient and precise filling of air freshener and insecticide sprays. This advanced machine features fully automated operation, ensuring high productivity and consistent quality. It is engineered for reliability and ease of use, enhancing the production efficiency of air freshener and insecticide spray manufacturers.
Technical Parameter:
Filling capacity (cans/min)
45-60cans/min
Liquid filling volume (ml)
10-300ml/head
Gas filling accuracy
≤±1%
Liquid filling accuracy
≤±1%
Applicable cans diameter (mm)
35-70 ( can be customized)
Applicable cans height (mm)
70-300 ( can be customized)
Applicable valve (mm)
25.4 (1 inch)
Propellant
N2, compressed air
Max gas consumption (m3/min)
6m3/min
Power (KW)
AC 380V/50HZ
Air source
0.6-0.7Mpa

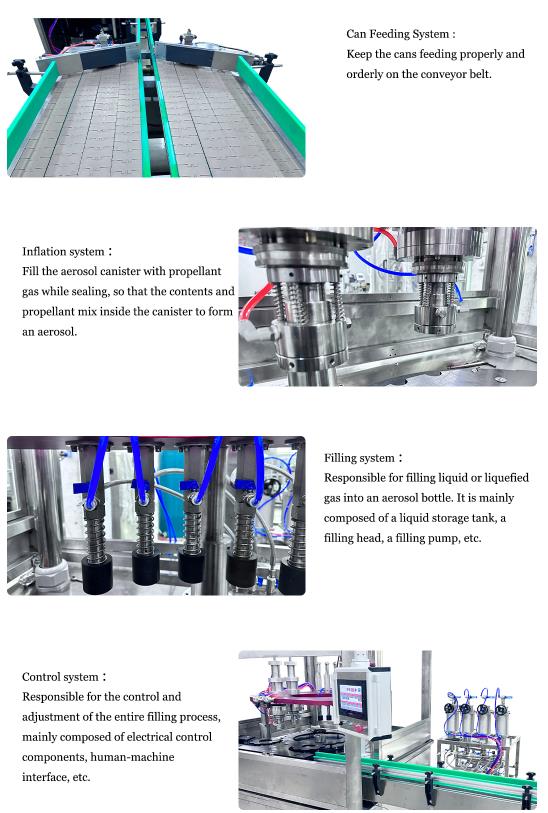

Detailed Images:
Applications:
The Automatic Bag on Valve Aerosol Spray Gas Filling Machine Line can be widely applied in various fields. It is ideal for the production of aerosol sprays in industries such as cosmetics, household chemicals, and pharmaceuticals. This machine line ensures accurate gas filling and packaging, providing high-quality and efficient solutions for your production needs. Whether for personal care products, household cleaners, or medicinal sprays, this filling machine line can meet your requirements. Its automated operation and precise control contribute to improving production efficiency and product quality.
Semi Automatic BOV Bag On Valve Aerosol Filling Machine
Discription:
Semi automatic bag on valve aerosol filling machine is an efficient filling equipment for packaging products of aerosols. The machine has a beautiful appearance, programmable control by a microcomputer (PLC), and photoelectric sensing.
This machine is a device that fills compressed air into a tank, seals the valve with a bag, and fills the raw material into the bag inside the tank, completely isolating the raw material from the tank. The propellant is replaced by compressed air (purified) instead of propane liquefied gas, dimethyl ether, etc., thus solving the problem of leakage caused by raw material corrosion of the tank. When in use, open the valve, and the compressed air pressure inside the tank will force the bag to press the raw materials out of the tank. When the raw materials are completely pressed out, the compressed air inside the tank will still remain in the tank. Therefore, the shape of the sprayed raw material mist can be repeatedly filled and changed by changing the valve actuator. This machine has fast speed, precise filling capacity, good sealing airtightness, and the inflation pressure can be adjusted to the desired pressure at will.
Technical Parameter:
Filling capacity (cans/min)
10-15 cans/min
Liquid filling volume (ml)
30-650ml
Gas filling accuracy
±0.03Mpa
Liquid filling accuracy
≤±1%
Applicable cans diameter (mm)
35-70 ( can be customized)
Applicable cans height (mm)
70-330 ( can be customized)
Applicable valve (mm)
25.4 (1 inch)
Propellant
N2, compressed air
Max gas consumption (m3/min)
1m3/min
Power (KW)
AC 220V/50HZ
Air source
0.6-0.7Mpa
Dimensions
1200×650×1670 mm
Weight
255 kg

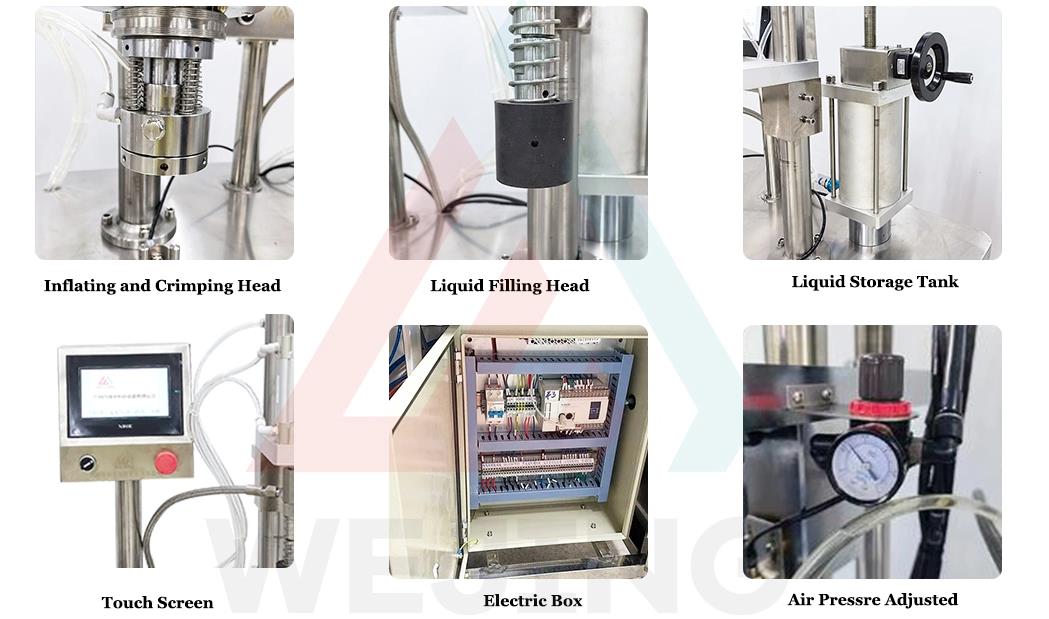

Detailed Images:

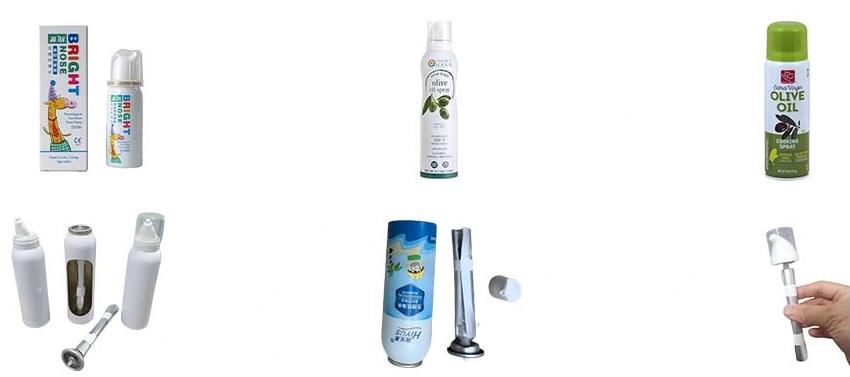

Applications:
1. Beauty & Grooming: Ideal for packaging hair sprays, deodorants, body mists, and assorted cosmetics that rely on consistent atomization and exact dosage accuracy.
2. Home Care Solutions: Catering to the production of air fresheners, cleaning agents, pest control products, and other household essentials demanding precise dispensation and dependable functionality.
3. Pharmaceutical Applications: Vital in the packaging of metered-dose inhalers, topical pharmaceuticals, and medical device sanitizers, where precision dosing and absolute sterility reign supreme.

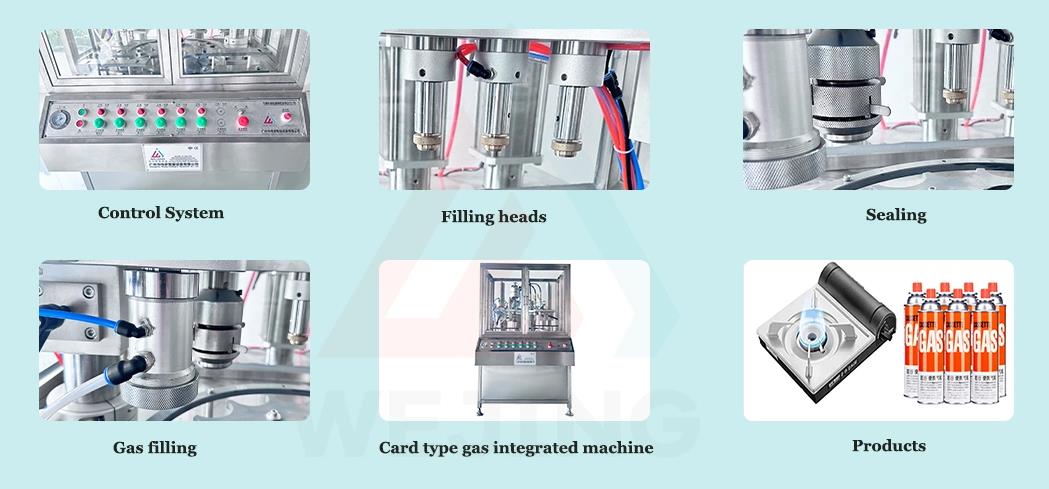

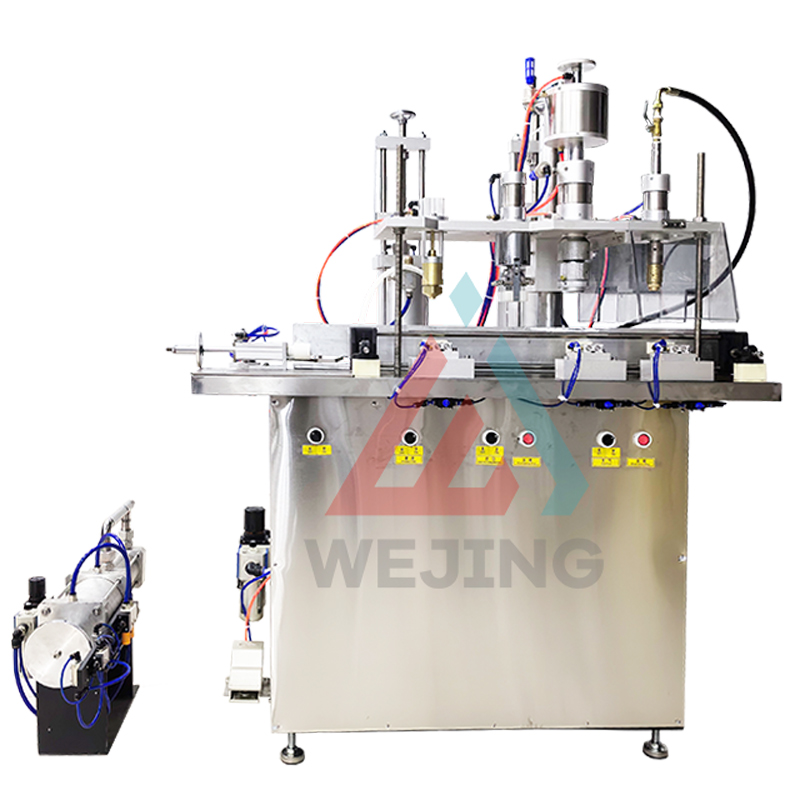

Fully Automatic Cartridge Gas Aerosol Filling Machine
Discription:
The Automatic Aerosol Filling Machine Production Line has a capacity of 100-120 cans per hour. It's a high-performance solution for manufacturers and suppliers requiring efficient aerosol filling. The fully automatic system includes a filling machine and a quality control machine, ensuring precise filling, sealing and packaging of aerosol cans. This machine can make deodorant spray, air freshener, lubrication spray, cleaner spray, etc. With its advanced technology and reliable performance, this production line simplifies the manufacturing process, boosts productivity and cuts labor costs. Rely on this automatic aerosol filling machine production line to provide outstanding results and meet your production needs effectively.
