Product Advantage:
1. Production Boost: Full automatic aerosol filling machines, with their rapid operation, notably escalate production capacity in comparison to manual or semi-automatic contemporaries.
2. Precision Filling Control: The employment of sophisticated automation in these machines guarantees exact fill quantities per can, curtailing wastage and assuring batch-to-batch consistency, thereby elevating product excellence.
3. Optimized Workforce Utilization: Automation drastically cuts manual labor requirements, leading to reduced operational expenses and enabling the redeployment of staff to more specialized roles, all contributing to a more streamlined efficiency.
4. Enhanced Safety Protocols: Designed to encapsulate hazardous operations and materials, these machines significantly minimize operator exposure risks and conform to rigorous safety standards set by industry regulations.
5. Adaptability and Expansion Readiness: Offering compatibility with a range of can dimensions and product varieties, full automatic aerosol filling systems readily adapt to evolving market dynamics. Moreover, their upgradable nature ensures your production line remains equipped for future challenges.
Technical Parameters:
Technical Parameter | Description |
Filling capacity (cans/min) | 60-70 |
Liquid filling volume (ml) | 10-1200( can be customized) |
Gas filling volume (ml) | 10-1200( can be customized) |
Filling heads | 4 heads |
Filling accuracy | ≤±1% |
Applicable cans diameter (mm) | 35 - 70( can be customized) |
Applicable cans height (mm) | 80 - 300( can be customized) |
Applicable valve | 1 inch |
Working pressure (Mpa) | 0.6 - 0.8 |
Max gas consumption (m3/min) | 5 |
Power (KW) | 7.5 |
Dimension (LWH) mm | 22000*3500*2000 |
Material | SS304 ( some parts can be SS316) |
Warranty | 1 year |
Key Selling Points | High speed fully automatic high production |
Maintenance Requirements | Recommended maintenance procedures and schedules |
Certifications and Standards | CE&ISO9001 |

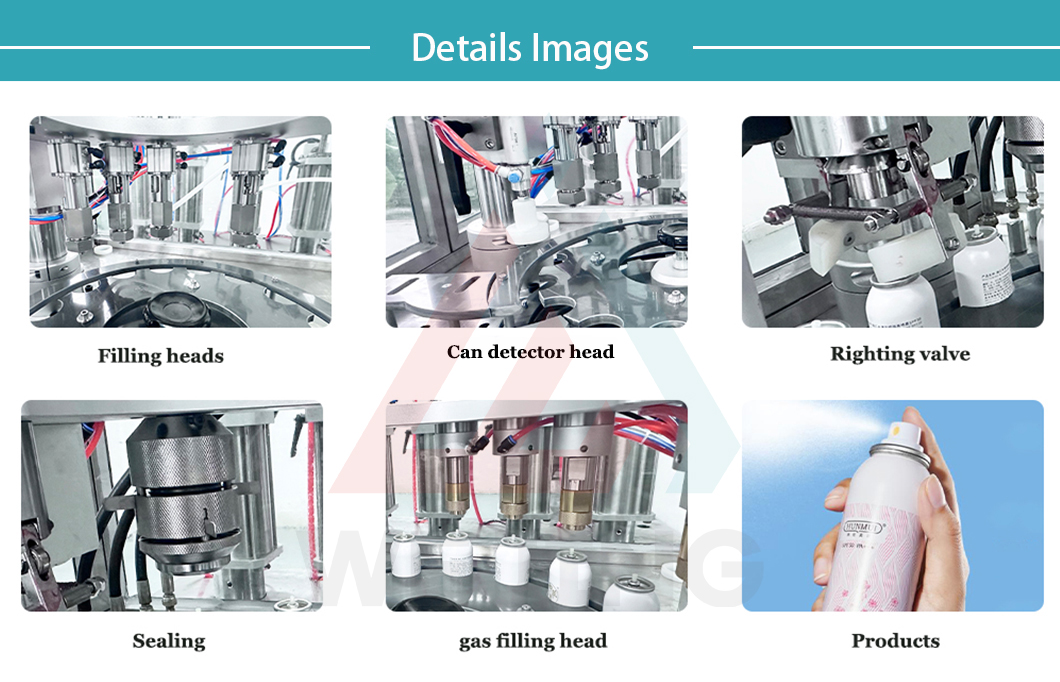

Detailed Images:
Product Operate Guide:
1. Pre-Start Checklist: Prior to activation, confirm that all sections are pristine, lubricated, and correctly aligned. Check material reservoirs and carry out a thorough visual examination of the machinery.
2. Configuration & Calibration: Use the Human-Machine Interface (HMI) to enter the precise filling details—volume, pressure settings, and conveyor pace—tailored to your product specifications.
3. Loading Process: Gently place cans onto the feed mechanism, taking care they’re correctly aligned and undamaged. If necessary, secure lids firmly before the filling stage.
4. Commence Production Cycle: Activate the machine by pressing the start button on the control panel; it will then autonomously execute the filling, sealing, and gas injection steps in a predetermined sequence.
5. Ongoing Quality Assurance & Surveillance: Routinely inspect finished aerosols for leakages, consistent weight, and secure crimping. Supervise the machine’s functioning continuously and leverage instant data analysis to make necessary tweaks.
FAQ:
1. Maintenance Frequency Inquiry:
Daily upkeep such as cleaning and component inspections is advised. Arrange for extensive maintenance audits either monthly or per the manufacturer's guidance.
2. Capacity for Varying Can Dimensions:
Absolutely, full automatic aerosol filling systems are engineered to be adaptable, catering to an array of can sizes in diameter and height, promoting flexible manufacturing capabilities.
3. Procedure for Formula Switch:
To change formulations, fully drain and cleanse the machinery, followed by readjusting filling parameters on the control panel to align with the new product specs.
4. Accuracy in Filling Mechanism:
The machine employs accurate pumps and sensors to gauge and manage fill volumes, backed by a responsive feedback loop that instantly rectifies any discrepancies.
5. Availability of Operational Training:
Indeed, most manufacturers offer on-premises training sessions for both operators and maintenance personnel to guarantee the safe and proficient operation of the equipment.
